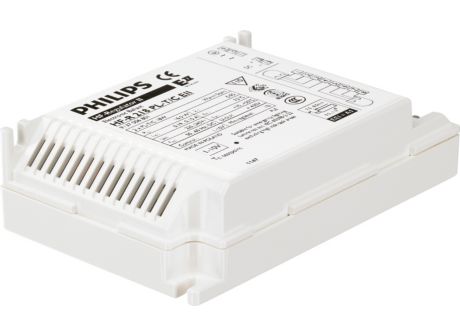

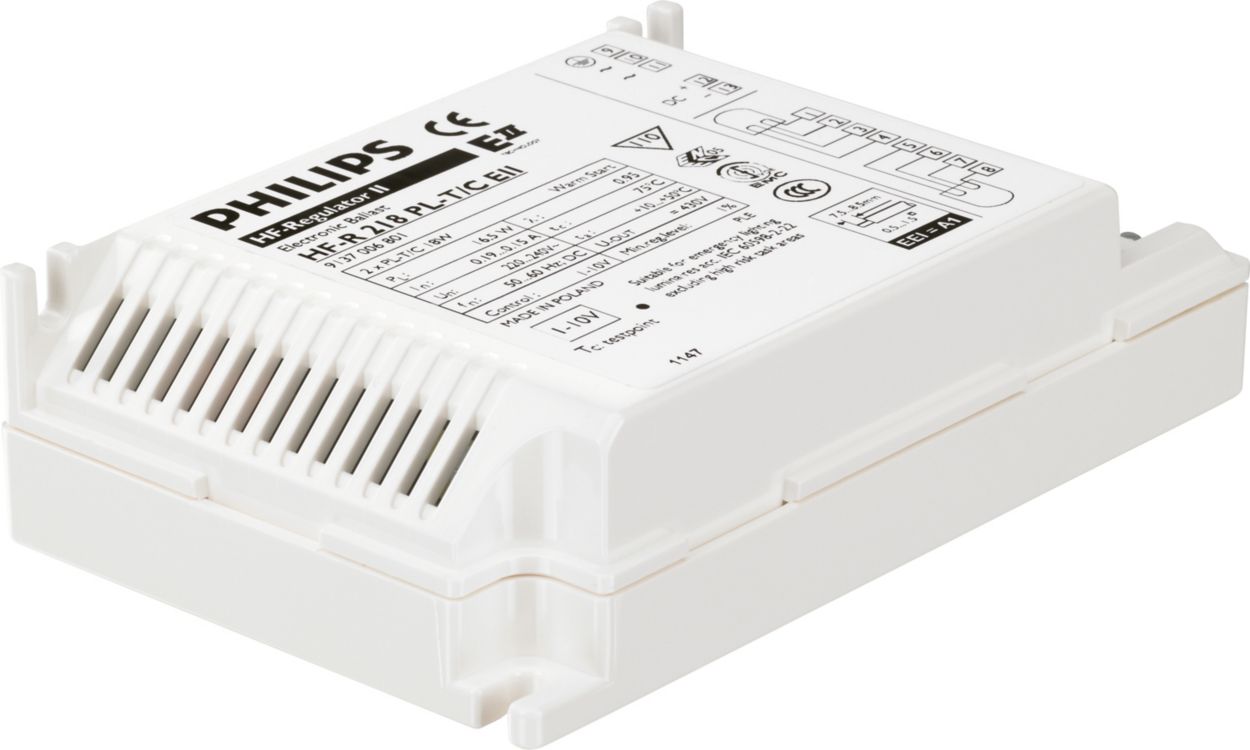

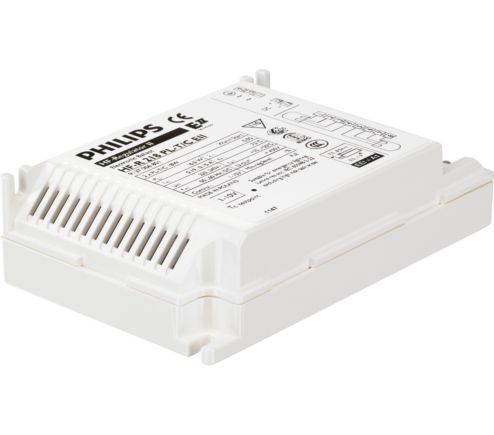

HF-Regulator II for PL-T/C

HF-R 218 PL-T/C EII 220-240V 50/60Hz

HF-R 218 PL-T/C EII 220-240V 50/60Hz

  • Product Description:

    Product information

    Downloads

    Leaflet
    Size:135.3 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Characteristics
Interface
1-10V
Application code
EII
Rated Lamptype
PL-T/C
Rated Number of Lamps
2 piece
Rated Ballast-Lamp Power
18
Line Voltage
220-240 V
Line Frequency
50/60 Hz
Housing
S 123x79x33
Energy Efficiency Index
A1
Lifetime 80% surv.@Tcaselife
hr
Lifetime 90% surv.@Tcaselife
50000 hr
Ignition Method
Programmed Start
Operating Characteristics
Automatic restart
Yes
Operating frequency
40 (min), 100 (max) kHz
Mains voltage safety (AC)
-10%/+10%
Mains voltage performance (AC)
-8%/+6%
Inrush current Peak
28 (max) A
Inrush current Width
0.35 ms
Earth leakage current
0.5 (max) mA
Constant wattage deviation
-2%/+2%
Regulating level power
1%-100%
Ballast Lumen Factor
1.0 -
PowerFactor 100% output power
0.95 -
Battery voltage lamp ignition
198-254 V
Battery voltage running lamps
176-254
Overvoltage protection 320Vac
48 hr
Overvoltage protection 350Vac
2 hr
Control input protection
Yes (Basic insulation)
Max ballast on MCB(16A type B)
28 x
Stable lamp operation temp.
-  [Not specified]
Crestfactor
1.7 (max) -
Hum and Noise level
Inaudible
Total Harmonic Distortion USA
%
Wiring Characteristics
Cable-Cap outputwires to earth
75 pF
Cable-Cap outputwires mutual
30 pF
Conn.type input terminals
Insert
Conn.type output terminals
Insert
Conn.type ctrl input terminals
Insert
Striplength
7.5-8.5 mm
Dual fixture Master/Slave
Not applicable  [Master/Slave oper. not applicable]
Wcs Control input terminals
0.50-1.50 mm2
Wcs Input terminals
0.50-1.50 mm2
Wcs Output terminals
0.50-1.50 mm2
Temperature Characteristics
T-case life
65 C
T-case maximum
75 (max) C
T-ambient
-20 (min), 50 (max) C
T-storage
-25 (min), 80 (max) C
Product Dimensions
Length A1
123.0 mm
Fixing Hole Distance Length A2
111.0 mm
Width B1
79.0 mm
Fixing Hole Distance Width B2
67.0 mm
Height C1
33.0 mm
Fixing Hole Diameter D1
4.5 mm
Approval & Application Chars
EMI 9kHz .. 30 MHz
EN 55015
EMI 30 MHz .. 1000MHz
EN 55022 level B  [Level = Class]
Safety Standard
IEC 61347-2-3
Performance Standard
IEC 60929
Quality Standard
ISO 9000:2000
Environmental Standard
ISO 14001
Harmonic current emissions
IEC 61000-3-2
EMC Immunity
IEC 61547
Vibrations
IEC 68-2-6 Fc
Bumps
IEC 68-2-29 Eb
Humidity
EN 61347-2-3 clause 11
Approval marks
ENEC / VDE-EMV
CE marking
Yes
Temperature marking
-  [Not specified]
Emergency standard
IEC 60598-2-22
Product Data
Order code
176985 00
Full product code
871829117698500
Full product name
HF-R 218 PL-T/C EII 220-240V 50/60Hz
Order product name
HF-R 218 PL-T/C EII 220-240V 50/60Hz
Pieces per pack
1
Packing configuration
12
Packs per outerbox
12
Bar code on pack - EAN1
8718291176985
Bar code on outerbox - EAN3
8718291176992
Logistic code(s) - 12NC
913700680166
Net weight per piece
0.230 kg
Successor order code
Installation Diagrams
HF-R 218 PL-T/C EII 220-240V 50/60Hz
Performance Diagrams
