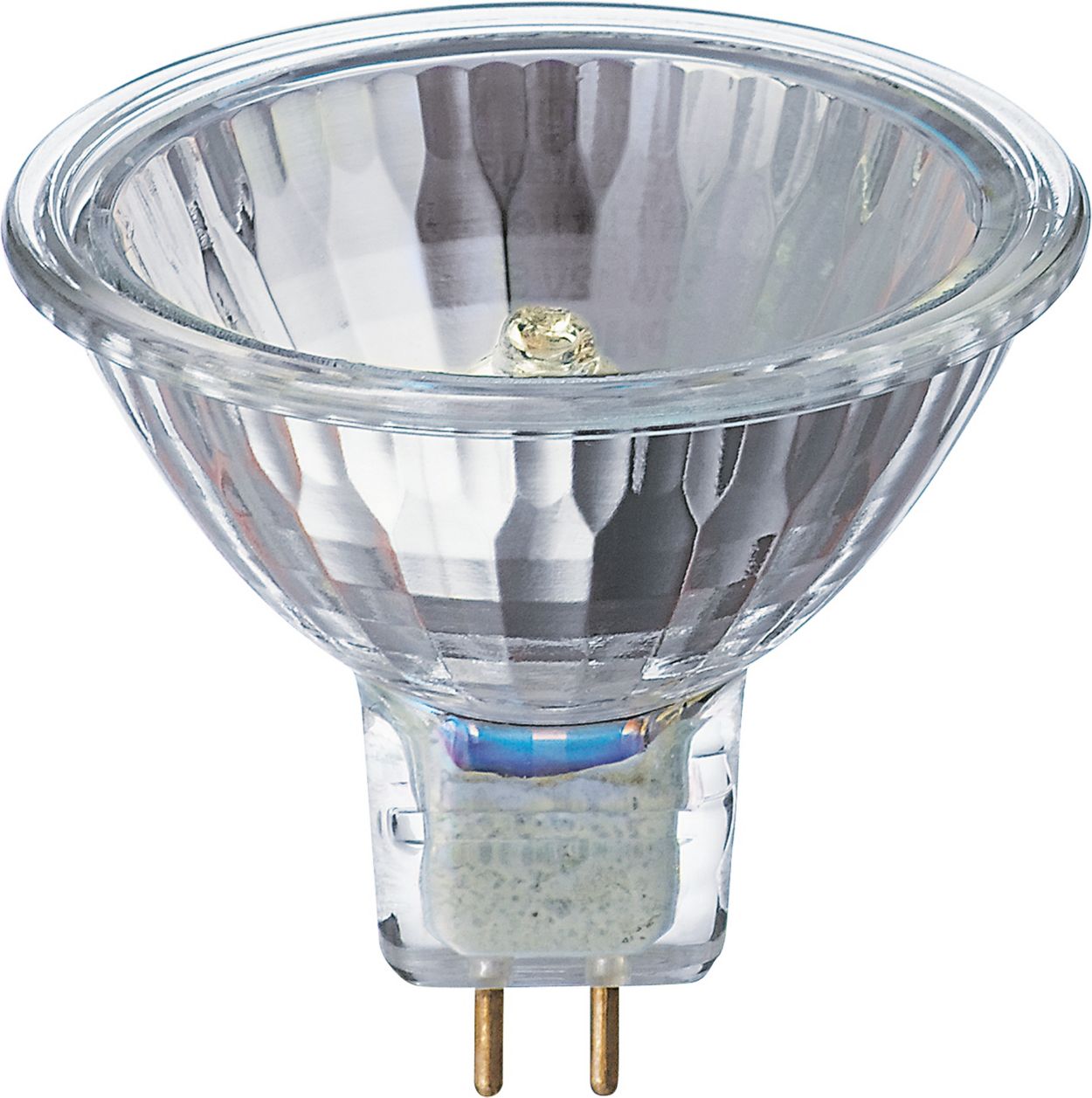

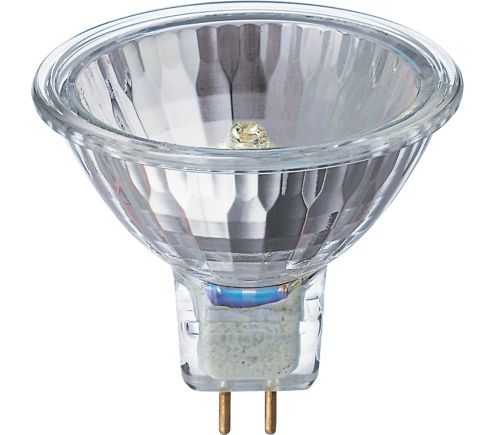

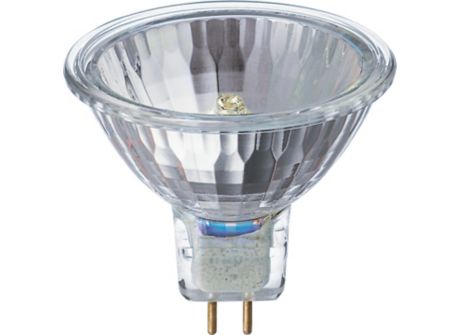

MASTERLine ES 45W GU5.3 12V 60D 1CT/4X5F

  • Highly energy-efficient spot of crisp white light

    MASTERLine ES 45W GU5.3 12V 60D 1CT/4X5F

    MASTERLine ES 45W GU5.3 12V 60D 1CT/4X5F

    Full Product Code: 871150042447171

    Order code: 42447171

    Downloads

    Leaflet
    Size:837.3 kB

    See all downloads

Videos

[trigger to render Video Gallery]

Images

Specifications Show all

General Information
Cap base
GU5.3  [ GU5.3]
Philips code
18145
Operating position
UNIVERSAL  [ Any or Universal (U)]
ANSI code halogen
na  [ not applicable]
Nominal lifetime (nom.)
5000 h
Switching cycle
20000X
Light Technical
Beam Angle (Nom)
60 °
Luminous flux (rated) (nom.)
830 lm
Luminous intensity (max.)
1300 cd
Rated beam angle
60 °
Correlated colour temperature (nom.)
3000 K
Color rendering index (nom.)
100
LLMF at end of nominal lifetime (min.)
80 %
Luminous Flux In 90° Cone (Rated)
830 lm
Operating and Electrical
Power (Rated) (Nom)
45.0 W
Lamp current (nom.)
3.75 A
Wattage equivalent
68 W
Starting time (nom.)
0.0 s
Warm-up time to 60% light (nom.)
instant full light
Power factor (nom.)
1
Voltage (Nom)
12 V
Controls and Dimming
Dimmable
Yes
Approval and Application
Energy efficiency label (EEL)
B
Energy Consumption kWh/1000 h
48 kWh
Luminaire Design Requirements
Bulb temperature (max.)
410 °C
Cap base temperature (max.)
410 °C
Product Data
Full product code
871150042447171
Order product name
MASTERLine ES 45W GU5.3 12V 60D 1CT/4X5F
EAN/UPC – product
8711500424471
Order code
42447171
Numerator – quantity per pack
1
Numerator – packs per outer box
20
Material no. (12NC)
924896217101
Net weight (piece)
30.000 g
ILCOS Code
HRGS-45-12-GU5.3-50/60

Eco passport - Our environmental product specifications overview

Philips cares about the environment and society at large, and strongly supports eco-design of products.

Installation Diagrams
GU5.3
GU5.3
