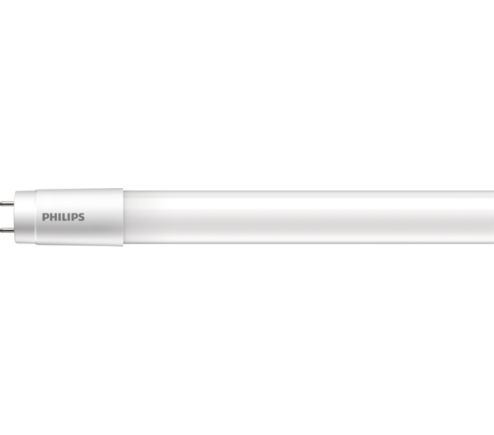

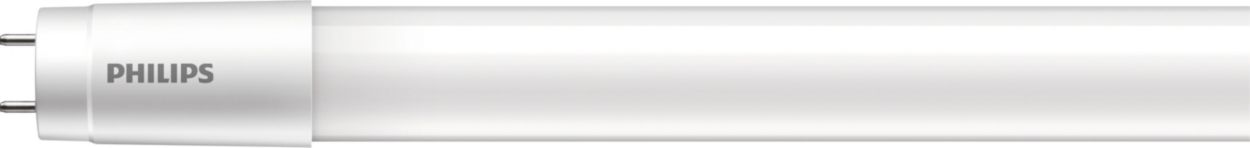

      CorePro LEDtube 1500mm 20W 840 C G
      LED
      CorePro LEDtube 1500mm 20W 840 C G

      CorePro LEDtube 1500mm 20W 840 C G

      Order code: 56608400

      Full Product Code: 871869656608400

      Downloads

      Data sheet
      Size:440.9 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G13  [ Medium Bi-Pin Fluorescent]
    Main application
    Industrial
    Nominal lifetime (nom.)
    30000 h
    Switching cycle
    200000X
    B50L70
    30000 h
    Light Technical
    Colour code
    841  [ CCT of 4100K (841)]
    Beam Angle (Nom)
    240 °
    Luminous flux (nom.)
    2000 lm
    Luminous flux (rated) (nom.)
    2000 lm
    Rated beam angle
    240 °
    Correlated colour temperature (nom.)
    4000 K
    Colour consistency
    <6
    Color rendering index (nom.)
    80
    LLMF at end of nominal lifetime (nom.)
    70 %
    Operating and Electrical
    Input frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    20 W
    Lamp current (max.)
    92 mA
    Lamp current (min.)
    81 mA
    Wattage equivalent
    58 W
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    instant full light s
    Power factor (nom.)
    0.9
    Voltage (Nom)
    220-240 V
    Temperature
    T ambient (max.)
    45 °C
    T ambient (min.)
    -20 °C
    T storage (max.)
    65 °C
    T storage (min.)
    -40 °C
    T-Case maximum (nom.)
    65 °C
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Product length
    1500 mm
    Approval and Application
    Energy-saving product
    Yes
    Suitable for accent lighting
    No
    Energy efficiency label (EEL)
    A+
    Approval marks
    CE marking
    RoHS compliance
    KEMA Keur certificate
    Energy Consumption kWh/1000 h
    20 kWh
    Product Data
    Full product code
    871869656608400
    Order product name
    CorePro LEDtube 1500mm 20W 840 C G
    EAN/UPC – product
    8718696566084
    Order code
    56608400
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    929001221402
    Net weight (piece)
    0.275 kg
