    • The new generation of energy saving tube lighting

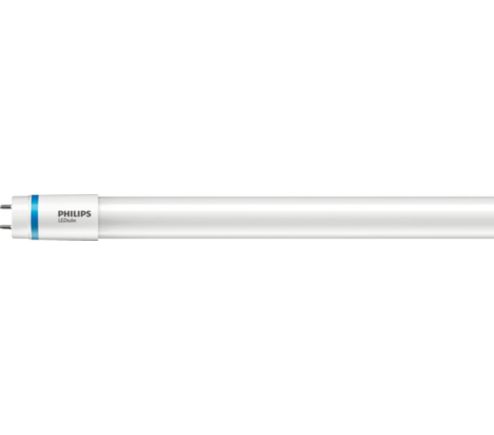

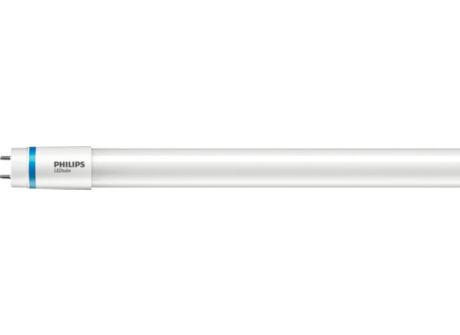

      MAS LEDtube STD 1200mm 20W830 T8 I
      LED
      MAS LEDtube STD 1200mm 20W830 T8 I

      MAS LEDtube STD 1200mm 20W830 T8 I

      Order code: 73480200

      Full Product Code: 871829173480200

      Downloads

      Data sheet
      Size:156.6 kB

      See all downloads

    Videos

    [trigger to render Video Gallery]

    Images

    Specifications Show all

    General Information
    Cap base
    G13  [ Medium Bi-Pin Fluorescent]
    Main application
    Industrial
    Nominal lifetime (nom.)
    40000 h
    Switching cycle
    50000X
    B50L70
    40000 h
    Light Technical
    Colour code
    830  [ CCT of 3000K]
    Beam Angle (Nom)
    150 °
    Luminous flux (nom.)
    2000 lm
    Luminous flux (rated) (nom.)
    2000 lm
    Rated beam angle
    150 °
    Correlated colour temperature (nom.)
    3000 K
    Colour consistency
    <6
    Color rendering index (nom.)
    83
    LLMF at end of nominal lifetime (nom.)
    70 %
    Operating and Electrical
    Input frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    20 W
    Lamp current (nom.)
    83 mA
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    instant full light s
    Power factor (nom.)
    0.9
    Voltage (Nom)
    100-240 V
    Temperature
    T ambient (max.)
    45 °C
    T ambient (min.)
    -20 °C
    T storage (max.)
    65 °C
    T storage (min.)
    -40 °C
    T-Case maximum (nom.)
    55 °C
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Product length
    1200 mm
    Approval and Application
    Energy-saving product
    Yes
    Suitable for accent lighting
    No
    Energy efficiency label (EEL)
    A+
    Approval marks
    CE marking
    RoHS compliance
    KEMA Keur certificate
    Energy Consumption kWh/1000 h
    20 kWh
    Product Data
    Full product code
    871829173480200
    Order product name
    MAS LEDtube STD 1200mm 20W830 T8 I
    EAN/UPC – product
    8718291734802
    Order code
    73480200
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    929000286308
    Net weight (piece)
    0.331 kg
    Installation Diagrams
    G13
    G13
