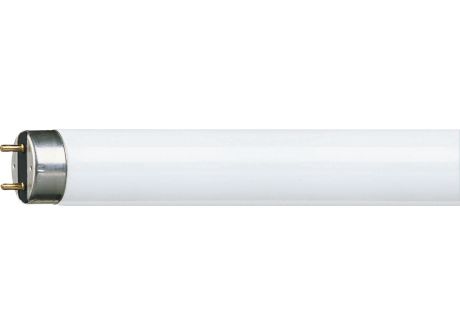

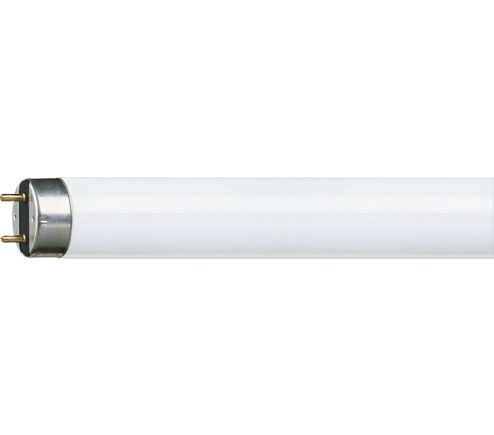

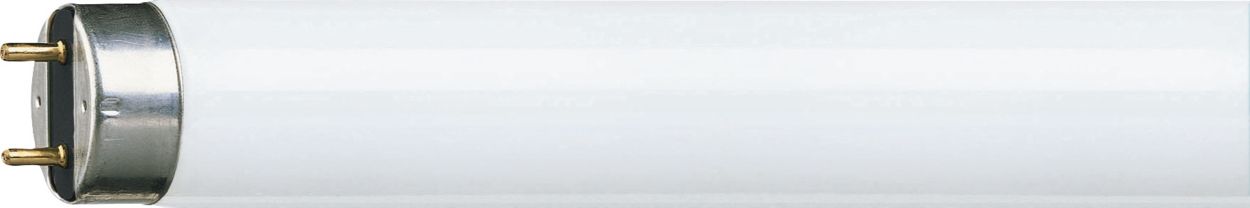

MASTER TL-D Super 80 18W/835 1SL/25

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Life to 10% failures (nom.)	12000 h
Life to 50% failures (nom.)	15000 h
Life to 50% failures preheat (nom.)	20000 h
LSF 2000 h Rated	99 %
LSF 4000 h Rated	99 %
LSF 6000 h Rated	99 %
LSF 8000 h Rated	99 %
LSF 12000 h Rated	89 %
LSF 16000 h Rated	33 %
LSF 20000 h Rated	2 %

Light Technical

Colour code	835  [ CCT of 3500K]
Luminous flux (nom.)	1350 lm
Luminous flux (rated) (nom.)	1350 lm
Colour designation	White (WH)
Correlated colour temperature (nom.)	3500 K
Luminous efficacy (rated) (nom.)	75 lm/W
Color rendering index (nom.)	85
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	95 %
LLMF 6000 h Rated	94 %
LLMF 8000 h Rated	93 %
LLMF 12000 h Rated	92 %
LLMF 16000 h Rated	91 %
LLMF 20000 h Rated	90 %

Operating and Electrical

Power (Rated) (Nom)	18.0 W
Lamp current (nom.)	0.360 A

Temperature

Design temperature (nom.)

25 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Mercury (Hg) content (nom.)	2.0 mg
Energy Consumption kWh/1000 h	22 kWh

Product Data

Full product code	871150063168840
Order product name	MASTER TL-D Super 80 18W/835 1SL/25
EAN/UPC – product	8711500631688
Order code	63168840
Numerator – quantity per pack	1
Numerator – packs per outer box	25
Material no. (12NC)	927920083523
Net weight (piece)	71.000 g
ILCOS Code	FD-18/35/1B-E-G13
