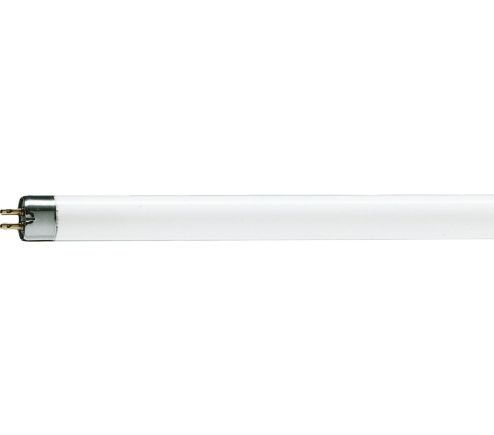

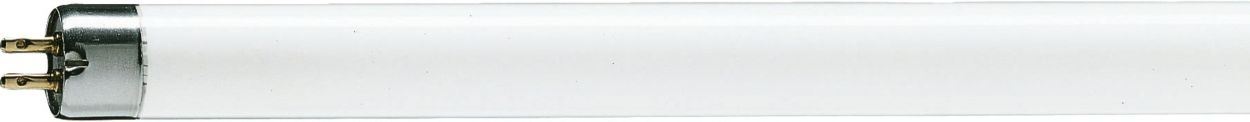

MASTER TL Mini Super 80 8W/830 1FM/10X25CC

Specifications Show all

General Information

Cap base	G5  [ G5]
Life to 10% failures (nom.)	5000 h
Life to 50% failures (nom.)	10000 h
Life to 50% failures preheat (nom.)	10000 h

Light Technical

Colour code	830  [ CCT of 3000K]
Luminous flux (nom.)	470 lm
Colour designation	Warm White (WW)
Lumen maintenance 10,000 hours (nom.)	71 %
Lumen maintenance 2,000 hours (nom.)	85 %
Lumen maintenance 5,000 hours (nom.)	77 %
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	59 lm/W
Color rendering index (nom.)	85

Operating and Electrical

Power (Rated) (Nom)	7.1 W
Lamp current (nom.)	0.145 A
Voltage (Nom)	56 V

Controls and Dimming

Dimmable

Yes

Approval and Application

Mercury (Hg) content (nom.)	3.0 mg
Energy Consumption kWh/1000 h	8 kWh

Product Data

Full product code	871150071638527
Order product name	MASTER TL Mini Super 80 8W/830 FAM/10X25BOX
EAN/UPC – product	8711500716385
Order code	71638527
Numerator – quantity per pack	1
Numerator – packs per outer box	250
Material no. (12NC)	928001008350
Net weight (piece)	27.000 g
ILCOS Code	FD-8/30/1B-E-G5
