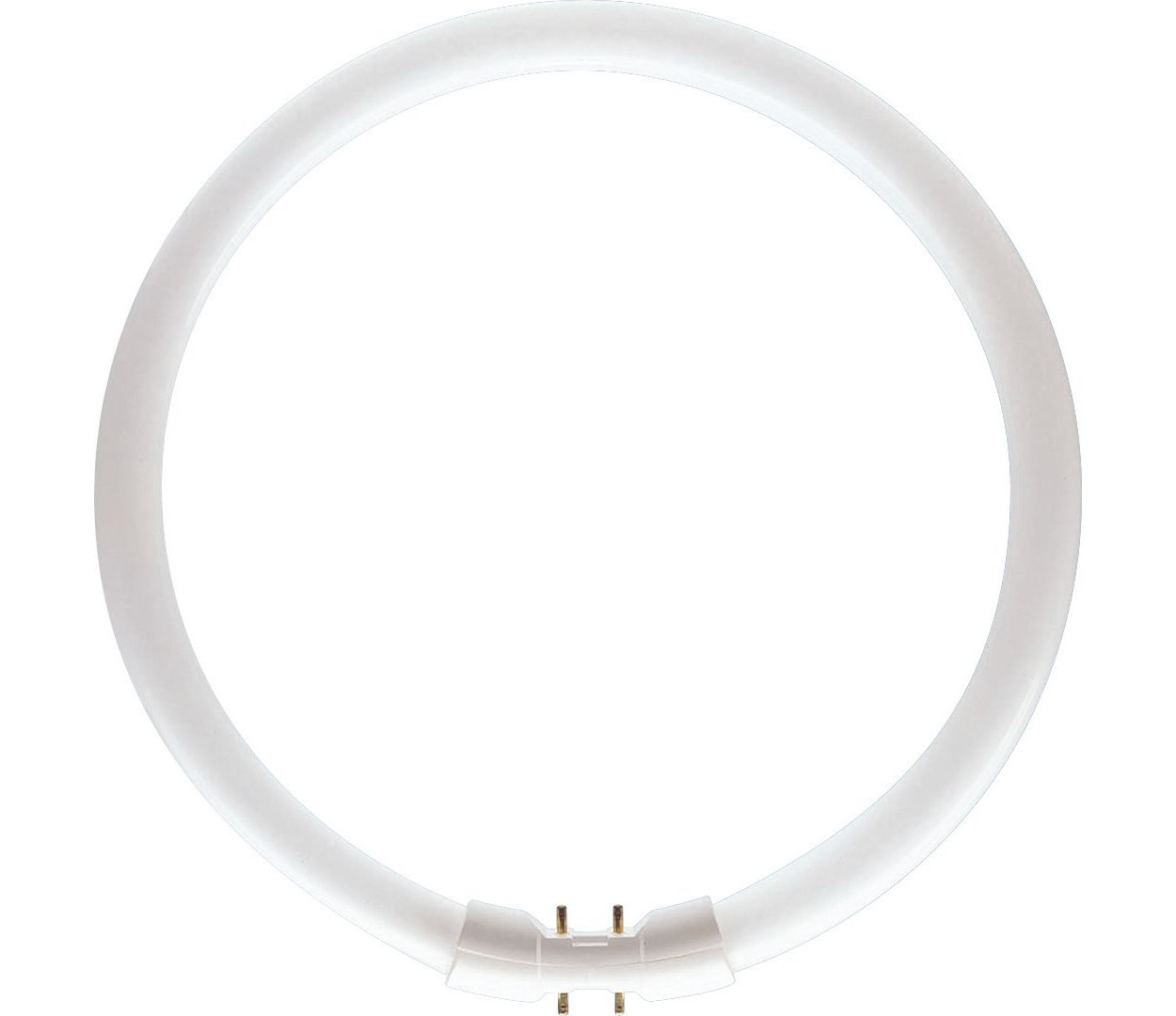

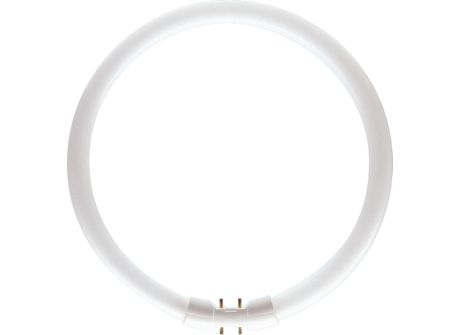

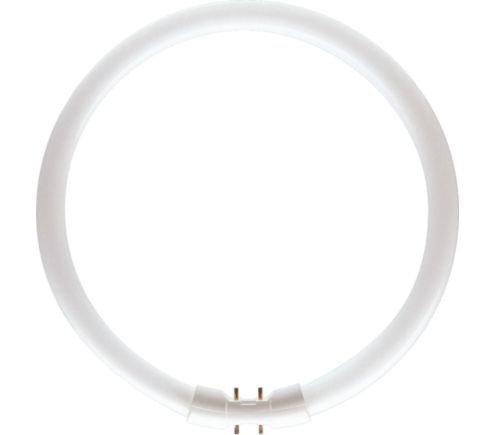

MASTER TL5 CIRCULAR 55W/840 1CT/10

Specifications Show all

General Information

Cap base	2GX13  [ 2GX13]
Life to 50% failures preheat (nom.)	12000 h
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	99 %
LSF Preheat 6000 h Rated	96 %
LSF Preheat 8000 h Rated	89 %
LSF Preheat 16000 h Rated	10 %
LSF Preheat 20000 h Rated	1 %

Light Technical

Colour code	841  [ CCT of 4100K]
Luminous flux (nom.)	4200 lm
Luminous flux (rated) (nom.)	4200 lm
Colour designation	Cool White (CW)
Correlated colour temperature (nom.)	4100 K
Luminous efficacy (rated) (nom.)	76 lm/W
Color rendering index (max.)	85
Color rendering index (min.)	80
Color rendering index (nom.)	85
LLMF 2000 h Rated	91 %
LLMF 4000 h Rated	87 %
LLMF 6000 h Rated	84 %
LLMF 8000 h Rated	81 %
LLMF 12000 h Rated	77 %
LLMF 16000 h Rated	74 %
LLMF 20000 h Rated	72 %

Operating and Electrical

Power (Rated) (Nom)	55.0 W
Lamp current (nom.)	0.550 A

Temperature

Design temperature (nom.)

35 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Mercury (Hg) content (nom.)	2.5 mg
Energy Consumption kWh/1000 h	61 kWh

Product Data

Full product code	871150064251625
Order product name	MASTER TL5 Circular 55W/840 1CT/10
EAN/UPC – product	8711500642516
Order code	64251625
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	927965784013
Net weight (piece)	111.000 g
ILCOS Code	FSCH-55/40/1B-L/P-2GX13-16
