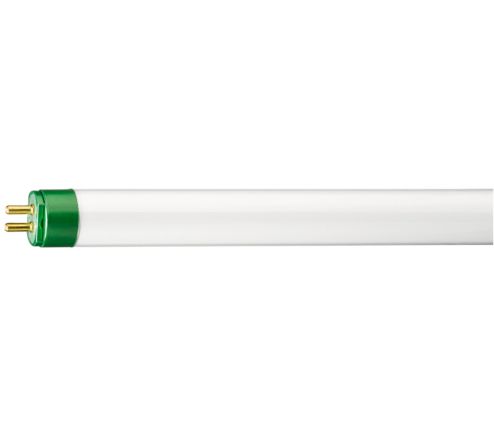

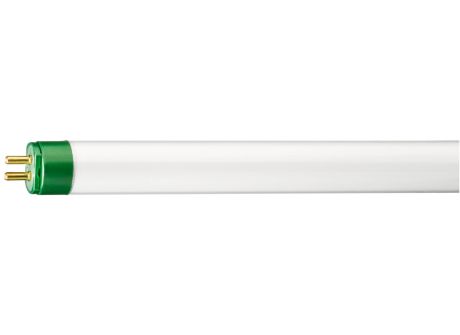

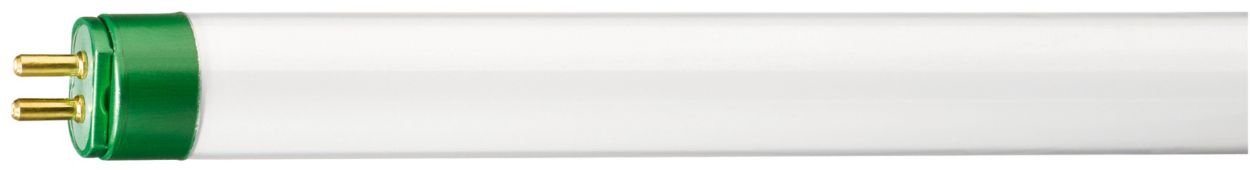

MASTER TL5 HE Eco 25=28W/830 UNP/40

Specifications Show all

General Information

Cap base	G5  [ G5]
Life to 50% failures preheat (nom.)	25000 h
Features	na  [ Not Applicable]
LSF Preheat 2000 h Rated	99 %
LSF Preheat 4000 h Rated	99 %
LSF Preheat 6000 h Rated	99 %
LSF Preheat 8000 h Rated	99 %
LSF Preheat 16000 h Rated	99 %
LSF Preheat 20000 h Rated	94 %

Light Technical

Colour code	830  [ CCT of 3000K]
Luminous flux (nom.)	2900 lm
Luminous flux (rated) (nom.)	2600 lm
Colour designation	Warm White (WW)
Luminous efficacy (@ max. lumen, rated) (nom.)	114 lm/W
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	103 lm/W
Color rendering index (max.)	85
Color rendering index (min.)	80
Color rendering index (nom.)	82
LLMF 2000 h Rated	96 %
LLMF 4000 h Rated	95 %
LLMF 6000 h Rated	94 %
LLMF 8000 h Rated	93 %
LLMF 12000 h Rated	92 %
LLMF 16000 h Rated	91 %
LLMF 20000 h Rated	90 %

Operating and Electrical

Power (Rated) (Nom)	25.2 W
Lamp current (nom.)	0.170 A

Temperature

Design temperature (nom.)

35 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Mercury (Hg) content (nom.)	1.4 mg
Energy Consumption kWh/1000 h	28 kWh

Product Data

Full product code	872790082588600
Order product name	MASTER TL5 HE Eco 25=28W/830 UNP/40
EAN/UPC – product	8711500880000
Order code	82588600
Numerator – quantity per pack	1
Numerator – packs per outer box	40
Material no. (12NC)	927990983031
Net weight (piece)	105.800 g
ILCOS Code	FDH-25/30/1B-L/P-G5-16/1150
