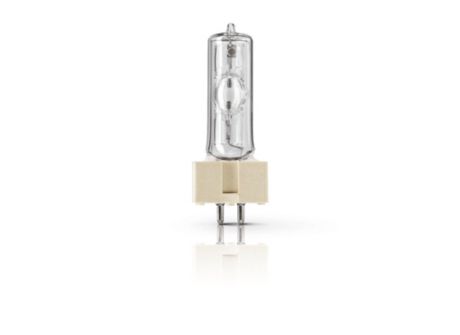

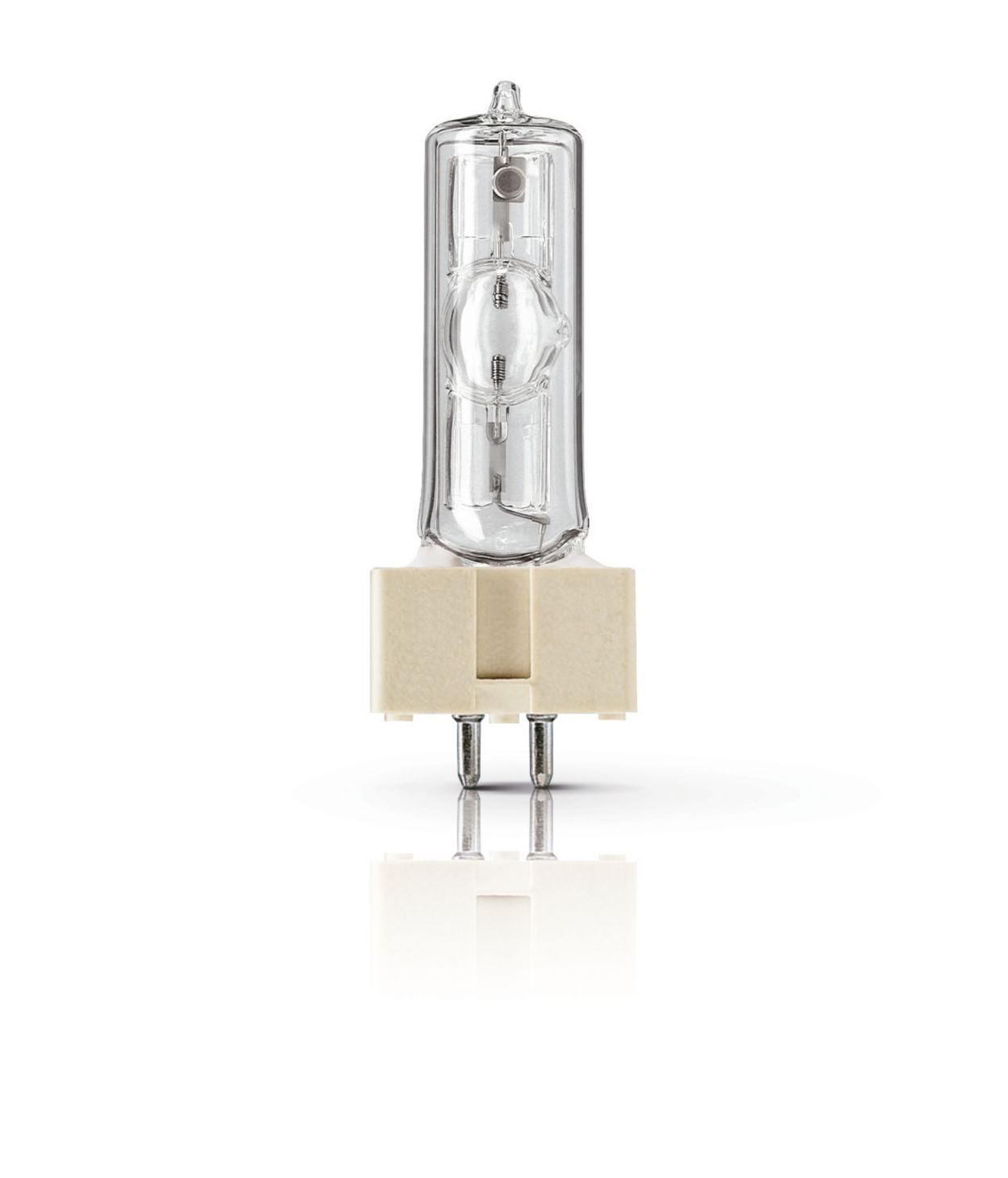

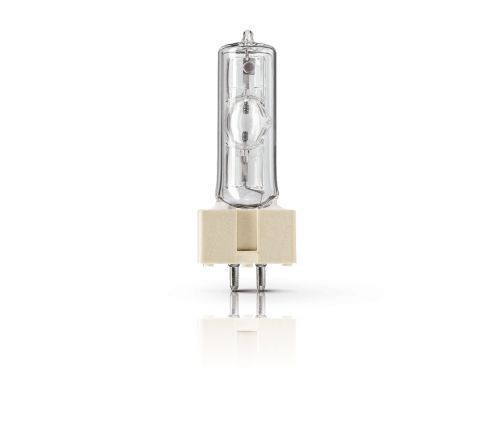

MSD 575 1CT/16

Specifications Show all

General Information

Cap base	GX9.5  [ GX9.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	3000 h
System description	na  [ -]

Light Technical

Colour code	-  [ Not Specified]
Luminous flux (min.)	36000 lm
Luminous flux (nom.)	43000 lm
Chromaticity coordinate X (nom.)	323
Chromaticity coordinate Y (nom.)	328
Correlated colour temperature (nom.)	6000 K
Luminous efficacy (rated) (nom.)	75 lm/W
Color rendering index (nom.)	75

Operating and Electrical

Power (Rated) (Nom)	575 W
Lamp current (nom.)	6.95 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

na  [ -]

Luminaire Design Requirements

Bulb temperature (max.)	600 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	872790091755000
Order product name	MSD 575 1CT/16
EAN/UPC – product	8727900917550
Order code	91755000
Numerator – quantity per pack	1
Numerator – packs per outer box	16
Material no. (12NC)	928098805114
Net weight (piece)	0.062 kg
