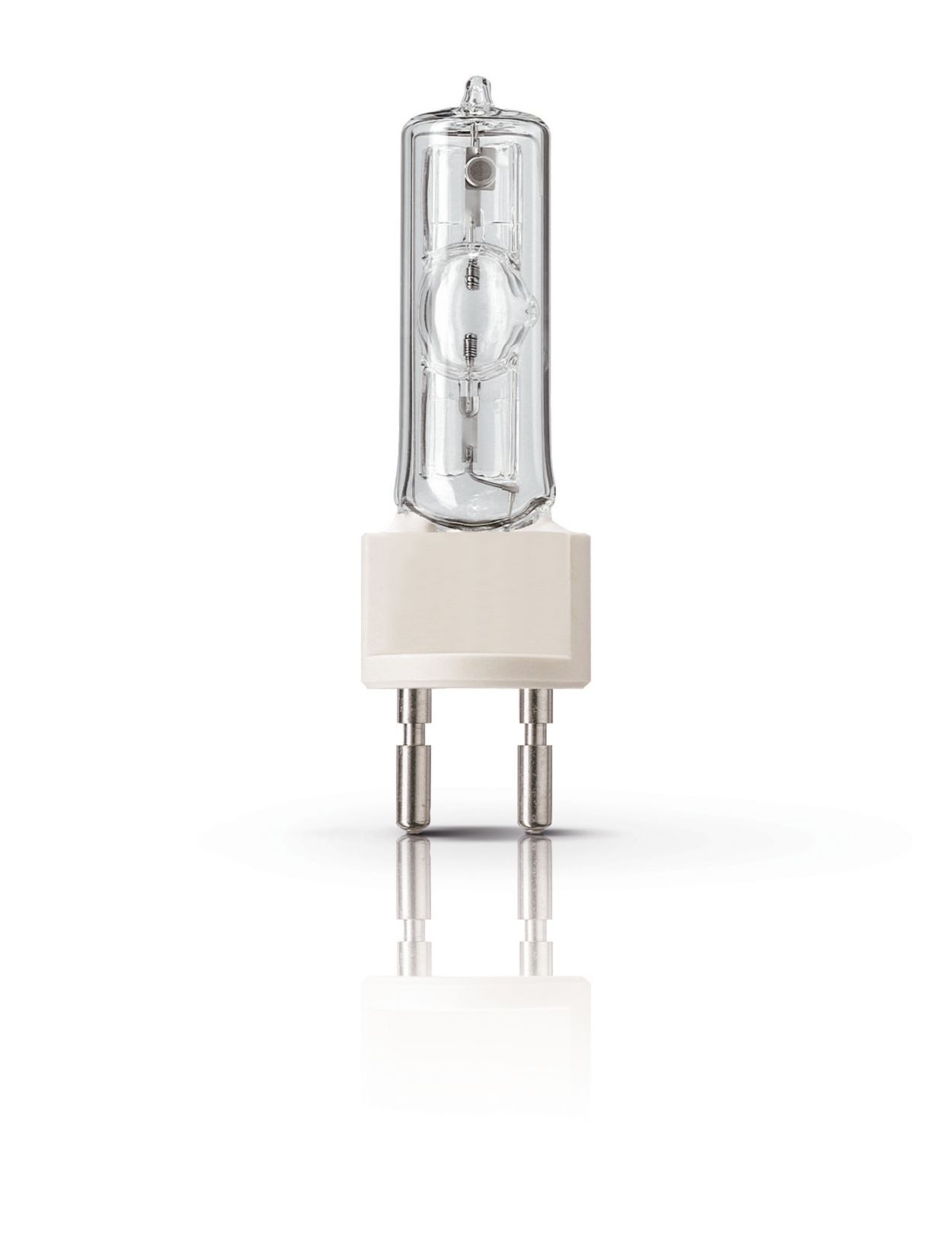

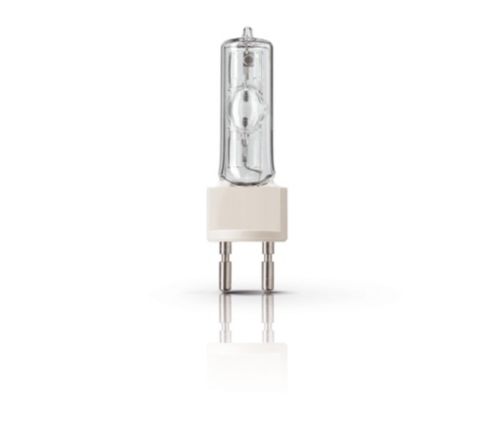

MSD 575 HR 1CT/8

Specifications Show all

General information

Cap-Base	G22  [ G22]
Operating Position	UNIVERSAL  [ Any or Universal (U)]
Main Application	Studio/Disco
Life to 50% Failures (Nom)	2000 h
System Description	Hot Restrike

Light technical

Color Code	-  [ Not Specified]
Luminous Flux (Nom)	47000 lm
Chromaticity Coordinate X (Nom)	328
Chromaticity Coordinate Y (Nom)	331
Correlated Color Temperature (Nom)	6000 K
Luminous Efficacy (rated) (Nom)	81 lm/W
Color Rendering Index (Nom)	75

Operating and electrical

Power (Nom)	575 W
Lamp Current (Nom)	6.95 A
Ignition Supply Voltage (Min)	207 V

Controls and dimming

Dimmable

No

Mechanical and housing

Cap-Base Information

20 mm

Luminaire design requirements

Bulb Temperature (Max)	600 °C
Pinch Temperature (Max)	350 °C
Pinch Temperature (Max)-DUP(do not use)	350 °C

Product data

Full product code	872790091648500
Order product name	MSD 575 HR 1CT/8
EAN/UPC - Product	8727900916485
Order code	928098905114
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	8
Material Nr. (12NC)	928098905114
Net Weight (Piece)	0.094 kg
