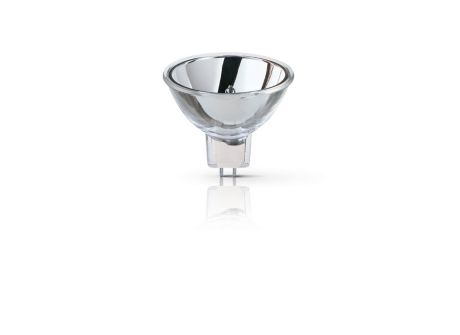

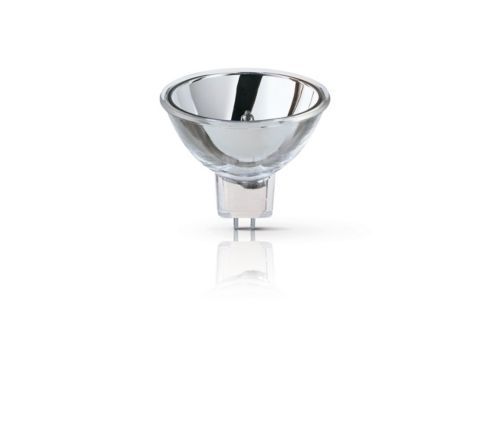

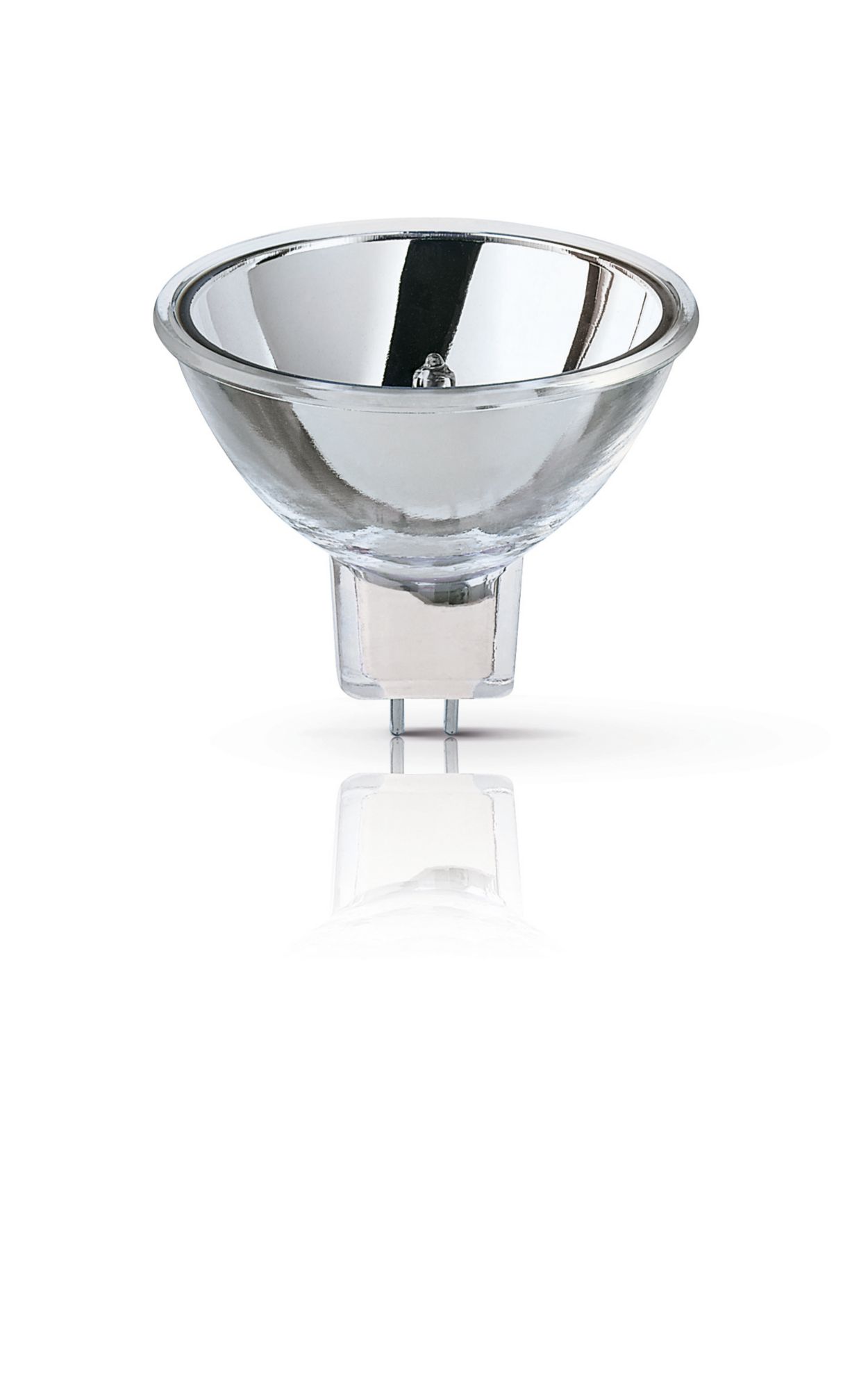

ELC/5H JCR-24-250 GX5.3 1CT/24

Specifications Show all

General Information

Cap base	GX5.3  [ GX5.3]
Philips code	13163
ANSI Code	ELC-5H
LIF code	-
Operating position	S90  [ Standing +/-90D or Base Down (BDH)]
Main application	Projection
Life to 50% failures (nom.)	500 h

Light Technical

Correlated colour temperature (nom.)	3400 K
Color rendering index (nom.)	100

Operating and Electrical

Power (Rated) (Nom)	250 W
Voltage (Nom)	24 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Bulb material	Quartz-UV Open
Reflector finish	Smooth
Filament dimensions WxH	-

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	400 °C
Working distance WD	32 mm

Product Data

Full product code	871150041347530
Order product name	13163 ELC/5H 250W GX5.3 24V 1CT/24
EAN/UPC – product	8711500413475
Order code	41347530
Numerator – quantity per pack	1
Numerator – packs per outer box	24
Material no. (12NC)	924862720540
Net weight (piece)	0.024 kg
