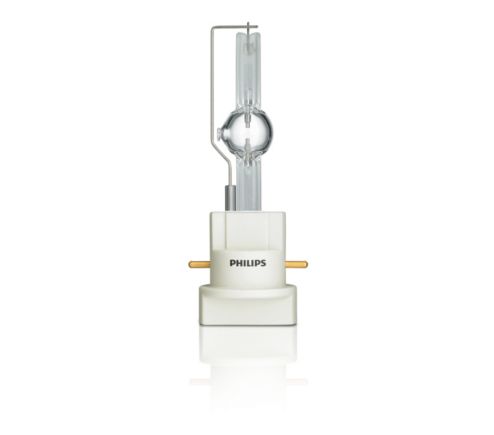

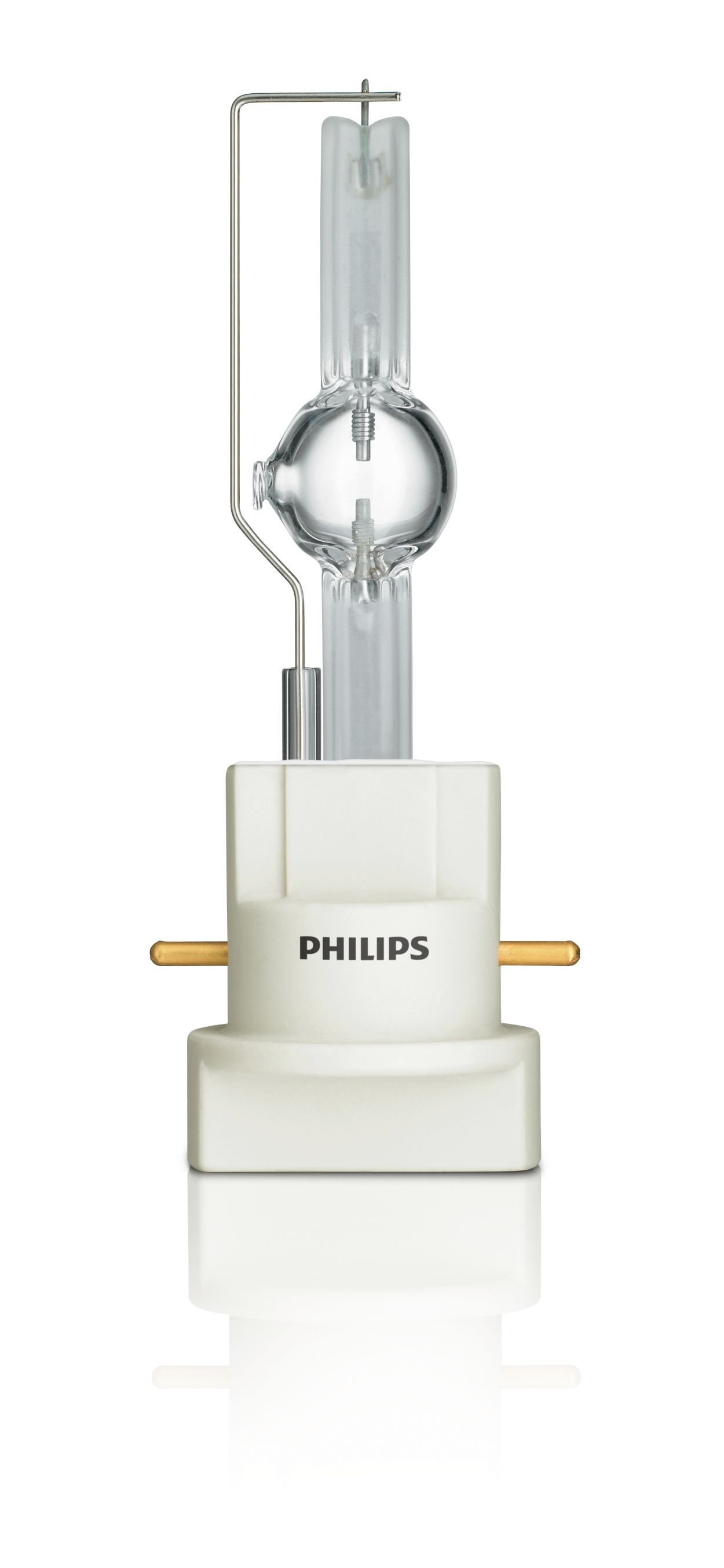

MSR Gold™ 400 MiniFastFit 1CT/16

Specifications Show all

General Information

Cap base	PGJX28  [ PGJX28]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Entertainment
Life to 50% failures (nom.)	750 h
System description	MiniFastFit

Light Technical

Colour code	-  [ Not Specified]
Luminous flux (min.)	23400 lm
Luminous flux (nom.)	26000 lm
Chromaticity coordinate X (nom.)	310
Chromaticity coordinate Y (nom.)	320
Correlated colour temperature (nom.)	6700 K
Luminous efficacy (rated) (nom.)	65 lm/W
Color rendering index (nom.)	60

Operating and Electrical

Power (Rated) (Nom)	400 W
Lamp current (nom.)	7.2 A
Ignition supply voltage (min.)	198 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

PGJX28

Luminaire Design Requirements

Bulb temperature (max.)	950 °C
Pinch temperature (max.)	500 °C

Product Data

Full product code	871829115828800
Order product name	MSR Gold™ 400 MiniFastFit 1CT/16
EAN/UPC – product	8718291158288
Order code	15828800
Numerator – quantity per pack	1
Numerator – packs per outer box	16
Material no. (12NC)	928194005114
Net weight (piece)	0.053 kg
