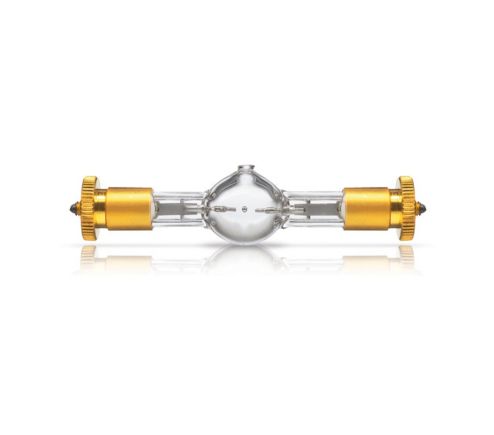

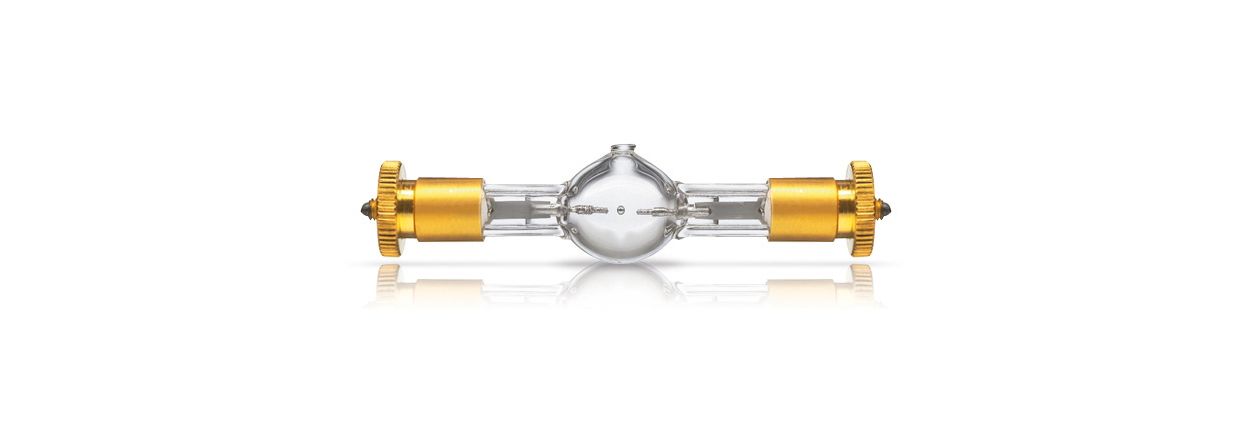

MSR Gold™ 575 SA/2 DE 1CT/40

Specifications Show all

General Information

Cap base	SFC-11  [ SFc-11]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Entertainment
Life to 50% failures (nom.)	750 h
System description	SA/2 DE

Light Technical

Colour code	2
Luminous flux (min.)	39000 lm
Luminous flux (nom.)	42000 lm
Chromaticity coordinate X (nom.)	294
Chromaticity coordinate Y (nom.)	317
Correlated colour temperature (nom.)	7500 K
Luminous efficacy (rated) (nom.)	73 lm/W
Color rendering index (nom.)	75

Operating and Electrical

Power (Rated) (Nom)	575 W
Lamp current (nom.)	7 A
Ignition supply voltage (min.)	198 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

SFc-11

Luminaire Design Requirements

Pinch temperature (max.)

400 °C

Product Data

Full product code	872790091464100
Order product name	MSR Gold™ 575 SA/2 DE 1CT/40
EAN/UPC – product	8727900914641
Order code	91464100
Numerator – quantity per pack	1
Numerator – packs per outer box	40
Material no. (12NC)	928175105114
Net weight (piece)	0.032 kg
