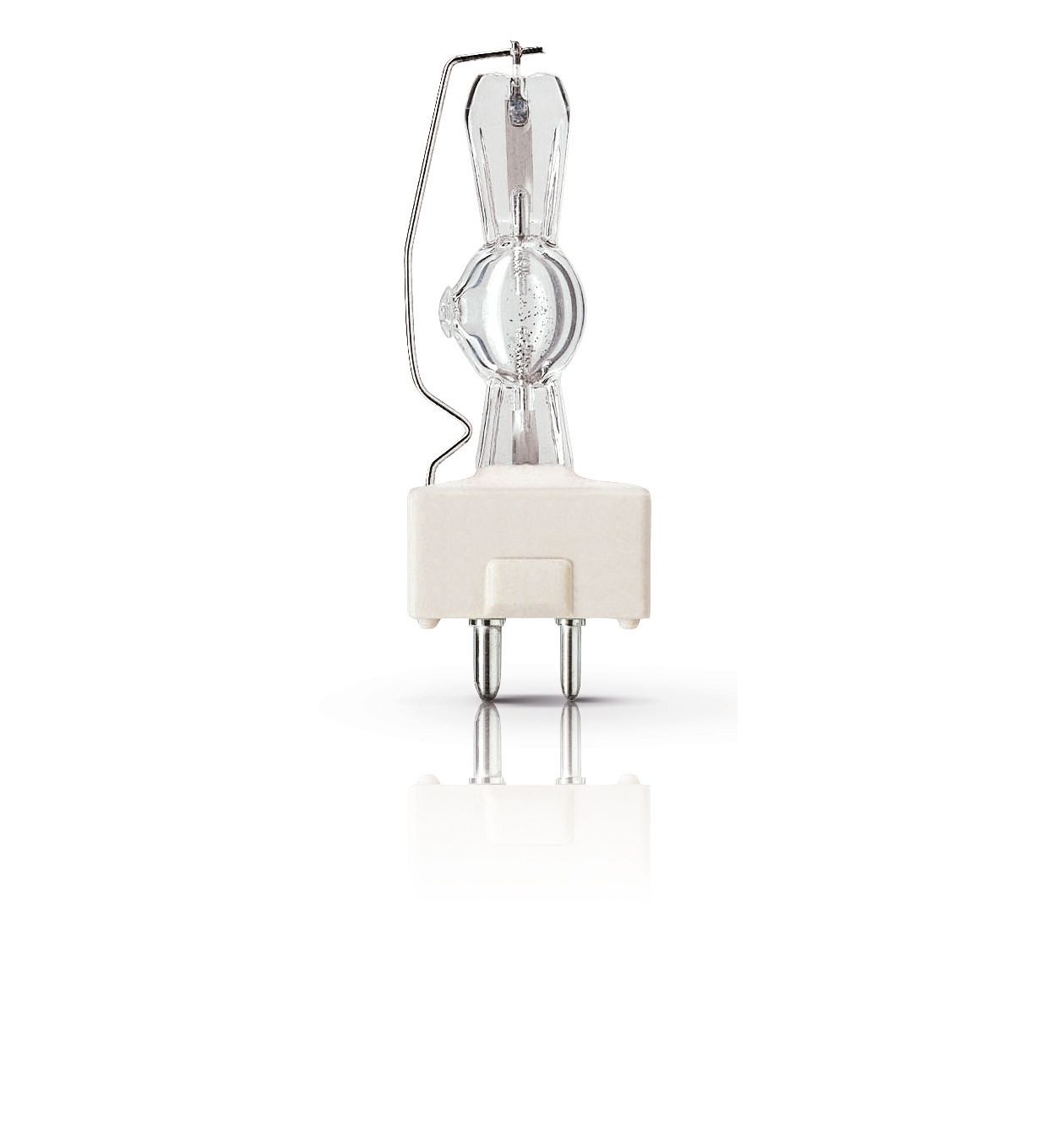

MSR 400 SA 1CT/40

Specifications Show all

General Information

Cap base	GY9.5  [ GY9.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	750 h
System description	Short Arc

Light Technical

Colour code	-  [ Not Specified]
Luminous flux (min.)	23500 lm
Luminous flux (nom.)	30000 lm
Chromaticity coordinate X (nom.)	330
Chromaticity coordinate Y (nom.)	342
Correlated colour temperature (nom.)	5600 K
Luminous efficacy (rated) (nom.)	75 lm/W
Color rendering index (nom.)	75

Operating and Electrical

Power (Rated) (Nom)	400 W
Lamp current (nom.)	8.4 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

na  [ -]

Luminaire Design Requirements

Bulb temperature (max.)	1000 °C
Pinch temperature (max.)	500 °C

Product Data

Full product code	872790092421300
Order product name	MSR 400 SA 1CT/40
EAN/UPC – product	8727900924213
Order code	92421300
Numerator – quantity per pack	1
Numerator – packs per outer box	40
Material no. (12NC)	928170205114
Net weight (piece)	0.019 kg
