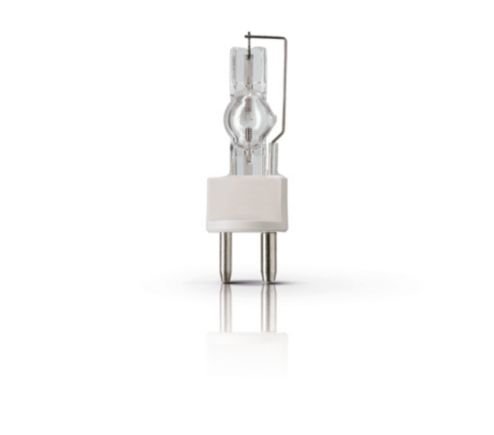

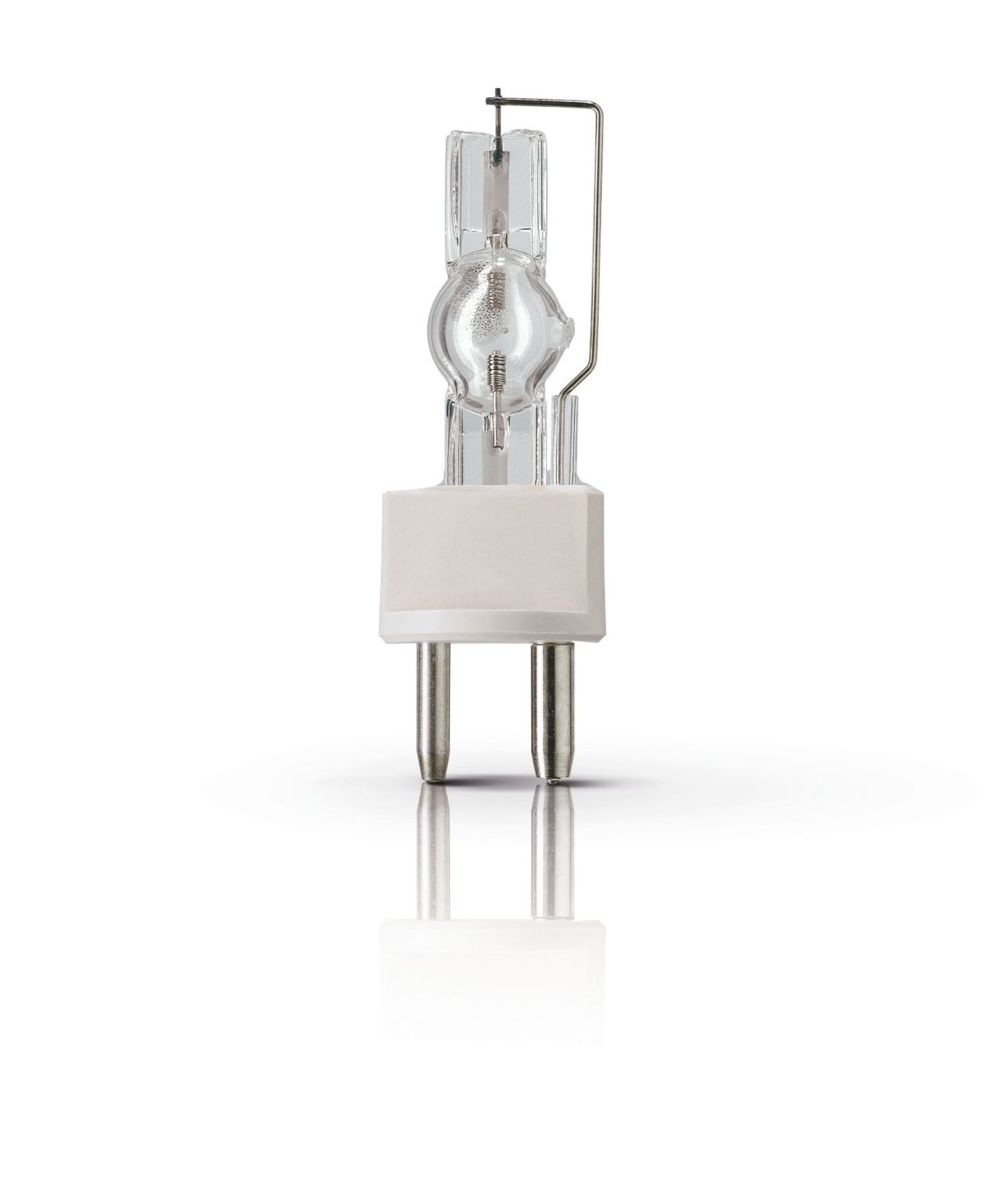

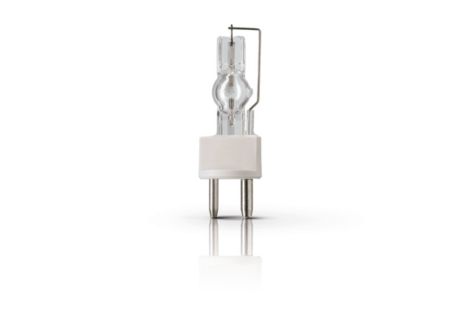

MSR 2000 SA 1CT/8

Specifications Show all

General Information

Cap base	GY22  [ GY22]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	750 h
System description	Short Arc

Light Technical

Colour code	-  [ Not Specified]
Luminous flux (min.)	164000 lm
Luminous flux (nom.)	174000 lm
Chromaticity coordinate X (nom.)	323
Chromaticity coordinate Y (nom.)	334
Correlated colour temperature (nom.)	6000 K
Luminous efficacy (rated) (nom.)	88 lm/W
Color rendering index (nom.)	89

Operating and Electrical

Power (Rated) (Nom)	2000 W
Lamp current (nom.)	21.5 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information

na  [ -]

Luminaire Design Requirements

Bulb temperature (max.)	1000 °C
Pinch temperature (max.)	500 °C

Product Data

Full product code	872790091573000
Order product name	MSR 2000 SA 1CT/8
EAN/UPC – product	8727900915730
Order code	91573000
Numerator – quantity per pack	1
Numerator – packs per outer box	8
Material no. (12NC)	928173205114
Net weight (piece)	0.096 kg
