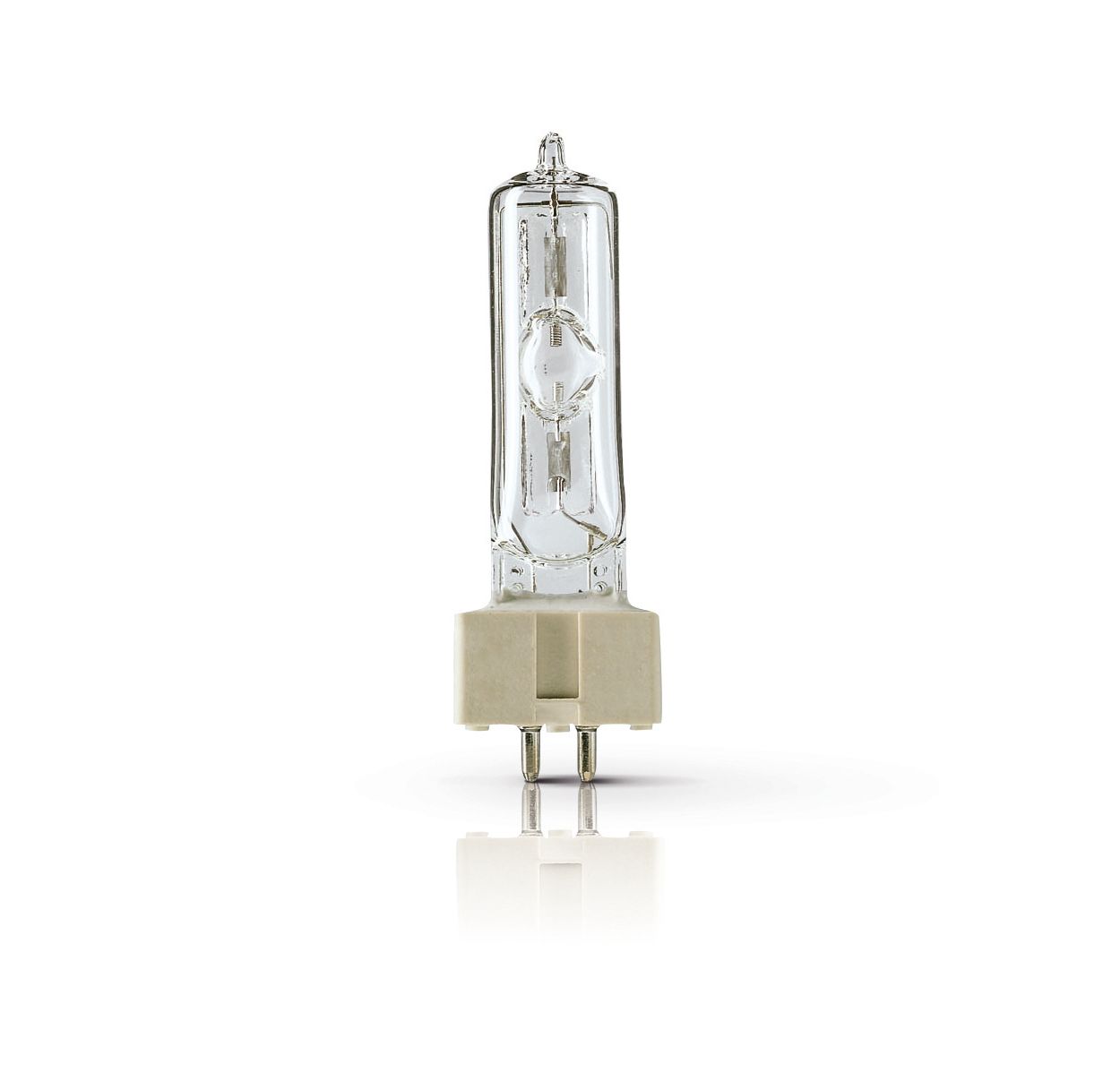

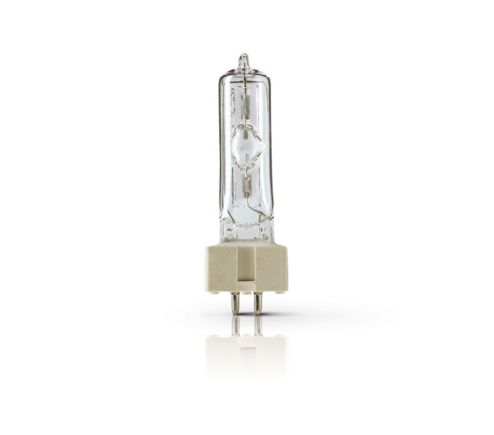

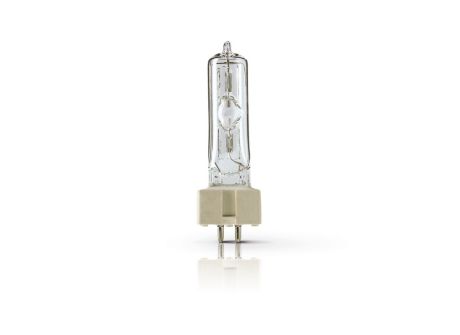

MSR 575/2 10H 1CT/4

Specifications Show all

General Information

Cap base	GX9.5  [ GX9.5]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	1000 h
System description	Cold Strike

Light Technical

Colour code	2
Luminous flux (min.)	39000 lm
Luminous flux (nom.)	49000 lm
Chromaticity coordinate X (nom.)	302
Chromaticity coordinate Y (nom.)	320
Correlated colour temperature (nom.)	6990 K
Luminous efficacy (rated) (nom.)	85 lm/W
Color rendering index (nom.)	70

Operating and Electrical

Power (Rated) (Nom)	575 W
Lamp current (nom.)	6.95 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

20mm (20)

Luminaire Design Requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	871829122127200
Order product name	MSR 575/2 10H 1CT/4
EAN/UPC – product	8718291221272
Order code	22127200
Numerator – quantity per pack	1
Numerator – packs per outer box	4
Material no. (12NC)	928171605115
Net weight (piece)	0.057 kg
