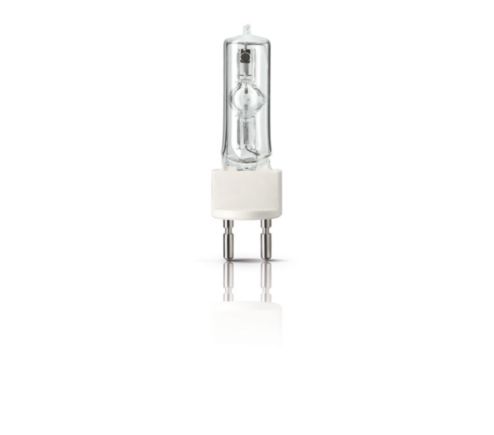

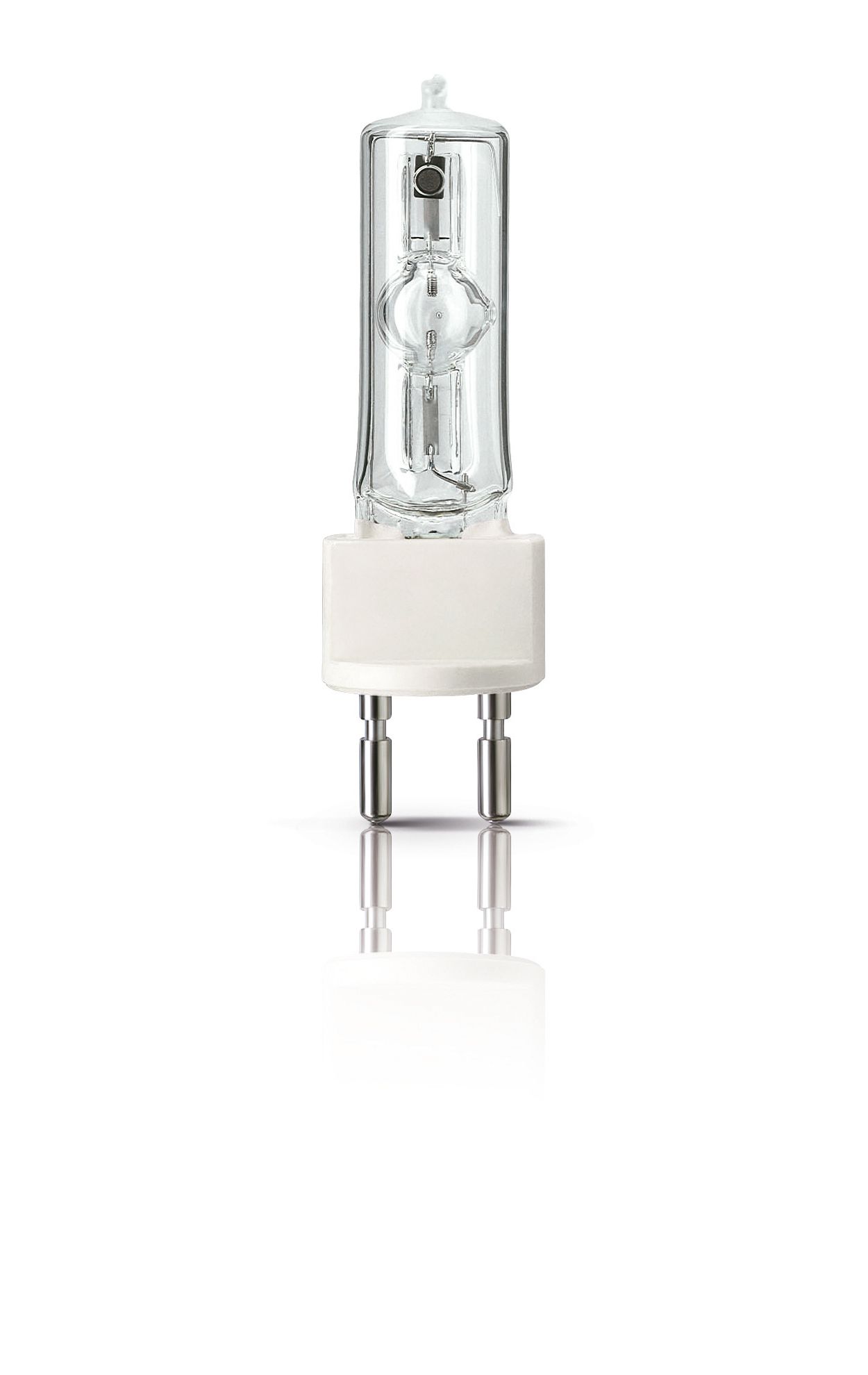

MSR 1200/2 1CT/3

Specifications Show all

General Information

Cap base	G22  [ G22]
Operating position	UNIVERSAL  [ Any or Universal (U)]
Main application	Studio/Disco
Life to 50% failures (nom.)	800 h
System description	Cold Strike

Light Technical

Colour code	2
Luminous flux (min.)	93600 lm
Luminous flux (nom.)	104000 lm
Chromaticity coordinate X (nom.)	302
Chromaticity coordinate Y (nom.)	320
Correlated colour temperature (nom.)	7200 K
Luminous efficacy (rated) (nom.)	87 lm/W
Color rendering index (nom.)	85

Operating and Electrical

Power (Rated) (Nom)	1200 W
Lamp current (nom.)	13.8 A
Ignition supply voltage (min.)	207 V

Controls and Dimming

Dimmable

No

Mechanical and Housing

Cap base information

30x53mm

Luminaire Design Requirements

Bulb temperature (max.)	700 °C
Pinch temperature (max.)	350 °C

Product Data

Full product code	872790091133600
Order product name	MSR 1200/2.1CT/3
EAN/UPC – product	8727900911336
Order code	91133600
Numerator – quantity per pack	1
Numerator – packs per outer box	3
Material no. (12NC)	928171805114
Net weight (piece)	0.150 kg
