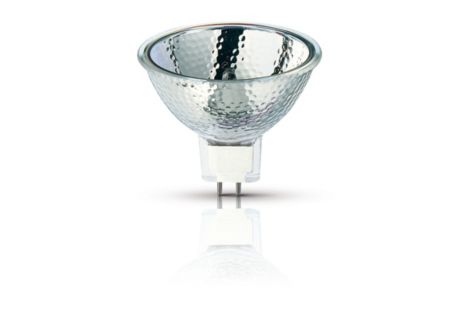

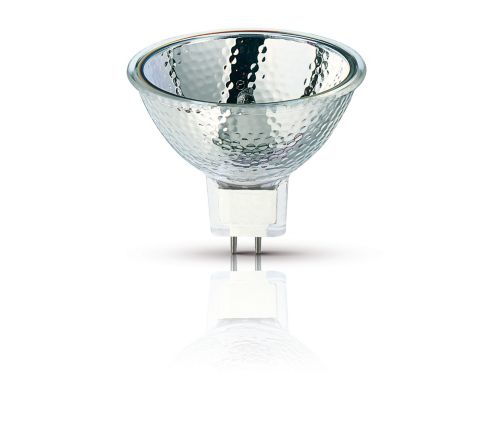

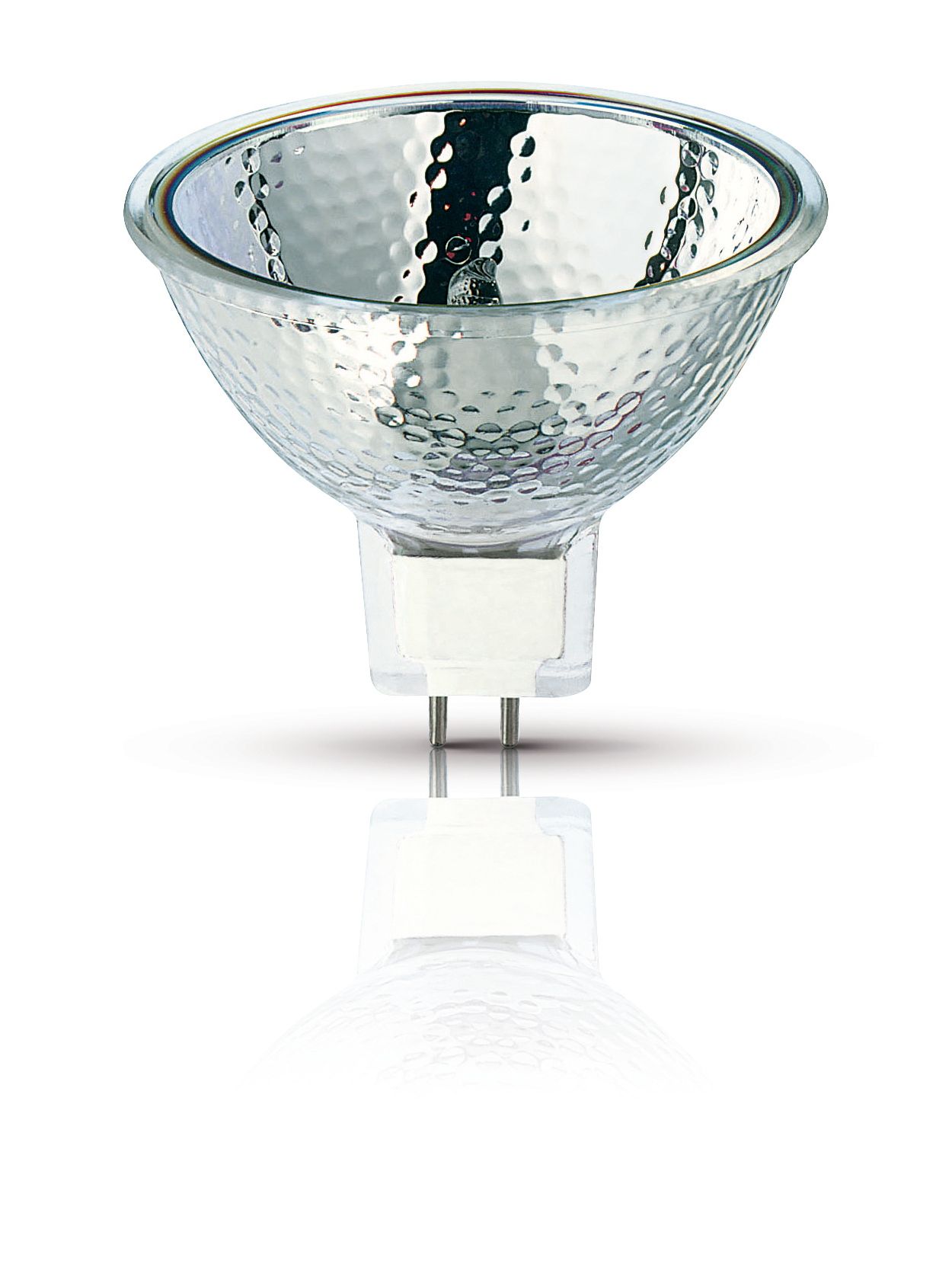

13158 150W GX5.3 21V 1CT

Specifications Show all

General Information

Cap base	GX5.3  [ GX5.3]
Philips code	13158
ANSI Code	ELD-EJN
LIF code	-
Operating position	S90  [ Standing +/-90D or Base Down (BDH)]
Main application	Projection
Life to 50% failures (nom.)	40 h
J code	-

Light Technical

Luminous flux (rated) (nom.)	320 lm
Correlated colour temperature (nom.)	3400 K
Color rendering index (nom.)	100

Operating and Electrical

Power (Rated) (Nom)	150 W
Voltage (Nom)	21 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Cap base information	na  [ -]
Bulb material	Quartz-UV Open
Reflector finish	Stippled
Filament shape	-
Filament dimensions WxH	-

Luminaire Design Requirements

Bulb temperature (max.)	900 °C
Pinch temperature (max.)	400 °C
Working distance WD	165 mm

Product Data

Full product code	871150041060330
Order product name	ELD 150W 21V 24PK
EAN/UPC – product	8711500410603
Order code	41060330
Numerator – quantity per pack	1
Numerator – packs per outer box	24
Material no. (12NC)	923921319894
Net weight (piece)	0.023 kg
