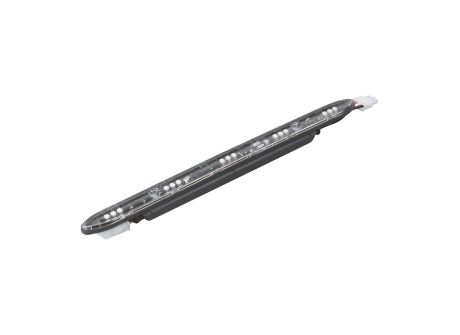

BCX440 15xLED-LP/RGB 24V 120

Specifications Show all

General Information

Number of light sources	15  [ 15 pcs]
Lamp family code	LED-LP  [ LED Low Power]
Light source colour	Red, green and blue
Light source replaceable	No
Driver included	Yes
Optic type	120  [ Beam angle 120°]
Luminaire light beam spread	120° x 120°
Protection class IEC	Safety class II (II)
Glow-wire test	650/5  [ Temperature 650 °C, duration 5 s]
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	CE mark

Operating and Electrical

Input voltage

24 V

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Length

305 mm

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK00  [ No protection]

Initial Performance (IEC Compliant)

Initial LED luminaire efficacy	5.5 lm/W
Initial input power	2 W

Application Conditions

Ambient temperature range	-40 to +50 °C
Maximum dimming level	0% (digital)
Suitable for random switching	Yes (relates to presence/ movement detection and daylight harvesting)

Product Data

Full product code	872790071002199
Order product name	BCX440 15xLED-LP/RGB 24V 120
EAN/UPC – product	8727900710021
Order code	71002199
Numerator – quantity per pack	1
Numerator – packs per outer box	50
Material no. (12NC)	910503700013
Net weight (piece)	0.080 kg
