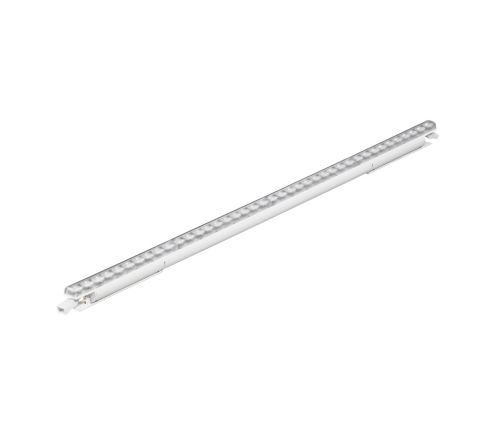

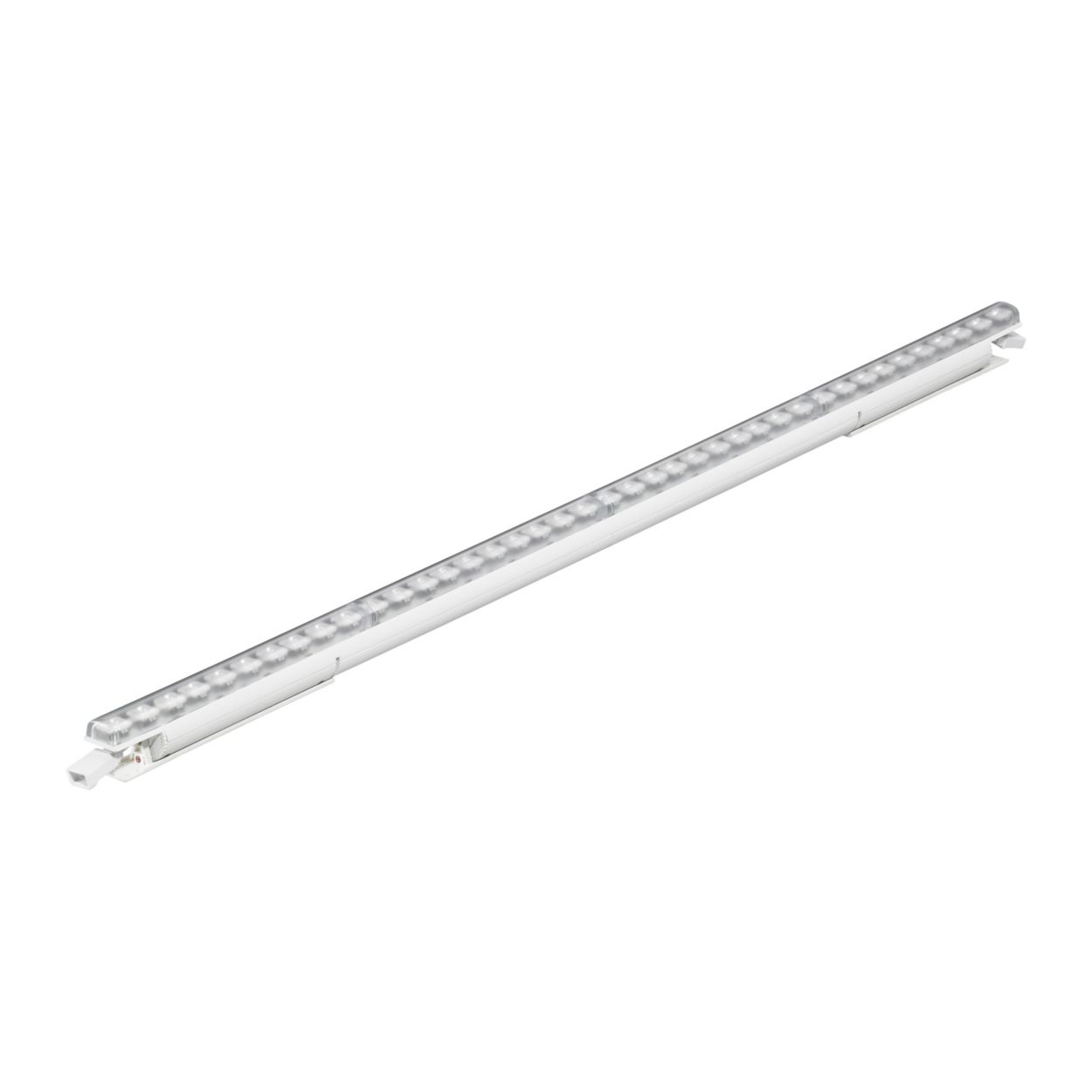

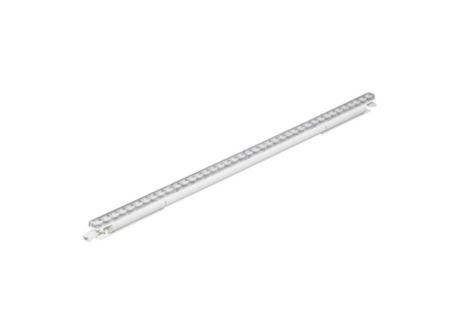

LS516XLED4-/CW/WW 100-277V MB L1219 UL/C

Specifications Show all

General Information

Lamp family code	LED4  [ LED Module 400 lm]
Light source colour	Cool white and warm white
Light source replaceable	No
Driver included	Yes
Optic type	MB  [ Medium beam]
Luminaire light beam spread	30° x 60°
Protection class IEC	Safety class I (I)
Glow-wire test	850/5  [ Temperature 850 °C, duration 5 s]
Type description	No
CE mark	CE mark
ENEC mark	-
UL mark	UL and cUL mark
CCC mark	CCC mark
FCC mark	FCC Class B

Operating and Electrical

Input voltage	100 to 277 V
Input frequency	50 to 60 Hz

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Housing material	Aluminum die-cast
Optical cover/lens material	Polycarbonate
Length	1219 mm

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial Performance (IEC Compliant)

Init. Corr. colour temperature	2700 to 6500 K
Init. colour rendering index	82

Over Time Performance (IEC Compliant)

Lumen Maintenance 50% at 25°C Reported	50000
Lumen Maintenance 50% at 50°C Reported	50000
Lumen Maintenance 70% at 25°C Reported	50000
Lumen Maintenance 70% at 50°C Reported	50000

Application Conditions

Ambient temperature range	-20 to +50 °C
Maximum dimming level	0% (digital)
Suitable for random switching	Yes (relates to presence/ movement detection and daylight harvesting)

Product Data

Full product code	871829138399499
Order product name	LS516XLED4-/CW/WW 100-277V MB L1219 UL/C
EAN/UPC – product	8718291383994
Order code	38399499
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	910503702516
Net weight (piece)	2.000 kg
