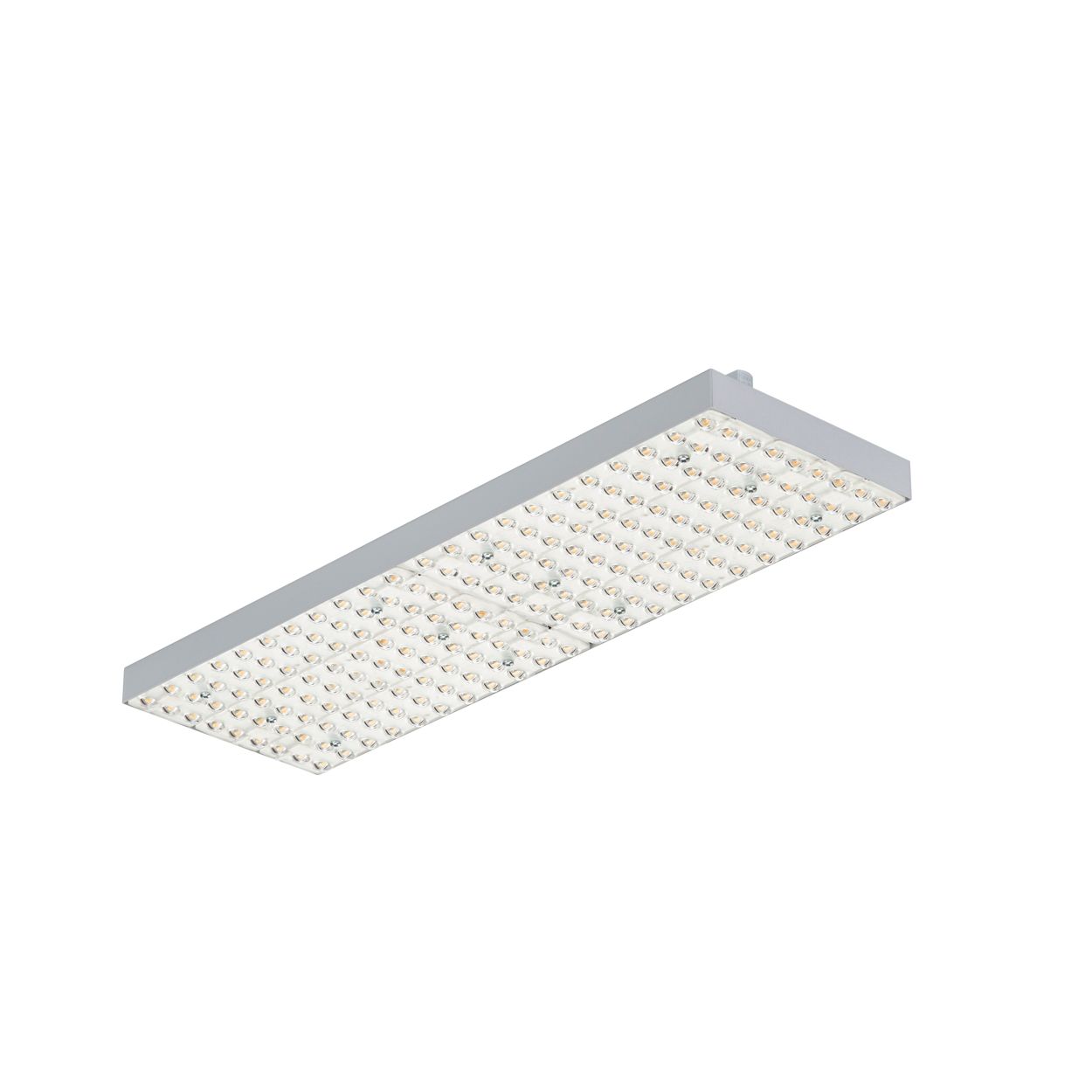

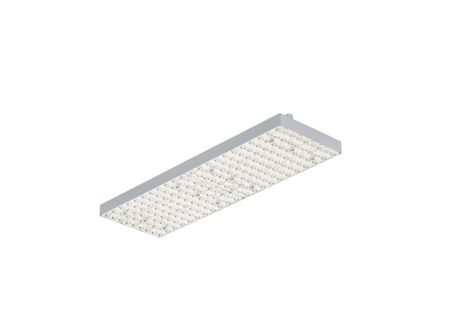

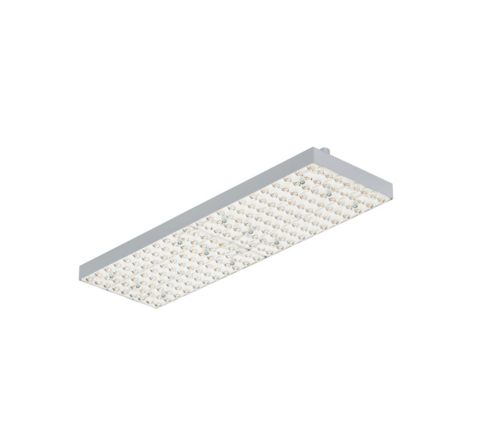

    • SM500T − Ambiance creation made flexible

      SM500T LED79S/840 PSU WB GR
      LED
      SM500T LED79S/840 PSU WB GR

      SM500T LED79S/840 PSU WB GR

      Order code: 87035800

      Full Product Code: 871869687035800

      Downloads

      Leaflet
      Size:243.1 kB

      See all downloads

    Specifications Show all

    General Information
    Number of light sources
    1  [ 1 pc]
    Lamp family code
    LED79S  [ LED Module, system flux 7900 lm]
    Beam angle of light source
    - °
    Light source colour
    840 neutral white
    Cap base
    -  [ -]
    Light source replaceable
    No
    Number of gear units
    1 unit
    Driver/power unit/transformer
    PSU  [ Power supply unit]
    Driver included
    Yes
    Optic type
    WB  [ Wide beam]
    Optical cover/lens type
    PM  [ PMMA bowl/cover]
    Luminaire light beam spread
    110°
    Connection
    CU3  [ Connection unit 3-pole]
    Cable
    -
    Protection class IEC
    Safety class I (I)
    Mounting
    3C  [ 3-circuit power track]
    Glow-wire test
    650/30  [ Temperature 650 °C, duration 30 s]
    Flammability mark
    F  [ For mounting on normally flammable surfaces]
    CE mark
    CE mark
    ENEC mark
    ENEC plus mark
    UL mark
    -
    Warranty period
    5 years
    Remarks
    *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
    Constant light output
    No
    Number of products on MCB
    24
    RoHS mark
    RoHS mark
    Product Family Code
    SM500T  [ SM500]
    Operating and Electrical
    Input voltage
    220-240 V
    Input frequency
    50 to 60 Hz
    Control signal voltage
    -
    Inrush current
    19 A
    Inrush time
    0.280 ms
    Power factor (min.)
    0.97
    Controls and Dimming
    Dimmable
    No
    Mechanical and Housing
    Housing material
    Steel
    Reflector material
    -
    Optic material
    Polymethyl methacrylate
    Optical cover/lens material
    Polymethyl methacrylate
    Gear tray material
    Steel
    Fixation material
    -
    Optical cover/lens finish
    Clear
    Overall length
    586 mm
    Overall width
    184 mm
    Overall height
    90 mm
    Approval and Application
    Ingress protection code
    IP20  [ Finger-protected]
    Mech. impact protection code
    IK02  [ 0.2 J standard]
    Initial Performance (IEC Compliant)
    Initial luminous flux
    7900 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    160 lm/W
    Init. Corr. colour temperature
    4000 K
    Init. colour rendering index
    ≥80
    Initial chromaticity
    (0.38, 0.38) SDCM <3
    Initial input power
    49.5 W
    Power consumption tolerance
    +/-5%
    Application Conditions
    Ambient temperature range
    +10 to +35 °C
    Performance ambient temperature Tq
    25 °C
    Suitable for random switching
    No
    Product Data
    Full product code
    871869687035800
    Order product name
    SM500T LED79S/840 PSU WB GR
    EAN/UPC – product
    8718696870358
    Order code
    87035800
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    1
    Material no. (12NC)
    910504096903
    Net weight (piece)
    3.000 kg

    Eco passport - Our environmental product specifications overview

    Philips cares about the environment and society at large, and strongly supports eco-design of products.

    Installation Diagrams
     SM500T - LED Module, system flux 7900 lm - Power supply unit - Wide beam
    SM500T - LED Module, system flux 7900 lm - Power supply unit - Wide beam
    Photometrics
    IFGU1_SM500T1xLED79S840WB
    IFGU1_SM500T1xLED79S840WB
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 243.1 kB
    Green Data
    Visuals
    Software Plugins
    • IES IFMT1_SM500T1xLED79S840WB IES 8.0 kB
    • ULD IFDM1_SM500T1xLED79S840WB ULD 28.5 kB
    • Relux IFDM2_SM500T1xLED79S840WB ROLF 7.3 kB
    • LDT IFMT2_SM500T1xLED79S840WB LDT 6.3 kB
