| Lamp family code | LED5S
[ LED Module, system flux 500 lm] |
| Light source colour | 927 warm white
|
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSR
[ Power supply unit regulating] |
| Driver included | Yes
|
| Optical cover/lens type | PM
[ PMMA bowl/cover] |
| Luminaire light beam spread | -
|
| Control interface | -
|
| Connection | No
[ -] |
| Cable | -
|
| Protection class IEC | Safety class II (II)
|
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | -
|
| Warranty period | 5 years
|
| Outdoor optic type | -
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB | -
|
| RoHS mark | -
|
| LED engine type | LED
|
| Standard tilt angle post-top | -
|
| Standard tilt angle side entry | -
|
| Input voltage | 220/240
V
|
| Input frequency | 50 to 60
Hz
|
| Initial CLO power consumption | -
W
|
| Average CLO power consumption | -
W
|
| End CLO power consumption | -
W
|
| Power factor (min.) | -
|
| Dimmable | Yes
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Glass
|
| Optical cover/lens material | Polymethyl methacrylate
|
| Fixation material | -
|
| Mounting device | No
[ -] |
| Optical cover/lens shape | -
|
| Optical cover/lens finish | -
|
| Overall length | 258
mm
|
| Overall width | 91
mm
|
| Overall height | 248
mm
|
| Overall diameter | 91
mm
|
| Ingress protection code | IP20
[ Finger-protected] |
| Mech. impact protection code | IK02
[ 0.2 J standard] |
| Surge protection (common/differential) | -
kV
|
| Initial luminous flux | 684
lm
|
| Luminous flux tolerance | +/-1%
|
| Initial LED luminaire efficacy | 32
lm/W
|
| Init. Corr. colour temperature | 2700
K
|
| Init. colour rendering index | 90
|
| Initial chromaticity | -
|
| Initial input power | 21
W
|
| Power consumption tolerance | +/-2%
|
| Ambient temperature range | 0 to +35 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | 10%
|
| Full product code | 871829129775800
|

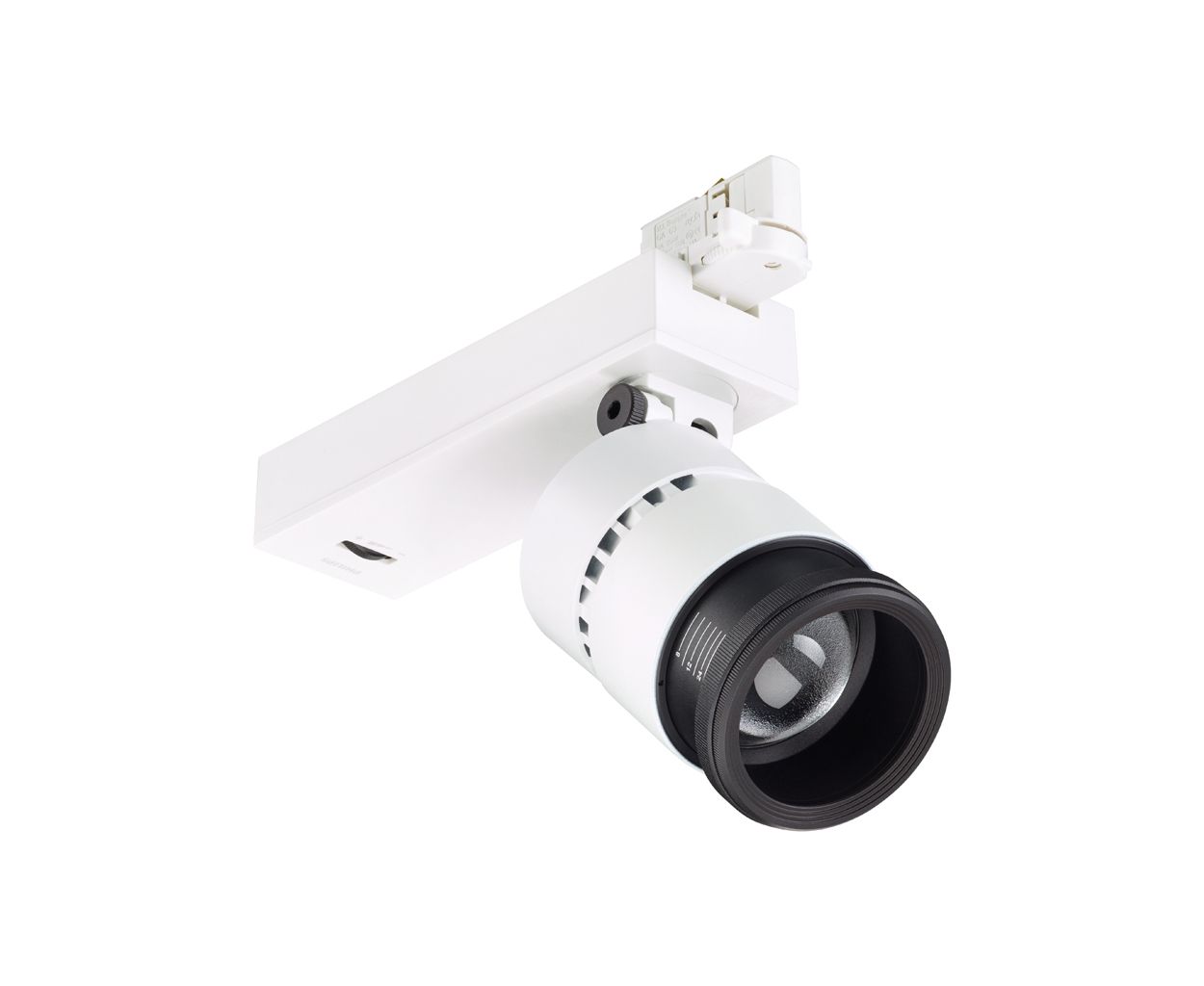

| Order product name | ST741T LED5S/927 PSR 7-43 WH
|
| EAN/UPC – product | 8718291297758
|
| Order code | 29775800
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910504801181
|
| Net weight (piece) | 1.300
kg
|
