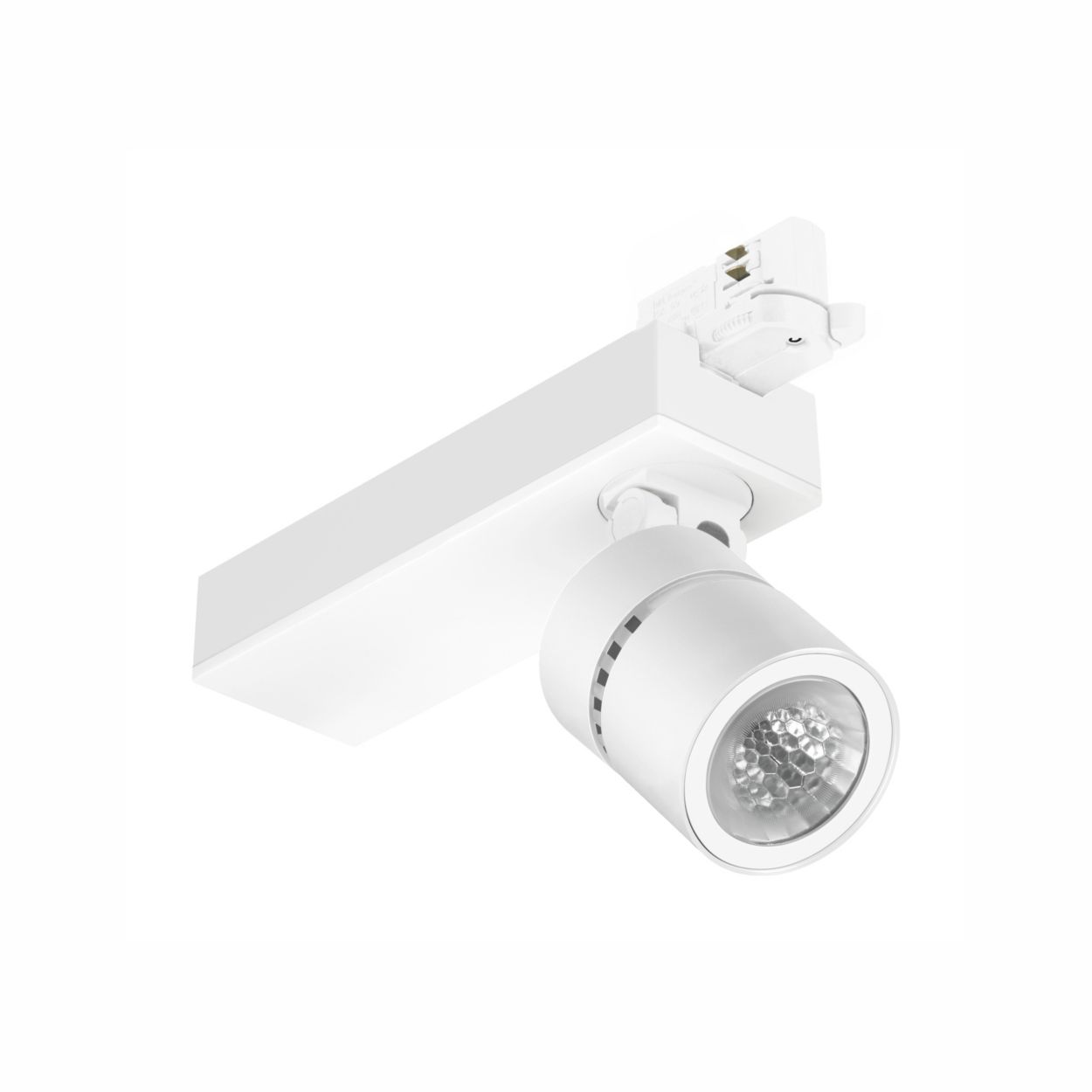

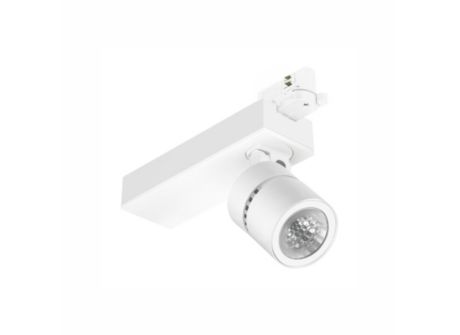

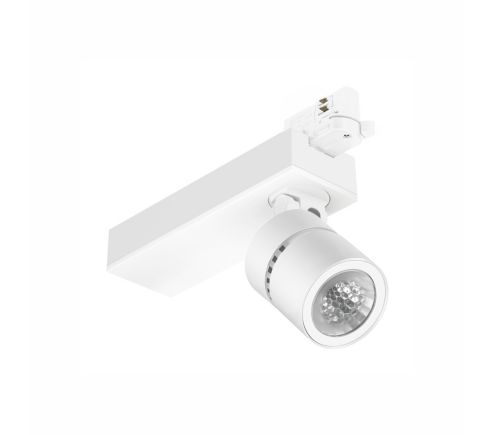

ST730T LED12S/840 PSU WB WH

Specifications Show all

General Information

Number of light sources	1  [ 1 pc]
Lamp family code	LED12S  [ LED Module, system flux 1200 lm]
Beam angle of light source	120 °
Light source colour	840 neutral white
Cap base	NA  [ -]
Light source replaceable	No
Number of gear units	1 unit
Gear	-
Driver/power unit/transformer	PSE  [ Power supply unit, DC compatible for central emergency lighting]
Driver included	Yes
Optic type	WB  [ Wide beam]
Optical cover/lens type	No  [ -]
Luminaire light beam spread	36°
Connection	PIP  [ Push-in connector and pull relief]
Cable	-
Protection class IEC	Safety class II (II)
Glow-wire test	650/30  [ Temperature 650 °C, duration 30 s]
Flammability mark	F  [ For mounting on normally flammable surfaces]
CE mark	CE mark
ENEC mark	ENEC mark
UL mark	-
Warranty period	5 years
Glare shielding accessories	No  [ -]
Remarks	*-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
Constant light output	No
Number of products on MCB	24
RoHS mark	RoHS mark
Product Family Code	ST730T  [ STYLID MINI G3 TRACK]

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Inrush current	14 A
Inrush time	0.25 ms
Power factor (min.)	0.9

Controls and Dimming

Dimmable

No

Mechanical and Housing

Housing material	Metal/Plastic
Reflector material	Polycarbonate aluminum coated
Optic material	Polycarbonate
Optical cover/lens material	Polymethyl methacrylate
Fixation material	-
Optical cover/lens finish	Clear
Overall length	258 mm
Overall width	73 mm
Overall height	159 mm

Approval and Application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	IK02  [ 0.2 J standard]

Initial Performance (IEC Compliant)

Initial luminous flux	1250 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	123 lm/W
Init. Corr. colour temperature	4000 K
Init. colour rendering index	≥80
Initial chromaticity	(0.38, 0.38) SDCM <3
Initial input power	10.2 W
Power consumption tolerance	+/-10%

Over Time Performance (IEC Compliant)

Control gear failure rate at median useful life 50000 h	5 %
Lumen maintenance at median useful life* 50000 h	L80

Application Conditions

Ambient temperature range	+10 to +40 °C
Performance ambient temperature Tq	25 °C
Suitable for random switching	Yes (relates to presence/ movement detection and daylight harvesting)

Product Data

Full product code	871869684830200
Order product name	ST730T LED12S/840 PSU WB WH
EAN/UPC – product	8718696848302
Order code	84830200
Numerator – quantity per pack	1
Numerator – packs per outer box	1
Material no. (12NC)	910500457353
Net weight (piece)	0.800 kg
