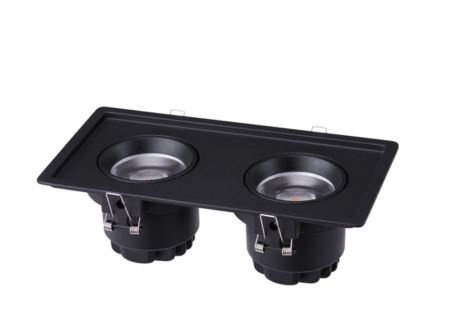

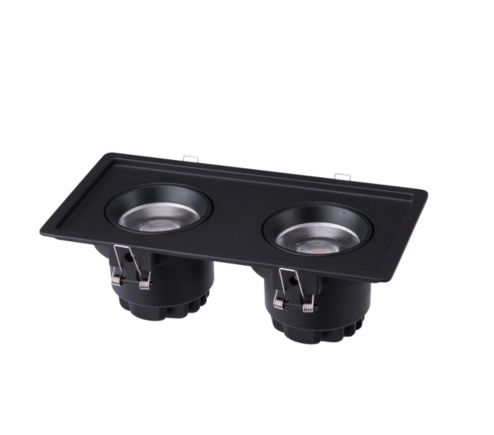

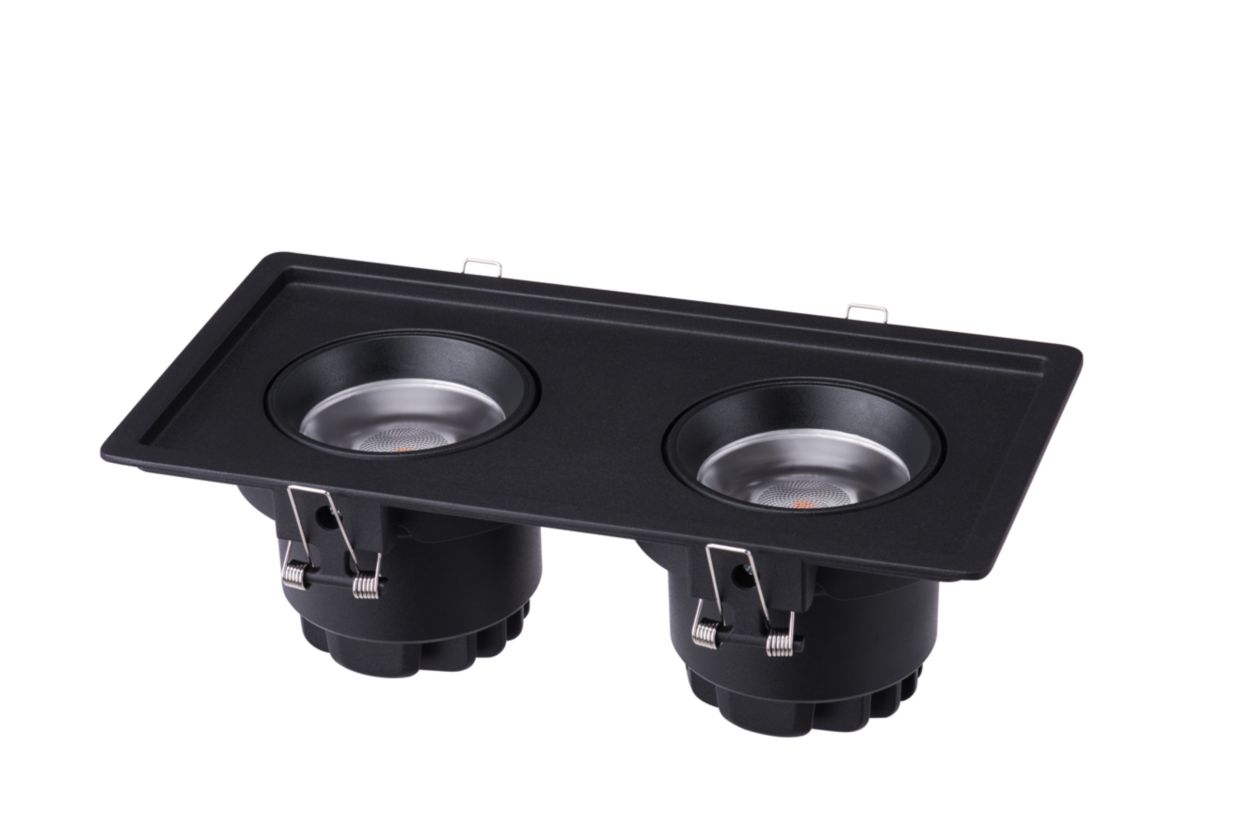

GD700B 2XLED20 930PW PSU MB BK

Specifications Show all

General information

Light source color	930 warm white
Optical cover/lens type	Lens
Control interface	-
Protection class IEC	Safety class II
CE mark	CE mark
Number of products on MCB of 16 A type B	1
Light source engine type	LED

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 or 60 Hz
Power Factor (Min)	0.97

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum
Optical cover/lens material	Polymethyl methacrylate
Optical cover/lens finish	-
Overall length	217 mm
Overall width	115 mm
Overall height	75 mm
Color	Black
Dimensions (Height x Width x Depth)	75 x 115 x 217 mm

Approval and application

Ingress protection code	IP20  [ Finger-protected]
Mech. impact protection code	-

Initial performance (IEC compliant)

Initial luminous flux (system flux)	3369 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	79 lm/W
Init. Corr. Color Temperature	3000 K
Init. Color Rendering Index	>90
Initial input power	42 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-15 to +35 °C

Product data

Full product code	911401519071
Order product name	GD700B 2XLED20 930PW PSU MB BK
Order code	911401519071
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	911401519071
Net Weight (Piece)	0.900 kg
