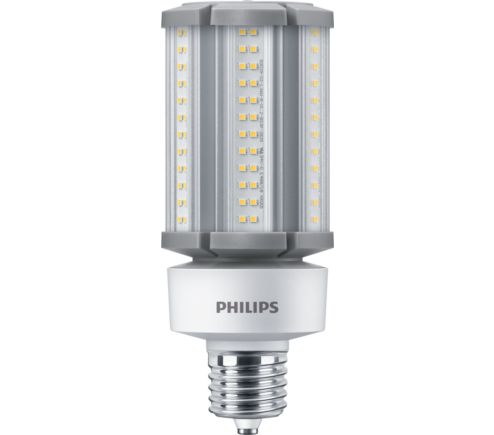

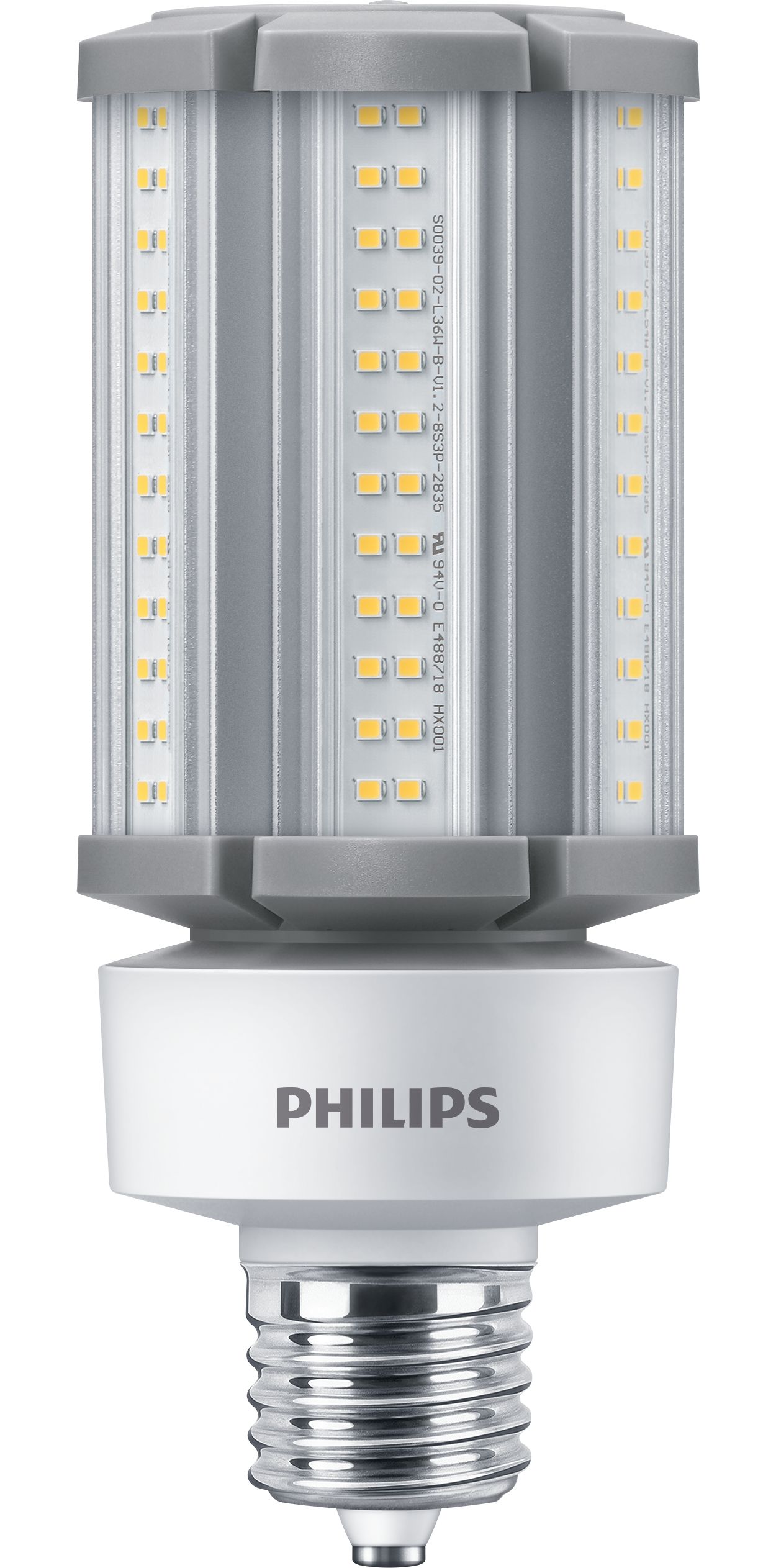

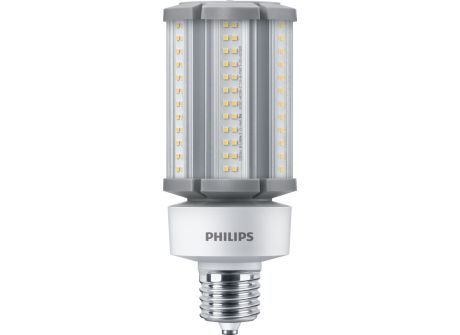

36CC/LED/850/LS EX39 G3 BB 3/1

Specifications Show all

General information

Cap-Base	EX39  [ Exclusionary Mogul Screw]
EU RoHS compliant	Yes
Nominal Lifetime (Nom)	50000 h
Switching Cycle	50000
Tier	CorePro

Light technical

Color Code	850  [ CCT of 5000K]
Luminous Flux (Nom)	5400 lm
Color Designation	Daylight
Correlated Color Temperature (Nom)	5000 K
Luminous Efficacy (rated) (Nom)	150.00 lm/W
Color Consistency	ANSI 5000K quadrangle
Color Rendering Index (Nom)	80
LLMF At End Of Nominal Lifetime (Nom)	70 %

Operating and electrical

Input Frequency	50 to 60 Hz
Power (Nom)	36 W
Lamp Current (Nom)	400 mA
Wattage Equivalent	150 W
Starting Time (Nom)	1 s
Warm Up Time to 60% Light (Nom)	1 s
UL Type	Type B - bypass the ballast
Power Factor (Nom)	0.9
Voltage (Nom)	100-277 V

Temperature

T-Ambient (Max)	45 °C
T-Ambient (Min)	-20 °C
T-Case Maximum (Nom)	60 °C

Controls and dimming

Dimmable

Preset Dimming

Mechanical and housing

Bulb Finish	Clear
Bulb Material	Plastic
Bulb Shape	Corncob

Application conditions

Ambient temperature range

-20 °C to 45 °C

Product data

Order product name	36CC/LED/850/LS EX39 G3 BB 3/1
EAN/UPC - Product	046677564162
Order code	929002999104
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	3
Material Nr. (12NC)	929002999104
Net Weight (Piece)	0.655 kg
