    • Your everyday LEDspot GU10

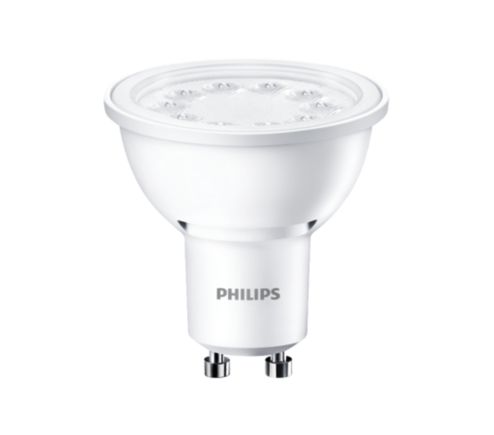

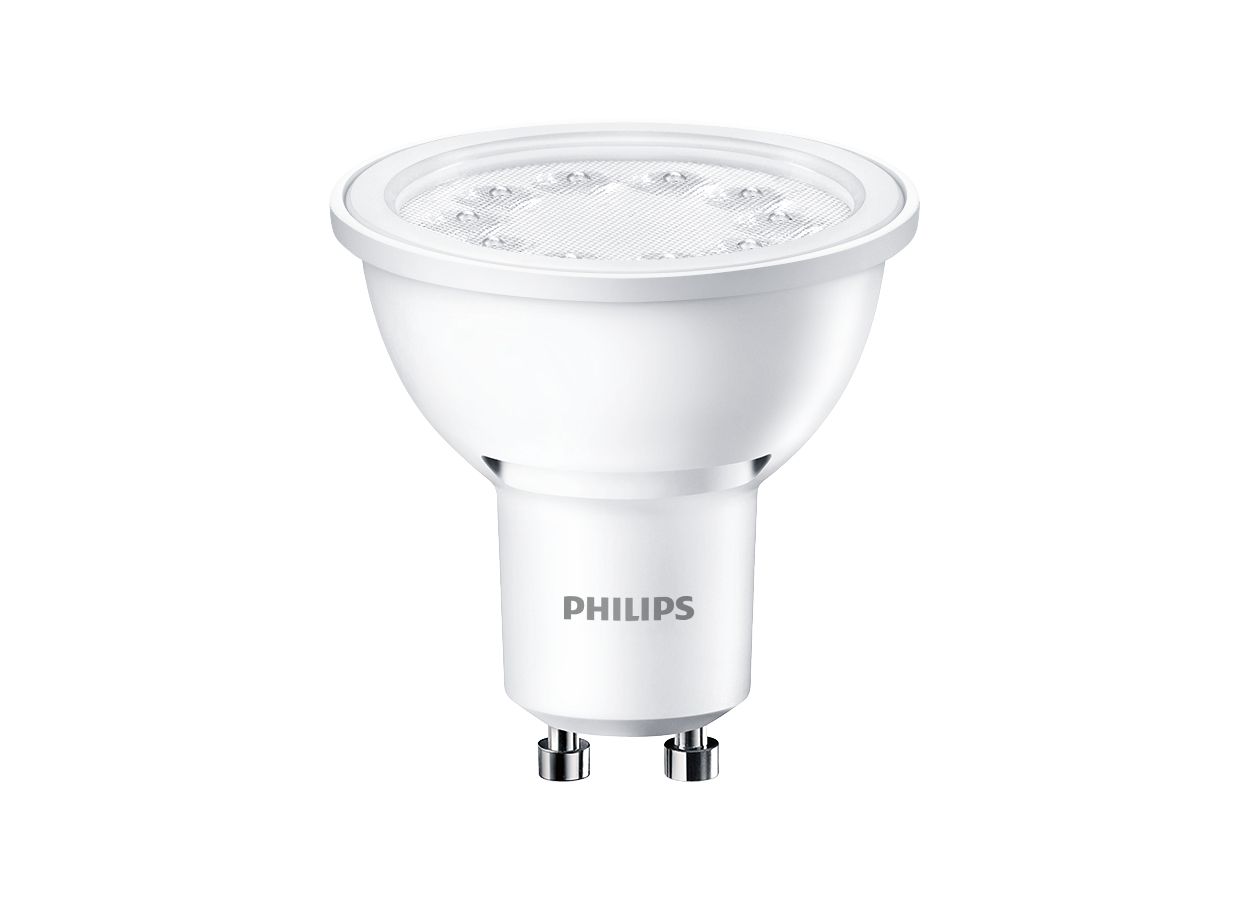

      ESS LEDspotMV 5-50W GU10 827 36D
      LED
      ESS LEDspotMV 5-50W GU10 827 36D
      Essential LED spots GU10

      ESS LEDspotMV 5-50W GU10 827 36D

      Order code: 71766000

      Full Product Code: 871869671766000

      Downloads

      Leaflet
      Size:427.5 kB

      See all downloads

    Specifications Show all

    General Information
    Cap base
    GU10  [ GU10]
    Nominal lifetime (nom.)
    15000 h
    Switching cycle
    50000X
    Technical type
    5-50W
    Light Technical
    Colour code
    827  [ CCT of 2700K]
    Beam Angle (Nom)
    36 °
    Luminous flux (nom.)
    385 lm
    Luminous flux (rated) (nom.)
    385 lm
    Luminous intensity (nom.)
    900 cd
    Colour designation
    Warm White (WW)
    Rated beam angle
    36 °
    Correlated colour temperature (nom.)
    2700 K
    Luminous efficacy (rated) (nom.)
    77.00 lm/W
    Colour consistency
    <6
    Color rendering index (nom.)
    80
    LLMF at end of nominal lifetime (nom.)
    70 %
    Luminous Flux in 90° Cone (Rated)
    350 lm
    Operating and Electrical
    Input frequency
    50 to 60 Hz
    Power (Rated) (Nom)
    5 W
    Lamp current (nom.)
    40 mA
    Wattage equivalent
    50 W
    Starting time (nom.)
    0.5 s
    Warm-up time to 60% light (nom.)
    0.5 s
    Power factor (nom.)
    0.5
    Voltage (Nom)
    220-240 V
    Temperature
    T-Case maximum (nom.)
    80 °C
    Controls and Dimming
    Dimmable
    No
    Approval and Application
    Energy-saving product
    Yes
    Suitable for accent lighting
    Yes
    Energy Consumption kWh/1000 h
    5 kWh
    Product Data
    Full product code
    871869671766000
    Order product name
    ESS LEDspotMV 5-50W GU10 827 36D
    EAN/UPC – product
    8718696717660
    Order code
    71766000
    Numerator – quantity per pack
    1
    Numerator – packs per outer box
    10
    Material no. (12NC)
    929001220468
    Net weight (piece)
    0.038 kg
    Installation Diagrams
    GU10
    GU10
    Performance Diagrams
    LEDspot GU10 827
    LEDspot GU10 827
    LEDspot GU10 827
    LEDspot GU10 827
    Photometrics
    LED Lamps, CorePro LEDspotMV 5-50W GU10 PAR16 350lm 827 36D
    LED Lamps, CorePro LEDspotMV 5-50W GU10 PAR16 350lm 827 36D
    Downloads
    Leaflets
    • Leaflet Localized commercial leaflet PDF 427.5 kB
    Visuals
    Software Plugins
    • IES LED Lamps, CorePro LEDspotMV 5-50W GU10 PAR16 350lm 827 36D IES 23.1 kB
