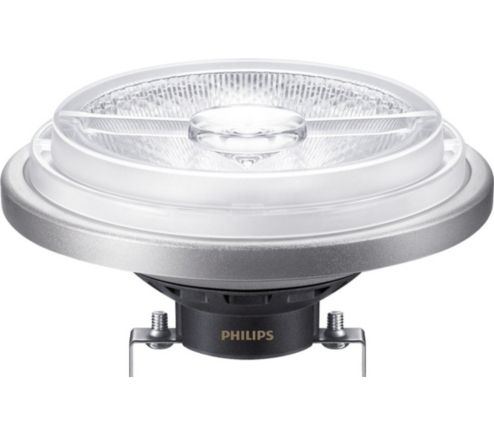

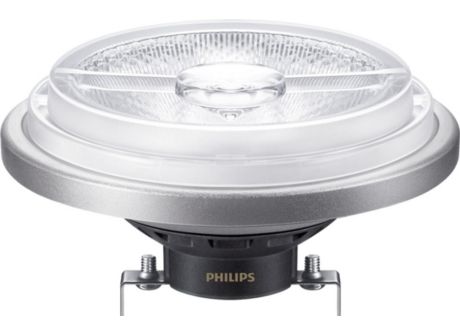

MAS LEDspotLV D 11-50W 927 AR111 40D

Specifications Show all

General Information

Cap base	G53  [ G53]
Nominal lifetime (nom.)	40000 h
Switching cycle	50000X
Technical type	11-50W

Light Technical

Colour code	927
Beam Angle (Nom)	40 °
Light distribution	40D  [ Medium beam]
Luminous flux (nom.)	620 lm
Luminous flux (rated) (nom.)	620 lm
Luminous intensity (nom.)	1100 cd
Colour designation	Warm White (WW)
Rated beam angle	40 °
Correlated colour temperature (nom.)	2700 K
Luminous efficacy (rated) (nom.)	56.36 lm/W
Colour consistency	<6
Color rendering index (nom.)	90
LLMF at end of nominal lifetime (nom.)	70 %
Luminous Flux in 90° Cone (Rated)	550 lm

Operating and Electrical

Power (Rated) (Nom)	11 W
Lamp current (nom.)	1300 mA
Wattage equivalent	50 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	0.7
Voltage (Nom)	12 V

Temperature

T-Case maximum (nom.)

70 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Suitable for accent lighting	Yes
Energy Consumption kWh/1000 h	13 kWh

Product Data

Full product code	871869651512900
Order product name	MAS LEDspotLV D 11-50W 927 AR111 40D
EAN/UPC – product	8718696515129
Order code	51512900
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	929001170008
Net weight (piece)	0.360 kg
