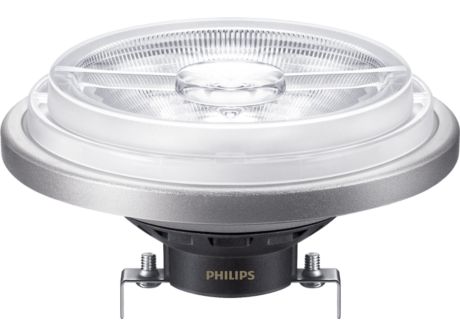

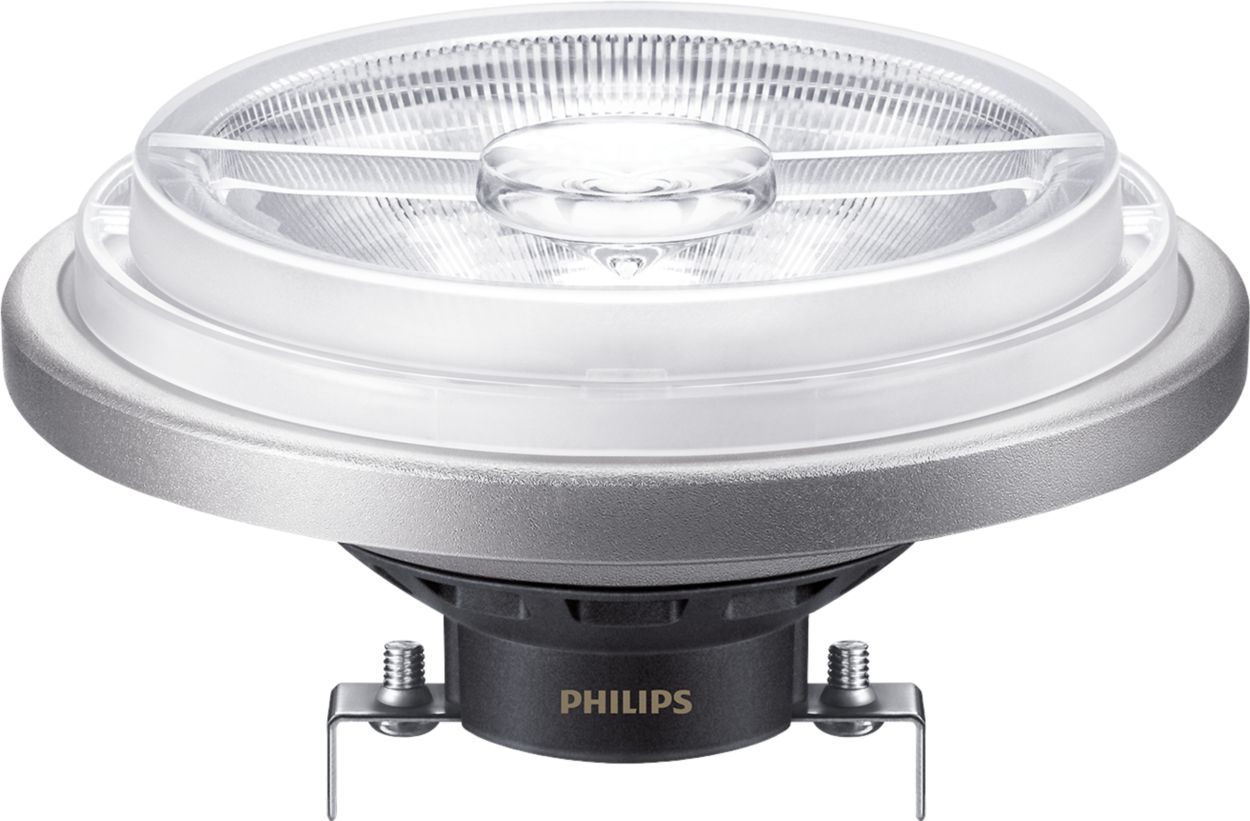

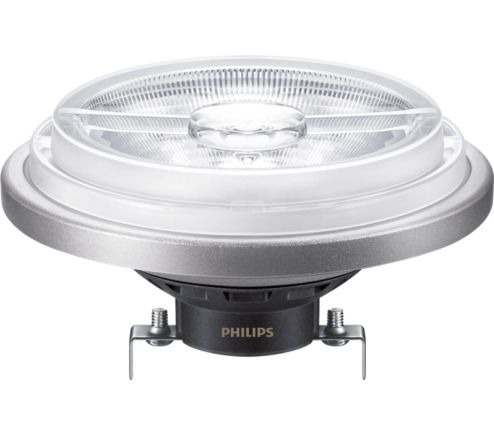

MAS LEDspotLV D 20-100W 830 AR111 12D

Specifications Show all

General Information

Cap base	G53  [ G53]
Nominal lifetime (nom.)	25000 h
Switching cycle	50000X
Technical type	20-100W

Light Technical

Colour code	830  [ CCT of 3000K]
Beam Angle (Nom)	12 °
Light distribution	12D  [ Narrow beam]
Luminous flux (nom.)	1350 lm
Luminous flux (rated) (nom.)	1350 lm
Luminous intensity (nom.)	10000 cd
Colour designation	White (WH)
Rated beam angle	12 °
Correlated colour temperature (nom.)	3000 K
Luminous efficacy (rated) (nom.)	67.50 lm/W
Colour consistency	<6
Color rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Power (Rated) (Nom)	20 W
Lamp current (nom.)	2400 mA
Wattage equivalent	100 W
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	instant full light
Power factor (nom.)	0.7
Voltage (Nom)	12 V

Temperature

T-Case maximum (nom.)

80 °C

Controls and Dimming

Dimmable

Yes

Approval and Application

Suitable for accent lighting	Yes
Energy Consumption kWh/1000 h	22 kWh

Product Data

Full product code	871869651524200
Order product name	MAS LEDspotLV D 20-100W 830 AR111 12D
EAN/UPC – product	8718696515242
Order code	51524200
Numerator – quantity per pack	1
Numerator – packs per outer box	6
Material no. (12NC)	929001170608
Net weight (piece)	0.360 kg
