| Cap base | G13
[ Medium Bi-Pin Fluorescent] |
| Main application | Industrial
|
| Nominal lifetime (nom.) | 30000
h
|
| Switching cycle | 200000X
|
| B50L70 | 30000
h
|
| Colour code | 865
[ CCT of 6500K] |
| Luminous flux (nom.) | 2700
lm
|
| Luminous flux (rated) (nom.) | 2700
lm
|
| Correlated colour temperature (nom.) | 6500
K
|
| Colour consistency | <6
|
| Color rendering index (nom.) | 80
|
| LLMF at end of nominal lifetime (nom.) | 70
%
|
| Input frequency | 50 to 60
Hz
|
| Power (Rated) (Nom) | 24
W
|
| Lamp current (nom.) | 120
mA
|
| Starting time (nom.) | 0.5
s
|
| Warm-up time to 60% light (nom.) | 0.5
s
|
| Power factor (nom.) | 0.9
|
| Voltage (Nom) | 220-240
V
|
| T ambient (max.) | 45
°C
|
| T ambient (min.) | -20
°C
|
| T storage (max.) | 65
°C
|
| T storage (min.) | -40
°C
|
| T-Case maximum (nom.) | 55
°C
|
| Dimmable | No
|
| Product length | 1500
mm
|
| Energy-saving product | Yes
|
||
| Approval marks | CE marking
|
RoHS compliance
|
KEMA Keur certificate
|
| Energy Consumption kWh/1000 h | 24
kWh
|
| Full product code | 871869680615900
|

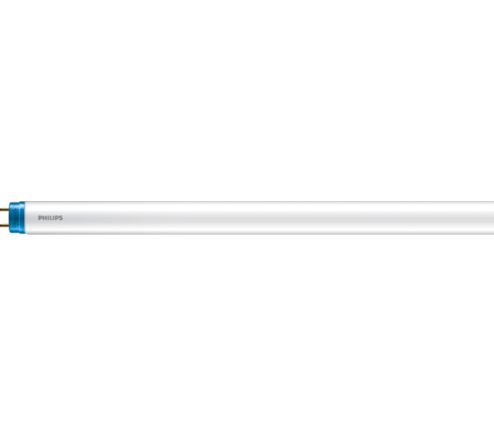

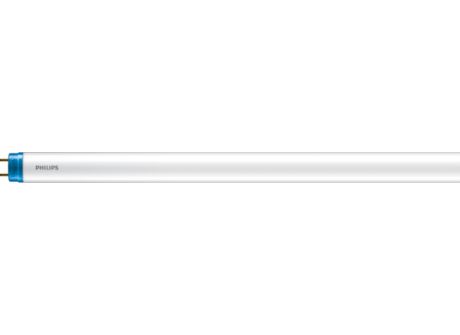

| Order product name | CorePro LEDtube 1500mm HO 24W 865 T8
|
| EAN/UPC – product | 8718696806159
|
| Order code | 80615900
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 10
|
| Material no. (12NC) | 929001875002
|
| Net weight (piece) | 0.270
kg
|
