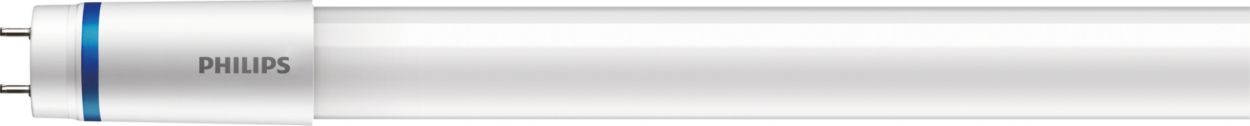

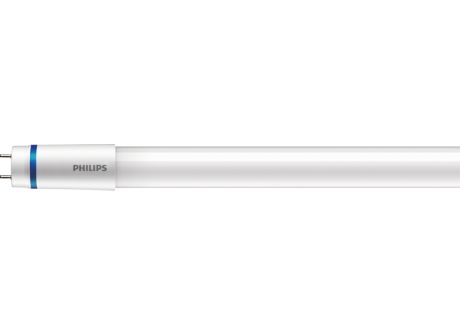

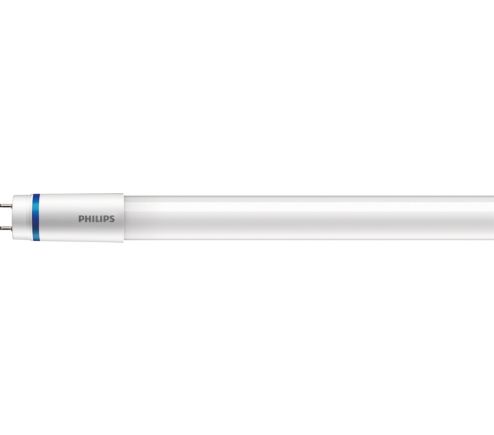

MASTER LEDtube 1800mm 25W 840 T8 ROT

Specifications Show all

General Information

Cap base	G13  [ Medium Bi-Pin Fluorescent]
Main application	Industrial
Nominal lifetime (nom.)	50000 h
Switching cycle	50000X
B50L70	50000 h

Light Technical

Colour code	841  [ CCT of 4100K (841)]
Beam Angle (Nom)	160 °
Luminous flux (nom.)	3700 lm
Luminous flux (rated) (nom.)	3700 lm
Rated beam angle	160 °
Correlated colour temperature (nom.)	4000 K
Colour consistency	<6
Color rendering index (nom.)	83
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	25 W
Lamp current (nom.)	108 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	instant full light s
Power factor (nom.)	0.9
Voltage (Nom)	220-240 V

Temperature

T ambient (max.)	30 °C
T ambient (min.)	-5 °C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	61 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Product length

1800 mm

Approval and Application

Energy-saving product	Yes
Suitable for accent lighting	No
Approval marks	CE marking	RoHS compliance	KEMA Keur certificate
Energy Consumption kWh/1000 h	25 kWh

Product Data

Full product code	871869648037300
Order product name	MASTER LEDtube 1800mm 25W 840 T8 ROT
EAN/UPC – product	8718696480373
Order code	48037300
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001161102
Net weight (piece)	0.500 kg
