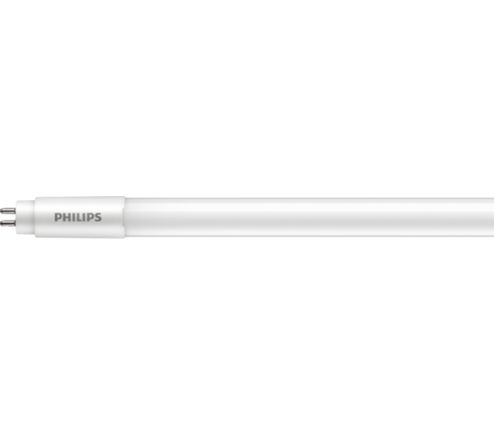

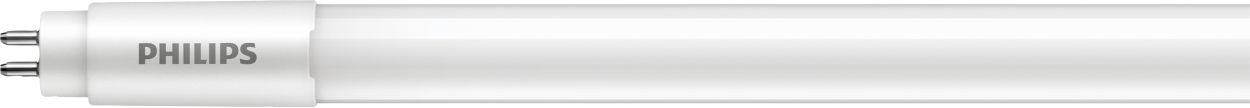

MAS LEDtube 1500mm HO 26W 830 T5

Specifications Show all

General Information

Cap base	G5  [ G5]
RoHS mark	RoHS mark
Nominal lifetime (nom.)	50000 h
Switching cycle	200000X
B50L70	50000 h

Light Technical

Colour code	830  [ CCT of 3000K]
Beam Angle (Nom)	200 °
Luminous flux (nom.)	3600 lm
Luminous flux (rated) (nom.)	3600 lm
Rated beam angle	200 °
Correlated colour temperature (nom.)	3000 K
Colour consistency	<6
Color rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Input frequency	50 to 60 Hz
Power (Rated) (Nom)	26 W
Lamp current (nom.)	150 mA
Starting time (nom.)	0.5 s
Warm-up time to 60% light (nom.)	0.5 s
Power factor (nom.)	0.9
Voltage (Nom)	220-240 V

Temperature

T ambient (max.)	45 °C
T ambient (min.)	-20 °C
T storage (max.)	65 °C
T storage (min.)	-40 °C
T-Case maximum (nom.)	67.4 °C

Controls and Dimming

Dimmable

No

Mechanical and Housing

Product length

1500 mm

Approval and Application

Energy-saving product	Yes
Approval marks	CE marking	RoHS compliance	KEMA Keur certificate
Energy Consumption kWh/1000 h	26 kWh

Product Data

Full product code	871869681929600
Order product name	MAS LEDtube 1500mm HO 26W 830 T5
EAN/UPC – product	8718696819296
Order code	81929600
Numerator – quantity per pack	1
Numerator – packs per outer box	10
Material no. (12NC)	929001908802
Net weight (piece)	0.285 kg
