Specifications Show all

General Information

ANSI Code	L74
Lamp type	180W LPS
Number of lamps	1 piece/unit
Circuit type	HX-HPF
Ballast type	Magnetic HID
Base model	71A07F0
Core size	4 1/4 x 5 3/4 (2 coil)
Suitable for outdoor use	Yes
Capacitor value	16 MFD
Capacitor catalogue number	7C160P40
Capacitor requirements	330V
Capacitor temperature rating	105°C
Capacitor diameter/oval dimensions	1.75 in
Capacitor height	3.75 in
Automatic restart	No

Operating and Electrical

Input voltage	347/480 V
Input frequency	60 Hz
Input current (open circuit)	1.82/1.33 A
Input current (starting)	0.76/0.54 A
Input current (short circuit)	0.26-0.4/0.19-0.29 A
Secondary short-circuit current	0.96-1.17 A
Constant wattage deviation	10%
Ballast factor (nom.)	1
Power factor (nom.)	0.90
Open circuit voltage	690 V
Input current (nom.)	0.62/0.45 A A
Input power (nom.)	213 W
Rated lamp power	180 W

Wiring

Wire strip length	0.5 mm
Wire length by colour	12"
Wire type	Stranded
Remote wiring configuration allowed	Yes
Max. ballast-lamp distance remote wiring	Determined by AWG used
Recommended fuse value	5/4 A

Approval and Application

Open circuit voltage test (volts)	620-755 V
Approval marks	ULR	CSA certificate	RoHS Compliant
Temperature marking	A/A
UL recognised	Yes
Hipot test (1 minute)	2000 V
Hipot test (2 seconds)	2500 V
UL insulation class	H(180°C)
UL temperature code	1029A

Product Data

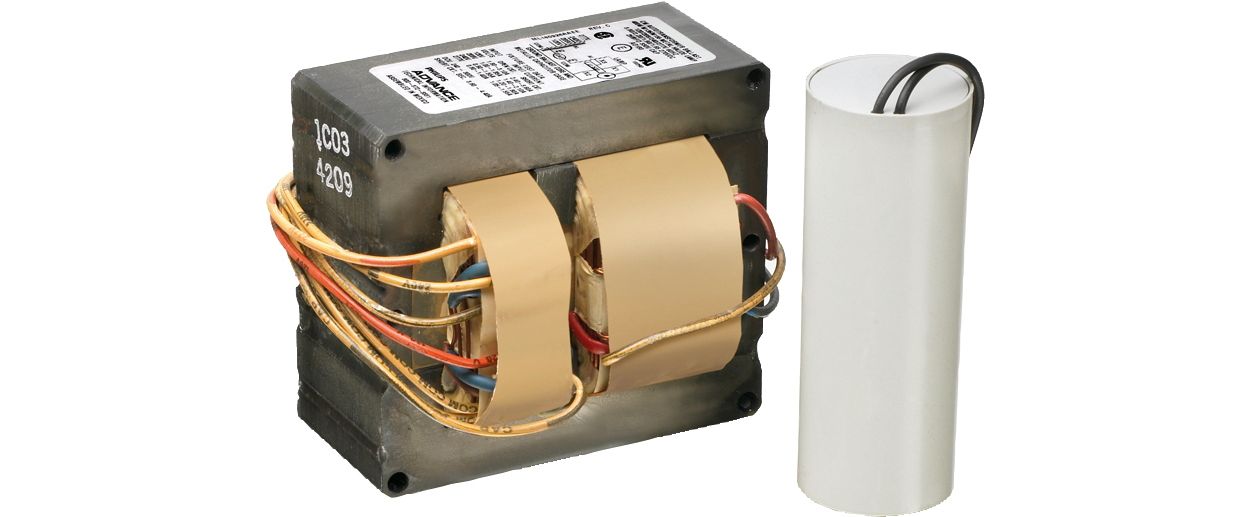

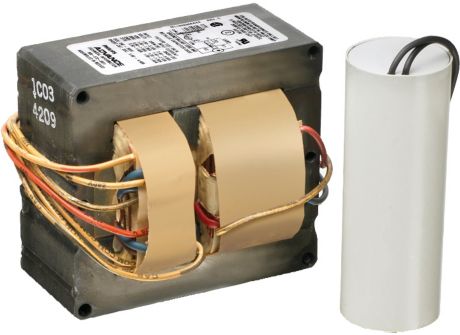

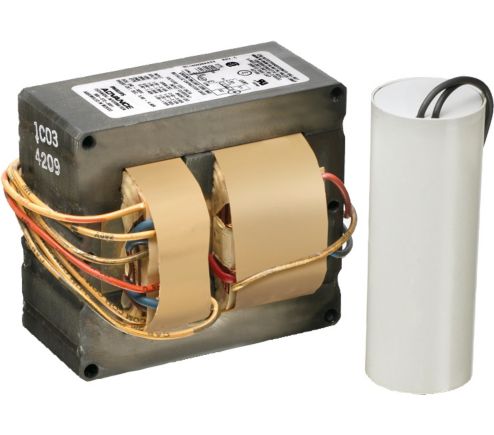

Order product name	CORE & COIL HID LPS BAL 135/180W L73/74 347/480V C&C
EAN/UPC – product	781087119907
Numerator – quantity per pack	1
Numerator – packs per outer box	3
Material no. (12NC)	913700502121
Net weight (piece)	7.009 kg
