Specifications Show all

General Information

ANSI Code	M59
Lamp type	400W MH
Number of lamps	1 piece/unit
Circuit type	CWA
Ballast type	Magnetic HID
Base model	71A6071
Core size	4 1/4 x 4 3/4 (2 coil)
Suitable for outdoor use	Yes
Ignitor catalogue number	NA
Ignitor temperature rating	NA
Capacitor value	24 MFD
Capacitor catalogue number	7C240P40R
Capacitor requirements	400V
Capacitor temperature rating	105°C
Capacitor diameter/oval dimensions	1.75 in
Capacitor height	4.8 in
Automatic restart	No

Operating and Electrical

Input voltage	120/208/240/277 V
Input frequency	60 Hz
Input current (open circuit)	3/1.8/1.5/1.35 A
Input current (starting)	3.25/1.9/1.65/1.45 A
Input current (short circuit)	2.54-3.81/1.46-2.19/1.27-1.9/1.1-1.66 A
Secondary short-circuit current	3.43-4.19 A
Constant wattage deviation	10%
Ballast factor (nom.)	1
Power factor (nom.)	0.90
Open circuit voltage	305 V
Input current (nom.)	4/2.3/2/1.72 A A
Input power (nom.)	455 W
Rated lamp power	400 W

Wiring

Wire strip length	0.5 mm
Wire length by colour	12"
Wire type	Stranded
Remote wiring configuration allowed	Yes
Max. ballast-lamp distance remote wiring	Determined by AWG used
Recommended fuse value	10/7/5/5 A

Approval and Application

Open circuit voltage test (volts)	275-335 V
Approval marks	ULR	CSA certificate	RoHS Compliant
Temperature marking	D/E/D/E
UL recognised	Yes
Hipot test (1 minute)	2000 V
Hipot test (2 seconds)	2500 V
UL insulation class	H(180°C)
UL temperature code	1029E

Product Data

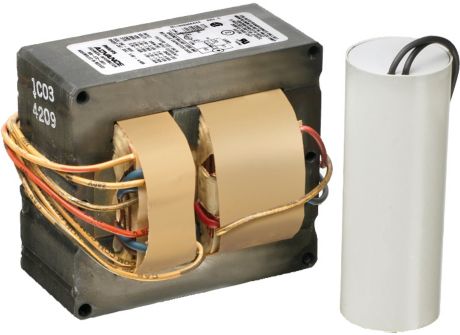

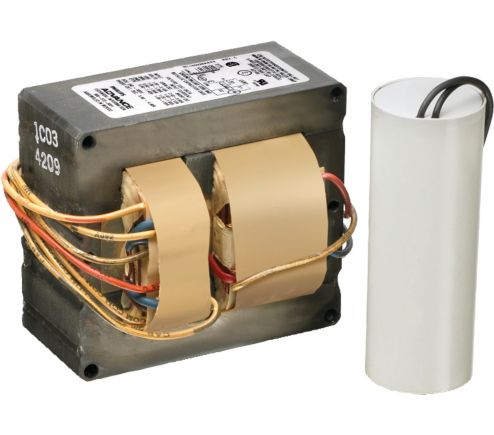

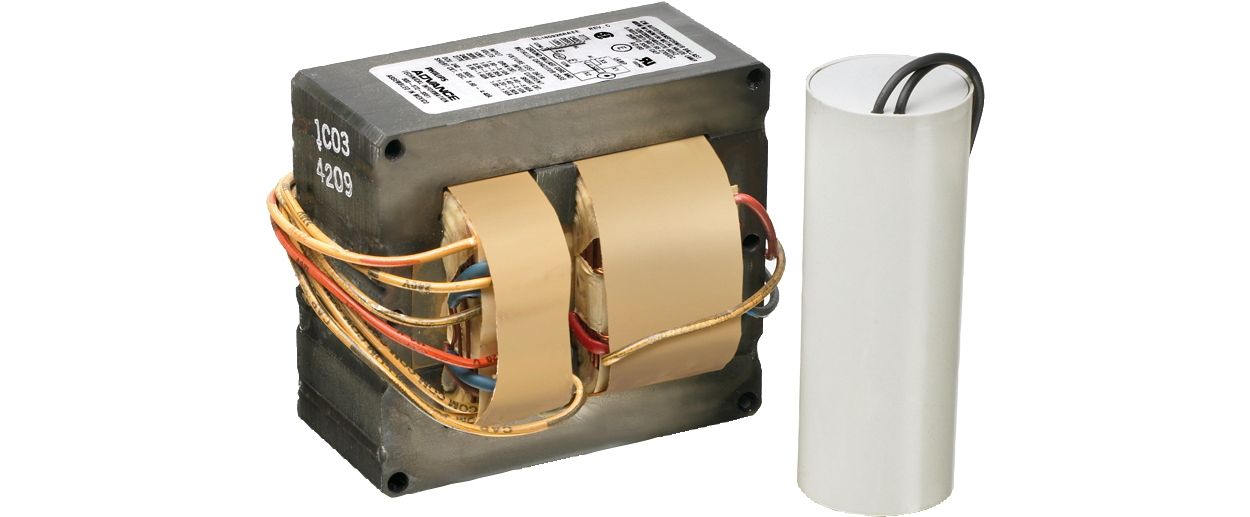

Order product name	CORE & COIL HID MH BAL 400W M59 QUAD KIT
EAN/UPC – product	781087096499
Numerator – quantity per pack	1
Numerator – packs per outer box	1
Material no. (12NC)	913700525409
Net weight (piece)	5.421 kg
