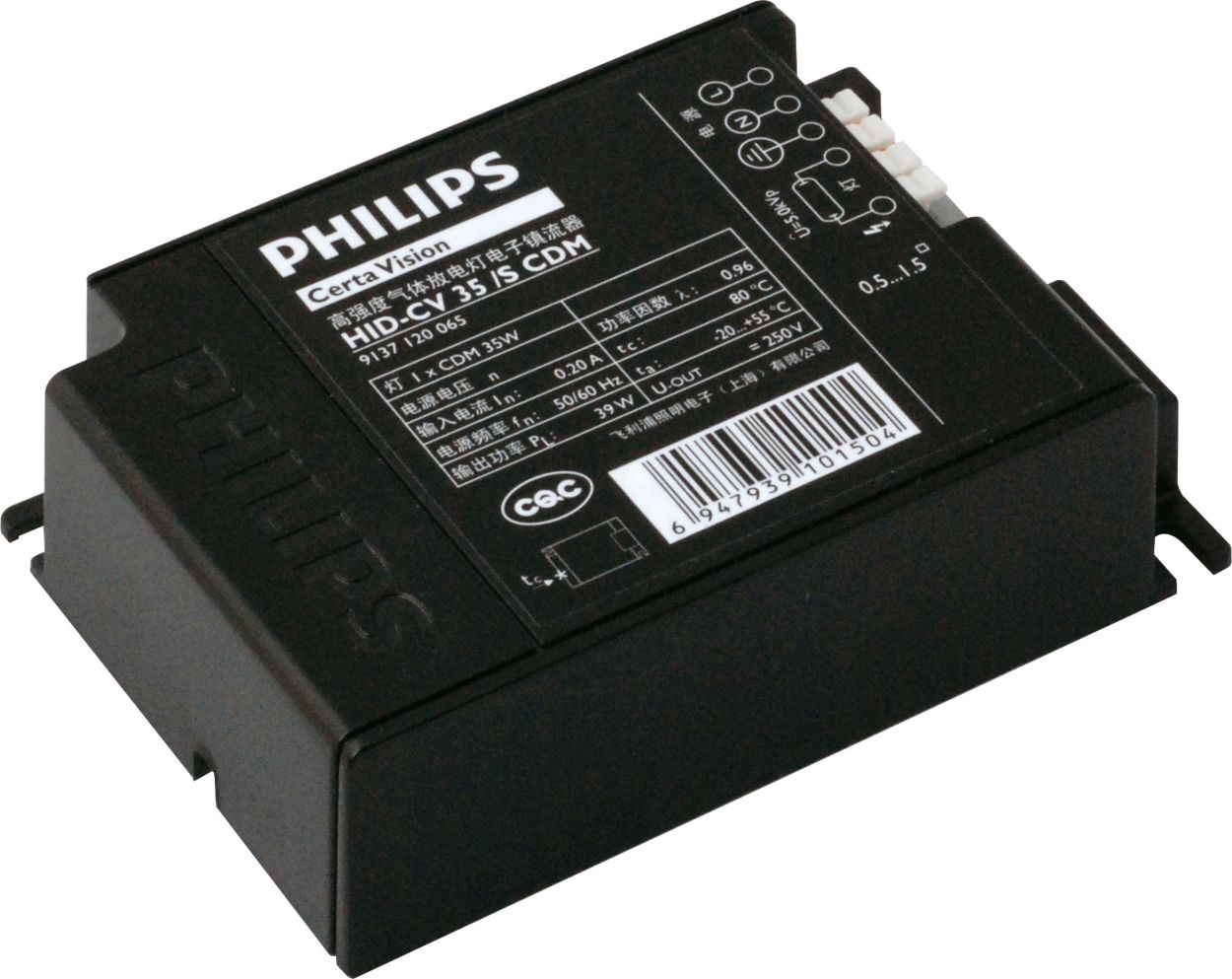

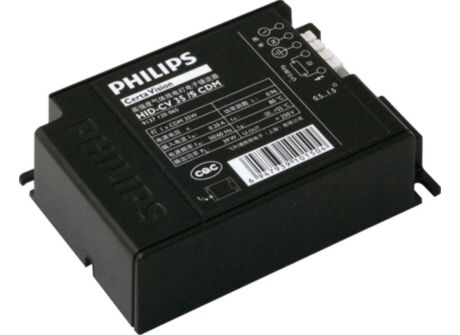

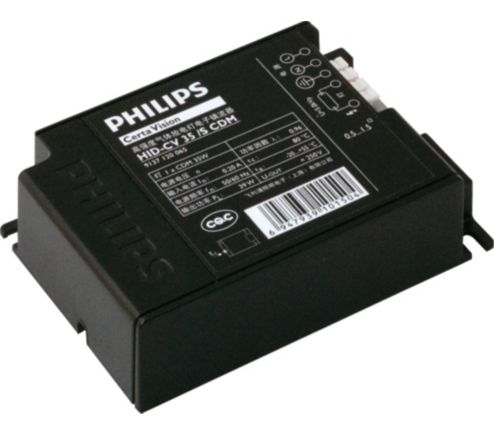

HID-CV 35 /S CDM 220-240V

Specifications Show all

General Information

Lamp type	CDM
Number of lamps	1 piece/unit
Number of products on MCB (16 A type B) (nom.)	24

Operating and Electrical

Input voltage	220 to 240 V
Input frequency	50 to 60 Hz
Minimum mains voltage operation (min.)	198 V
Power factor 100% load (nom.)	0.95
Ignition voltage (max.)	5.0 kV
Ignition voltage (min.)	3.0 kV
Mains voltage performance (AC)	198-264V
Mains voltage safety (AC)	180-264V
Output peak voltage (max.)	5000 V
Inrush current width	0.28 ms
Constant wattage deviation	-5%/+5%
Power losses (nom.)	6 W
Inrush current peak (nom.)	22.4 A

Wiring

Cable capacity output wires mutual (nom.)	120 pF
Cable length from device to lamp	2 m
Connector type	Push

System characteristics

Rated ballast-lamp power

35 W

Temperature

T ambient (max.)	55 °C
T ambient (min.)	-20 °C
T storage (max.)	80 °C
T storage (min.)	-25 °C
T case lifetime (nom.)	80 °C
T-Case maximum (max.)	80 °C

Mechanical and Housing

Housing

/S

Approval and Application

EMI 30 MHz... 1,000 MHz	CISPR15 Edition 7.1
Approval marks	CE marking

Product Data

Full product code	694793917416400
Order product name	HID-CV 35 /S CDM 220-240V
EAN/UPC – product	6947939174164
Order code	17416400
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	913712006580
Net weight (piece)	0.213 kg
