    • Dots that Ignite Creativity

      BGS302 G2 9LED 30K 24V DSC DMX
      LED

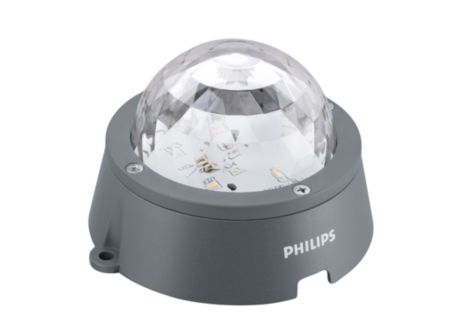

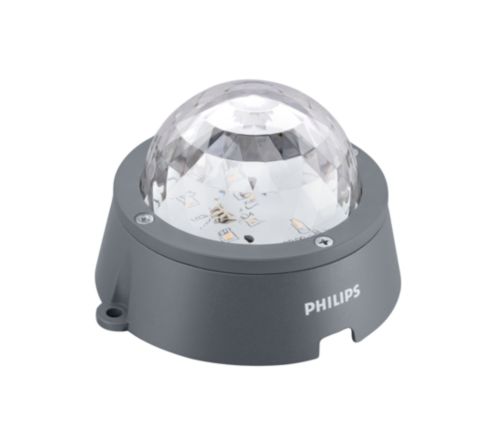

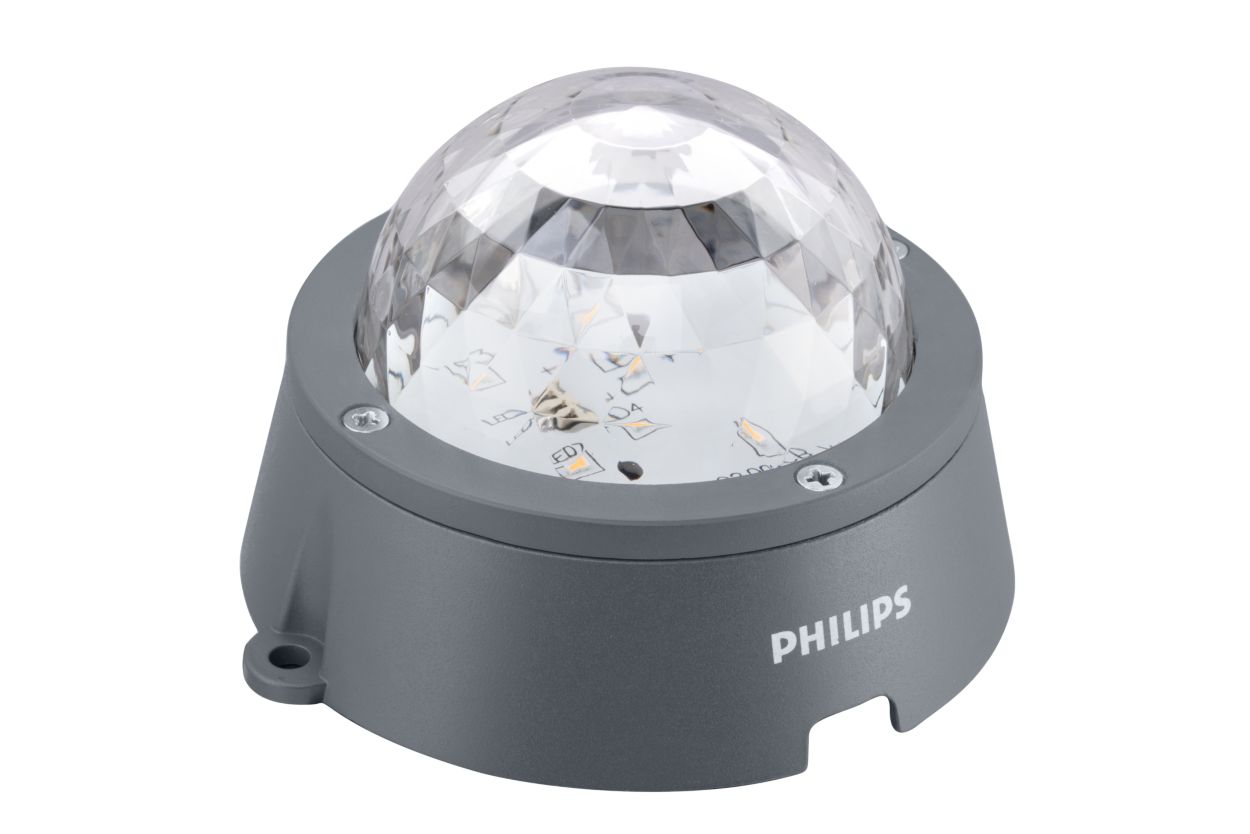

      BGS302 G2 9LED 30K 24V DSC DMX
      UniDot G2

      BGS302 G2 9LED 30K 24V DSC DMX

      Order code: 911401752792

      Full product code: 871951494570899

    Specifications Show all

    General information
    Light source color
    Warm white
    Light source replaceable
    No
    Driver/power unit/transformer
    Power supply unit external
    Driver included
    No
    Optical cover/lens type
    Polycarbonate bowl/cover spherical
    Control interface
    Dynamix DMX
    Connection
    2 Push-in connector 5-pole
    Cable
    2 cables 0.3m with connector 5-pole
    Protection class IEC
    Safety class III
    Flammability mark
    For mounting on normally flammable surfaces
    CE mark
    CE mark
    Light source engine type
    LED
    Serviceability class
    Class B, luminaire is equipped with some serviceable parts (when applicable): driver, control units, surge protection device, front cover and mechanical parts
    Light technical
    Standard tilt angle posttop
    -
    Standard tilt angle side entry
    -
    Operating and electrical
    Input Voltage
    24 DC V
    Input Frequency
    - Hz
    Power Factor (Min)
    0.9
    Controls and dimming
    Dimmable
    Yes
    Mechanical and housing
    Housing Material
    Aluminum die cast
    Optical cover/lens material
    Polycarbonate
    Mounting device
    -
    Optical cover/lens shape
    Hemispherical
    Optical cover/lens finish
    Diamond
    Overall length
    136 mm
    Overall width
    124 mm
    Overall height
    83 mm
    Overall diameter
    124 mm
    Color
    Dark gray
    Approval and application
    Ingress protection code
    IP66  [ Dust penetration-protected, jet-proof]
    Mech. impact protection code
    IK06  [ 1 J]
    Initial performance (IEC compliant)
    Initial luminous flux (system flux)
    688 lm
    Luminous flux tolerance
    +/-10%
    Initial LED luminaire efficacy
    76 lm/W
    Init. Corr. Color Temperature
    3000 K
    Init. Color Rendering Index
    80
    Initial chromaticity
    4 SDCM
    Initial input power
    9 W
    Power consumption tolerance
    +/-10%
    Application conditions
    Ambient temperature range
    -40 to +50 °C
    Maximum dim level
    1%
    Product data
    Full product code
    871951494570899
    Order product name
    BGS302 G2 9LED 30K 24V DSC DMX
    EAN/UPC - Product
    8719514945708
    Order code
    911401752792
    Numerator - Quantity Per Pack
    1
    Numerator - Packs per outer box
    18
    Material Nr. (12NC)
    911401752792
    Net Weight (Piece)
    0.388 kg
    Installation diagrams
     UniDot G2 - 688 lm - 9 W - 3000 K
    UniDot G2 - 688 lm - 9 W - 3000 K
