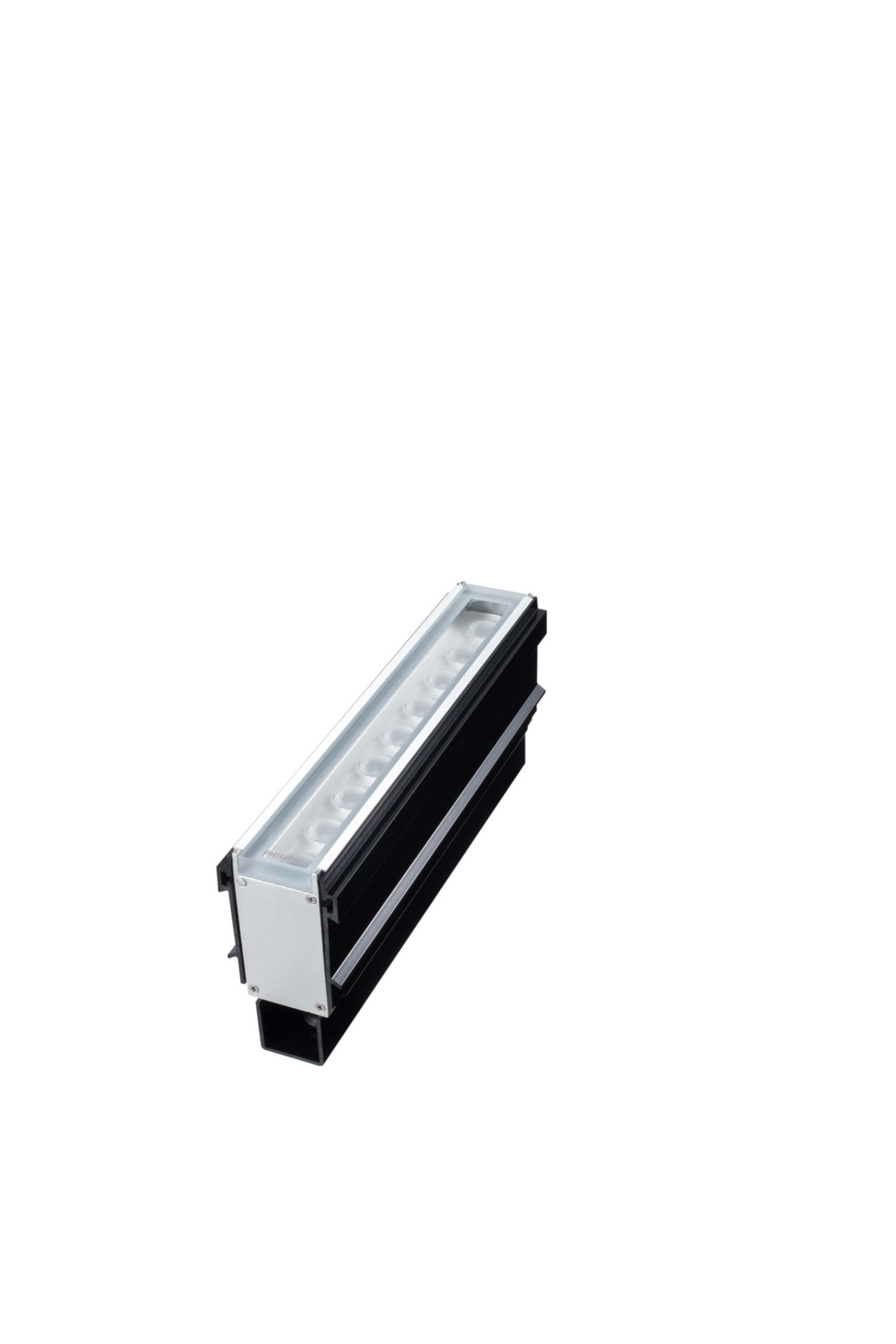

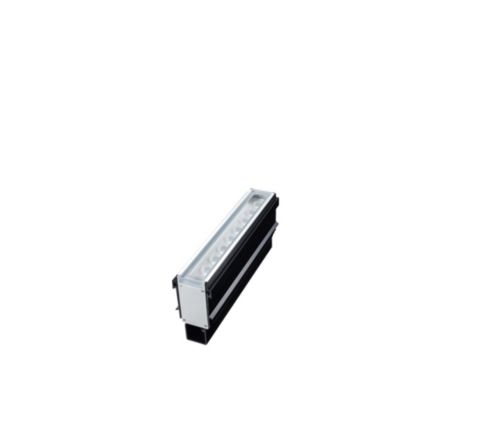

BBP420 LED 40K 24V B4 L30

Specifications Show all

General information

Light source color	840 neutral white
Driver included	No
Optical cover/lens type	Lens
Control interface	-
Connection	-
Cable	2 cables 0.3m with connector 2-pole
Protection class IEC	Safety class III
Flammability mark	-
CE mark	CE mark

Operating and electrical

Input Voltage	24 V
Input Frequency	- Hz
Power Factor (Min)	1

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum
Optical cover/lens material	Acrylate
Color	Aluminum
Dimensions (Height x Width x Depth)	NaN x NaN x NaN mm

Approval and application

Ingress protection code	IP67  [ Dust penetration-protected, watertight]
Mech. impact protection code	IK10  [ 20 J vandal-resistant]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	760 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	84.44444444444444 lm/W
Init. Corr. Color Temperature	4000 K
Init. Color Rendering Index	>80
Initial input power	9 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	871951452494199
Order product name	BBP420 LED 40K 24V B4 L30
EAN/UPC - Product	8719514524941
Order code	911401521581
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	4
Material Nr. (12NC)	911401521581
Net Weight (Piece)	1.490 kg
