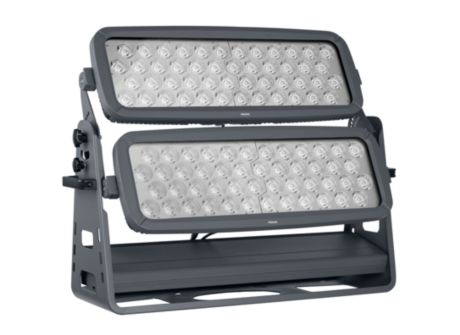

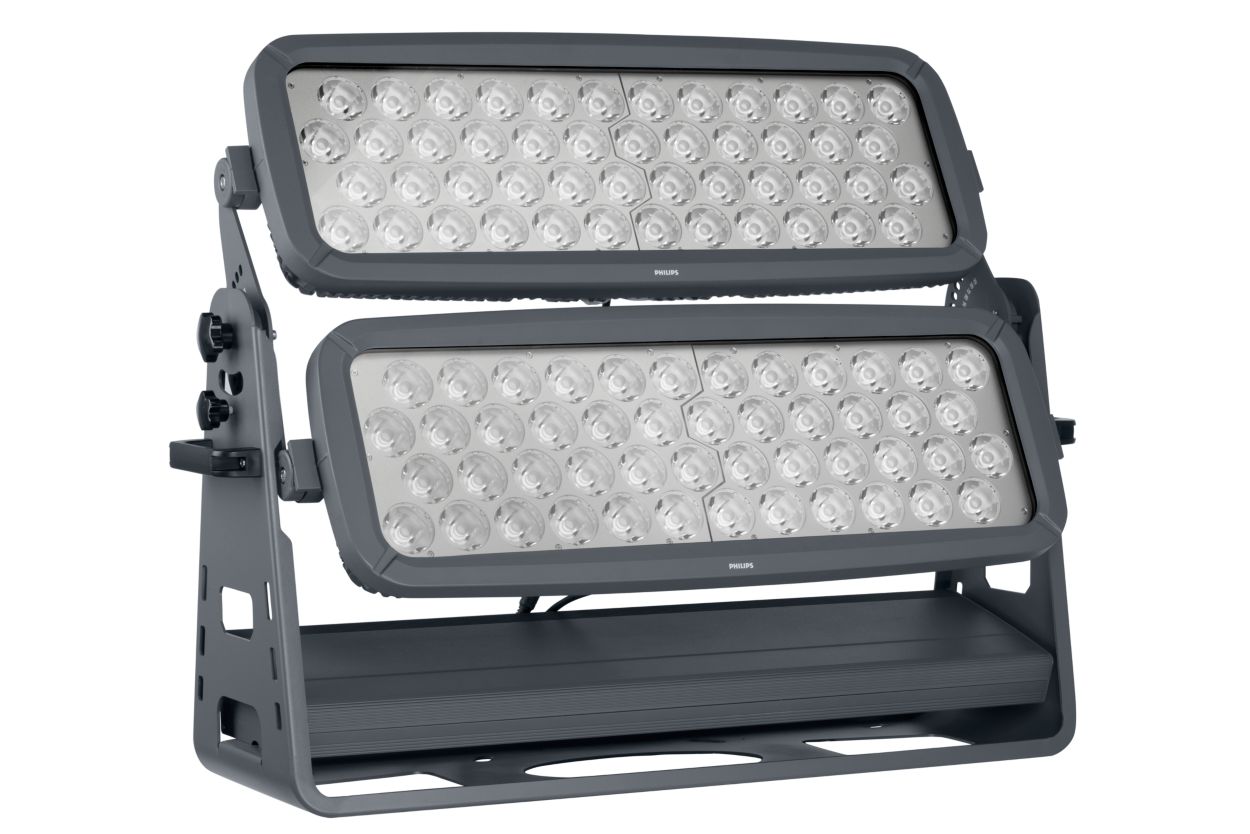

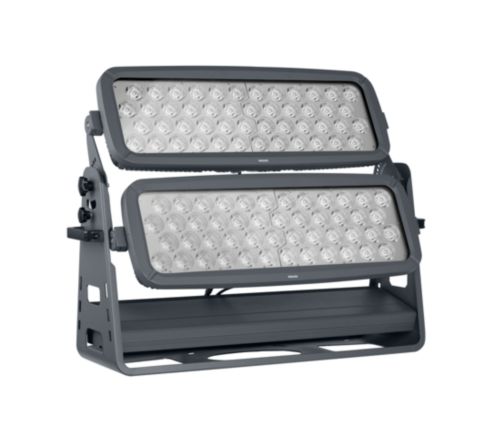

BVP344 96LED RGBNW 220V 3 DMX D2

Specifications Show all

General information

Light source color	Red, green, blue and white
Driver included	Yes
Optical cover/lens type	Tempered glass
Control interface	Dynamic DMX/RDM
Connection	Flying leads/wires and 2 Push-in connector 4-pole
Cable	Cable 0.5 m without plug 3-pole and 2 Cables 0.5 m with connector 4-pole
Protection class IEC	Safety class I
Flammability mark	For mounting on normally flammable surfaces
CE mark	CE mark

Operating and electrical

Input Voltage	220 to 240 V
Input Frequency	50 to 60 Hz
Inrush current	140 A
Power Factor (Min)	0.9

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing Material	Aluminum die cast
Optical cover/lens material	Polymethyl methacrylate
Effective projected area	1.1 m²
Color	Dark gray
Dimensions (Height x Width x Depth)	NaN x NaN x NaN mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK09  [ 10 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	10963 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	46 lm/W
Init. Corr. Color Temperature	-
Init. Color Rendering Index	-
Initial chromaticity	-
Initial input power	240 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	871951453753800
Order product name	BVP344 96LED RGBNW 220V 3 DMX D2
EAN/UPC - Product	8719514537538
Order code	911401729863
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	1
Material Nr. (12NC)	911401729863
Net Weight (Piece)	55.999 kg
