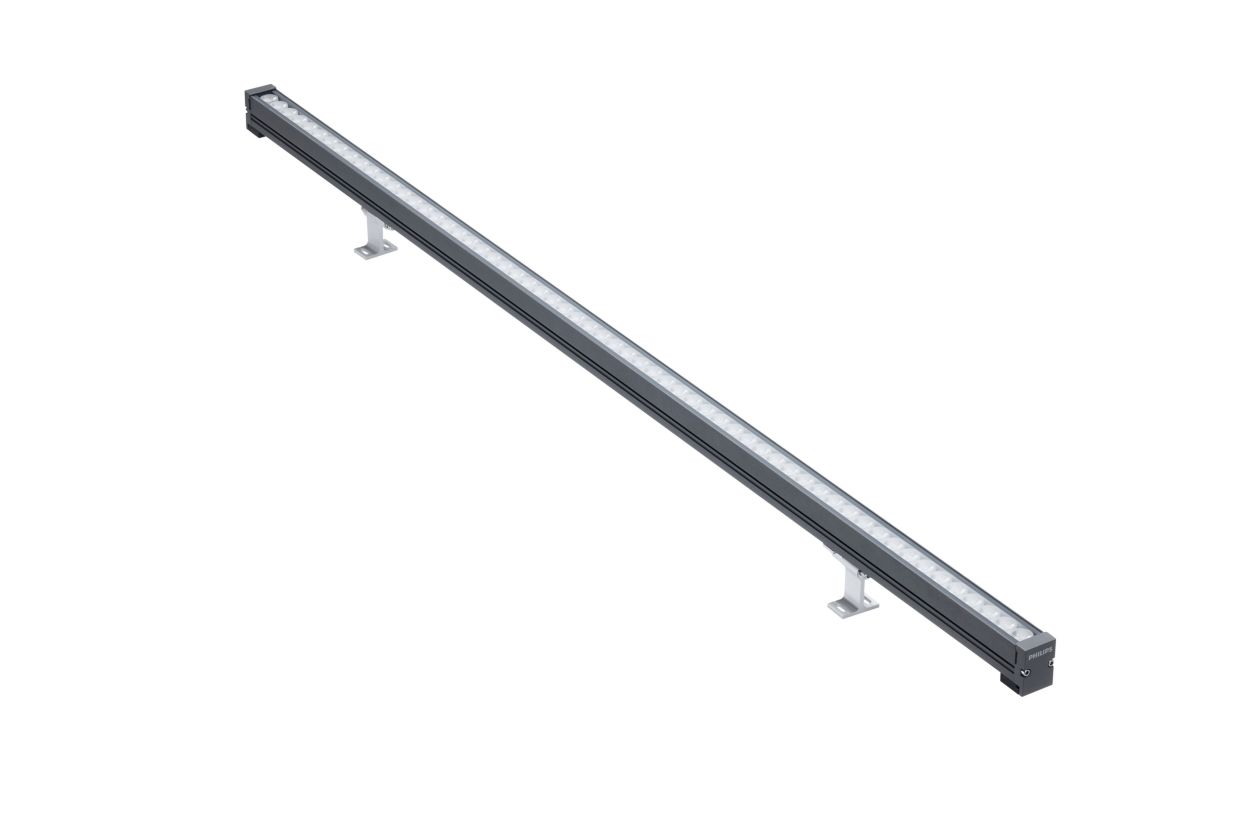

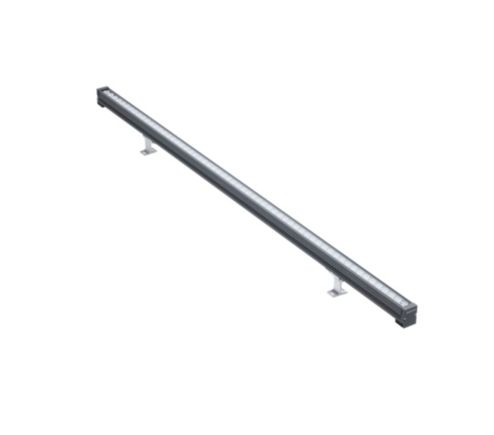

BCP386 60LED RGBWW 24V 45 L100 DMX

Specifications Show all

General information

Light source color	Red, green, blue and white
Driver included	No
Optical cover/lens type	Clear glass
Control interface	Dynamic DMX
Connection	2 Push-in connector 5-pole
Cable	2 cables 0.15m with connectors 5-pole
Protection class IEC	Safety class III
CE mark	CE mark

Operating and electrical

Input Voltage	24 DC V
Input Frequency	- Hz
Power Factor (Min)	0.9

Controls and dimming

Dimmable

Yes

Mechanical and housing

Housing Material	Aluminum extruded
Optical cover/lens material	Polymethyl methacrylate
Overall length	1000 mm
Overall width	25.4 mm
Overall height	71.6 mm
Color	Dark gray
Dimensions (Height x Width x Depth)	72 x 25 x 1000 mm

Approval and application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK06  [ 1 J]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	720 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	48 lm/W
Init. Corr. Color Temperature	-
Init. Color Rendering Index	-
Initial input power	15 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	871951451424999
Order product name	BCP386 60LED RGBWW 24V 45 L100 DMX
EAN/UPC - Product	8719514514249
Order code	911401780592
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	25
Material Nr. (12NC)	911401780592
Net Weight (Piece)	0.908 kg
