| Number of light sources | 34
[ 34 pcs] |
| Lamp family code | LED-HB
[ LED High Brightness] |
| Lamp version | 2S
[ 2nd generation, screw fixation] |
| Light source colour | Neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSU
[ Power supply unit] |
| Driver included | Yes
|
| Optical cover/lens type | GC
[ Clear glass] |
| Luminaire light beam spread | 24°
|
| Embedded control | No
[ -] |
| Control interface | -
|
| Connection | No
[ -] |
| Cable | Cable 3.0 m without plug (C3K)
|
| Protection class IEC | Safety class I (I)
|
| Luminaire shape | Round version - to be replaced by RND
|
| Coating | -
|
| Glow-wire test | 650/5
[ Temperature 650 °C, duration 5 s] |
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Green flagship mark | Green Flagship
|
| Lifetime to 70% luminous flux | 50000
h
|
| Warranty period | 3 years
|
| Mechanical accessories | No
[ -] |
| Decorative accessories | No
[ -] |
| Outdoor optic type | Medium beam
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB | 32
|
| RoHS mark | RoHS mark
|
| LED engine type | LED
|

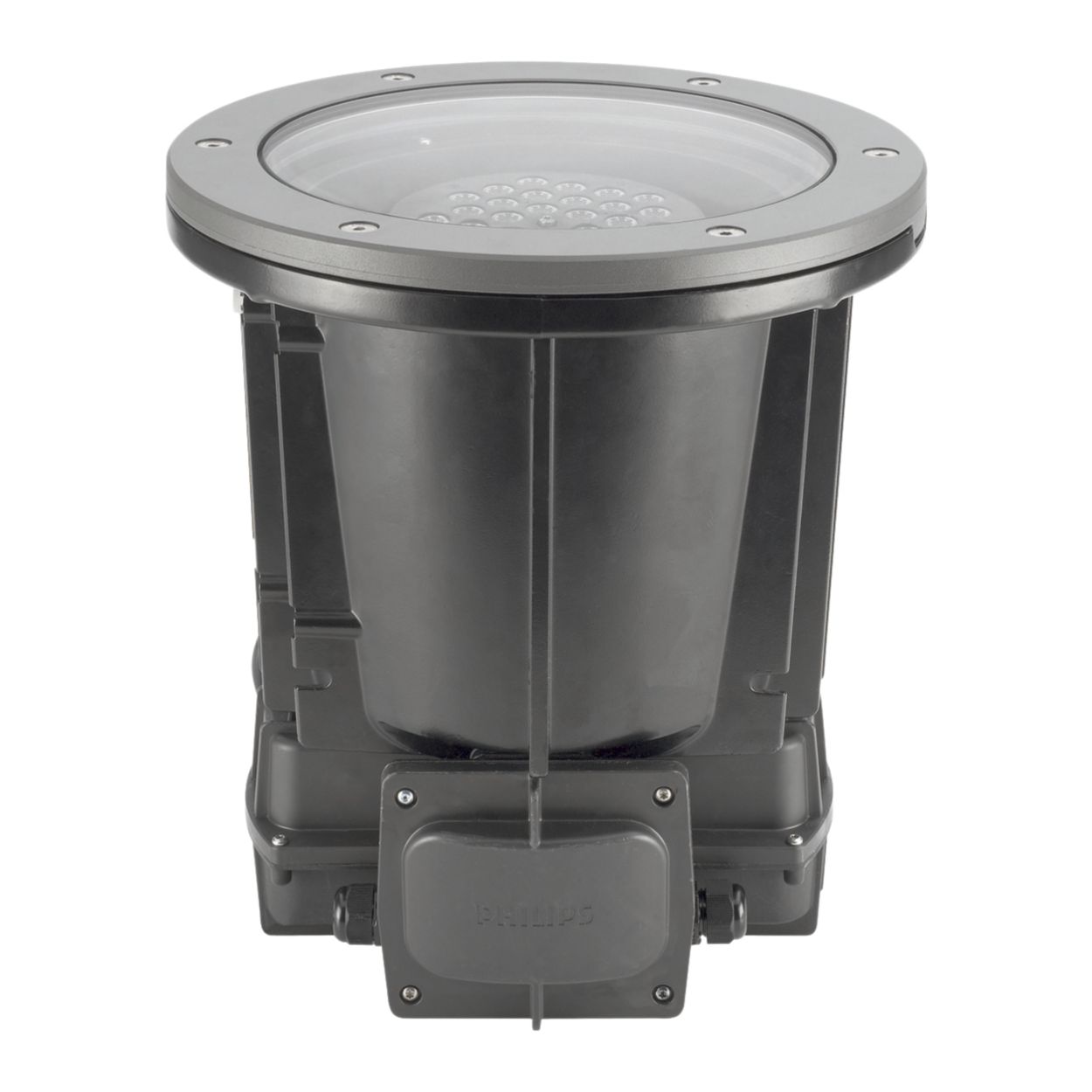

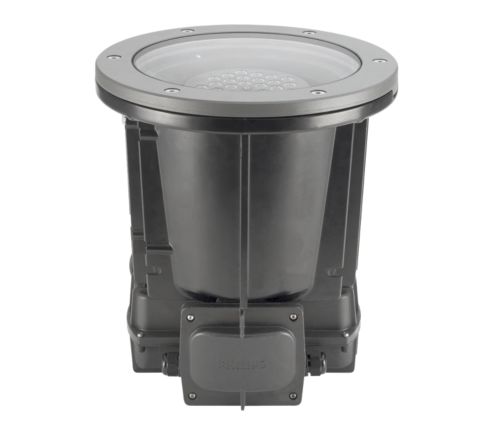

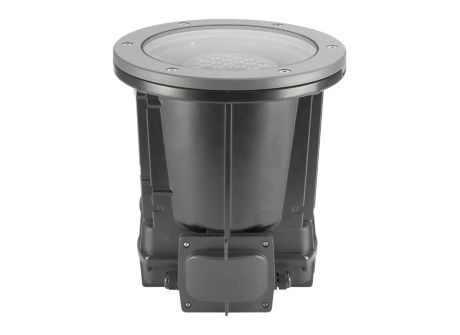

| Product Family Code | BBP623
[ DecoScene LED Accent] |
| Upward light output ratio | 0.03
|
| Standard tilt angle post-top | -
|
| Standard tilt angle side entry | -
|
| Input voltage | 100 to 277
V
|
| Input frequency | 50 to 60
Hz
|
| Inrush current | 35
A
|
| Inrush time | 0.35
ms
|
| Power factor (min.) | 0.8
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Tempered glass
|
| Fixation material | Steel
|
| Mounting device | RMR
[ Recessed mounting box round] |
| Optical cover/lens shape | Convex lens
|
| Optical cover/lens finish | Clear
|
| Overall height | 382
mm
|
| Overall diameter | 350
mm
|
| Effective projected area | 0
m²
|
| Ingress protection code | IP67
[ Dust penetration-protected, watertight] |
| Mech. impact protection code | IK10
[ 20 J vandal-resistant] |
| Initial luminous flux | 4250
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 78.7
lm/W
|
| Init. Corr. colour temperature | 4000
K
|
| Init. colour rendering index | 70
|
| Initial chromaticity | (0.367, 0.396) SDCM <3
|
| Initial input power | 54
W
|
| Power consumption tolerance | +/-10%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L80
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | Not applicable
|
| Full product code | 871829141903700
|
| Order product name | BBP623 34xLED-HB/NW I MB GC GR RMR
|
| EAN/UPC – product | 8718291419037
|
| Order code | 41903700
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910403950012
|
| Net weight (piece) | 15.400
kg
|
