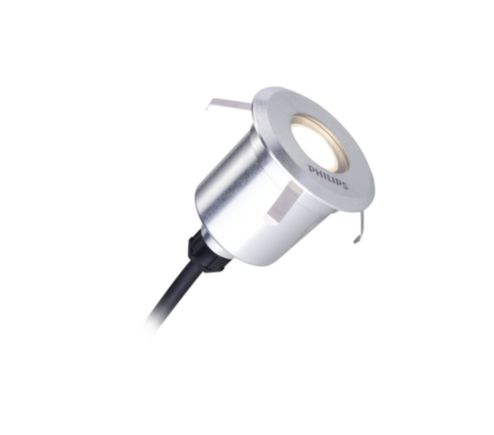

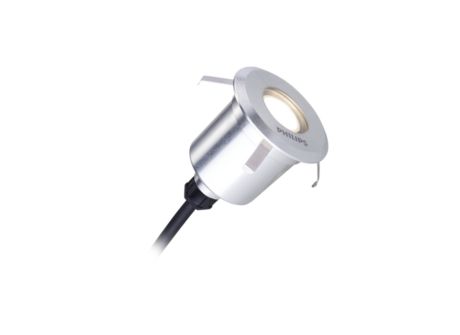

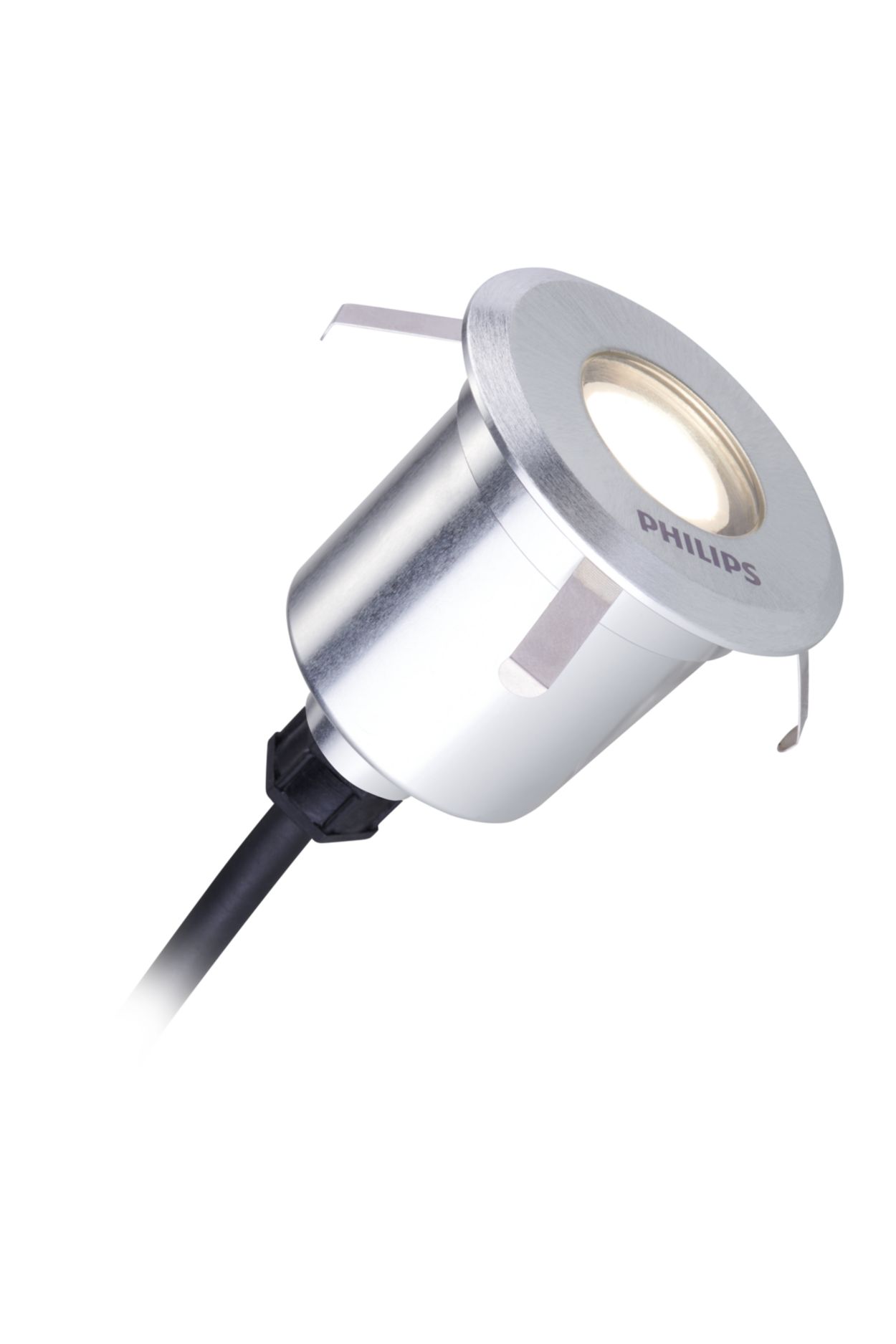

BBP211 LED90/WW 2W 12V 30D

Specifications Show all

General information

Light source color	830 warm white
Light source replaceable	No
Driver included	No
Optical cover/lens type	Polycarbonate bowl/cover flat
Control interface	-
Connection	Plug-in connector 2-pole Wieland/Adels compatible
Cable	Cable 1.0 m with plug 2-pole
Protection class IEC	Safety class III
Flammability mark	For mounting on normally flammable surfaces
CE mark	-
Light source engine type	LED
Serviceability class	Class C, luminaire without serviceable parts, not serviceable

Light technical

Standard tilt angle posttop

-

Operating and electrical

Input Voltage	12 V
Input Frequency	- Hz
Power Factor (Min)	-
Power Factor (Nom)	-

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum
Optic material	Polycarbonate
Optical cover/lens material	Acrylate
Mounting device	Recessed mounting box round
Optical cover/lens finish	Clear
Overall height	64 mm
Overall diameter	60 mm
Color	Aluminum
Dimensions (Height x Width x Depth)	64 x NaN x NaN mm

Approval and application

Ingress protection code	IP67  [ Dust penetration-protected, watertight]
Mech. impact protection code	IK10  [ 20 J vandal-resistant]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	90 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	45 lm/W
Init. Corr. Color Temperature	3000 K
Init. Color Rendering Index	>80
Initial chromaticity	(0.434, 0.403)SDCM ≤ 5
Initial input power	2 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	911401755302
Order product name	BBP211 LED90/WW 2W 12V 30D
Order code	911401755302
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	20
Material Nr. (12NC)	911401755302
Net Weight (Piece)	0.205 kg
