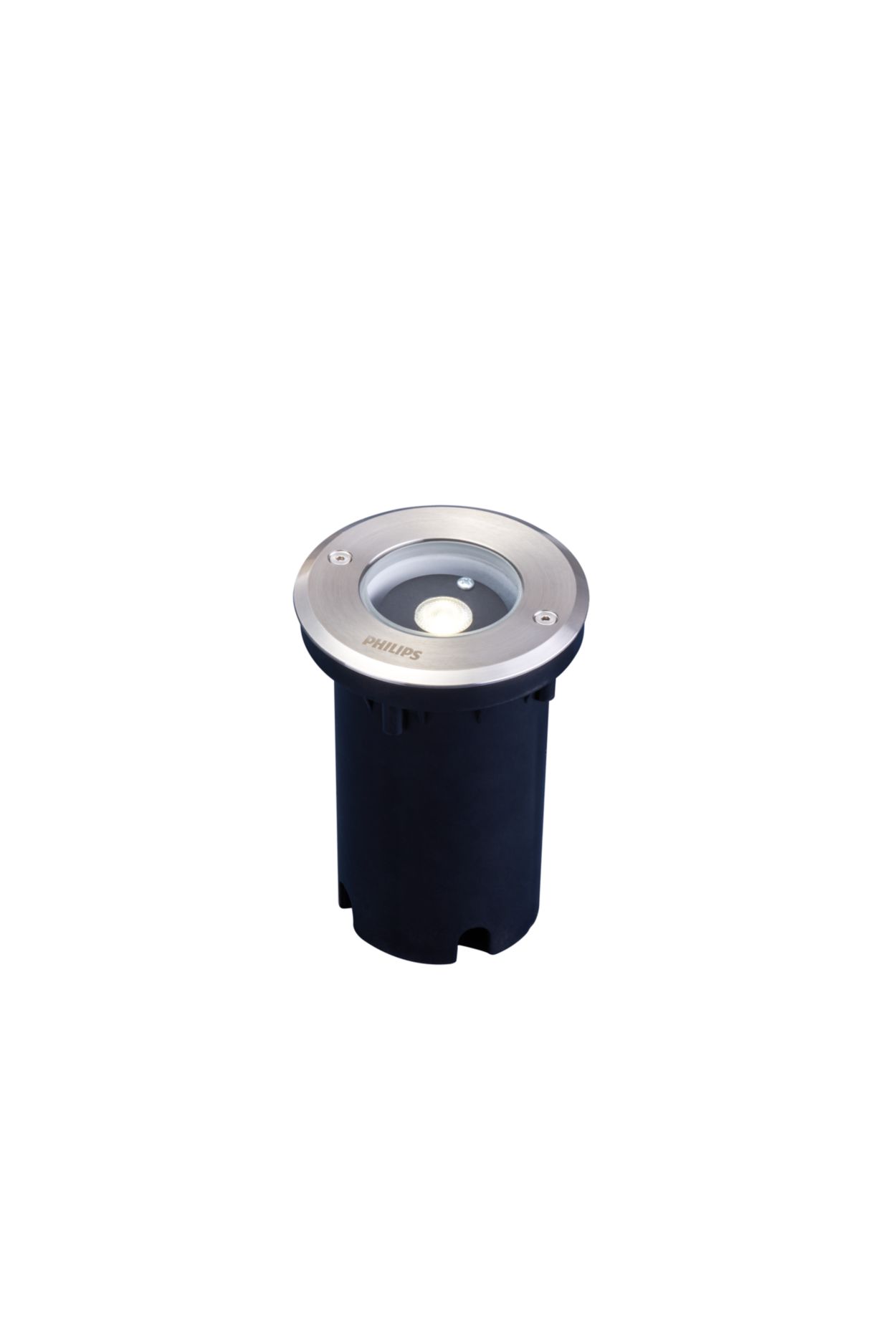

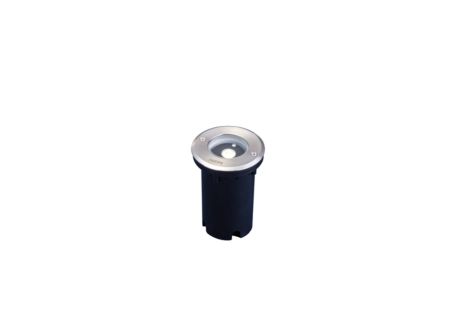

BBP340 LED220/WW 3W 20D 100-240V

Specifications Show all

General information

Light source color	730 warm white
Light source replaceable	No
Driver included	Yes
Optical cover/lens type	Glass
Control interface	-
Connection	Screw connection block 3-pole
Cable	Cable 0.3 m with connector 3-pole
Protection class IEC	Safety class I
Flammability mark	For mounting on normally flammable surfaces
CE mark	-
Light source engine type	LED
Serviceability class	Class C, luminaire without serviceable parts, not serviceable

Light technical

Standard tilt angle posttop

-

Operating and electrical

Input Voltage	100 to 240 V
Input Frequency	50 or 60 Hz
Power Factor (Min)	0.4

Controls and dimming

Dimmable

No

Mechanical and housing

Housing Material	Aluminum
Optic material	Polycarbonate
Optical cover/lens material	Polycarbonate
Mounting device	Recessed mounting box round
Optical cover/lens finish	Clear
Overall height	125 mm
Overall diameter	100 mm
Color	Steel

Approval and application

Ingress protection code	IP67  [ Dust penetration-protected, watertight]
Mech. impact protection code	IK10  [ 20 J vandal-resistant]

Initial performance (IEC compliant)

Initial luminous flux (system flux)	220 lm
Luminous flux tolerance	+/-10%
Initial LED luminaire efficacy	73 lm/W
Init. Corr. Color Temperature	3000 K
Init. Color Rendering Index	>70
Initial chromaticity	(0.434, 0.403)SDCM ≤ 5
Initial input power	3 W
Power consumption tolerance	+/-10%

Application conditions

Ambient temperature range

-40 to +50 °C

Product data

Full product code	871951494824299
Order product name	BBP340 LED220/WW 3W 20D 100-240V
EAN/UPC - Product	8719514948242
Order code	911401755332
Numerator - Quantity Per Pack	1
Numerator - Packs per outer box	8
Material Nr. (12NC)	911401755332
Net Weight (Piece)	0.410 kg
