| Number of light sources | 64
[ 64 pcs] |
| Lamp family code | GRN145
[ LED GreenLine 14500 lm] |
| Light source colour | 740 neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSD
[ Power supply unit with DALI interface] |
| Driver included | Yes
|
| Optical cover/lens type | FG
[ Flat glass] |
| Luminaire light beam spread | 180°
|
| Embedded control | No
[ -] |
| Control interface | DALI
|
| Light regulation | Dimming via external communication DALI
|
| Electrical circuit protection | -
|
| Connection | No
[ -] |
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Parts colour | Cover painted
|
| Coating | -
|
| Glow-wire test | 650/30
[ Temperature 650 °C, duration 30 s] |
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium
|
| Constant light output | No
|
| Spare parts available | Yes
|
| Number of products on MCB | 11
|
| Photobiological risk | Risk group 1
|
| RoHS mark | RoHS mark
|
| WEEE mark | -
|
| LED engine type | LED
|

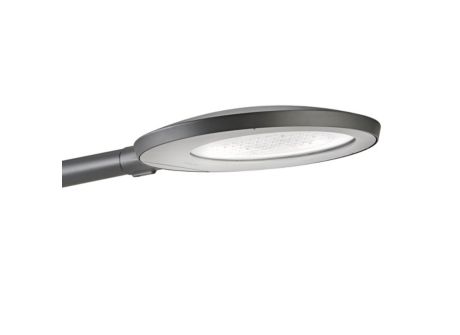

| Product Family Code | BRP531
[ CitySoul gen2 Large] |
| Upward light output ratio | 0.03
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Control signal voltage | 1-10 V DC
|
| Inrush current | 53
A
|
| Inrush time | 0.3
ms
|
| Power factor (min.) | 0.8
|
| Dimmable | Yes
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polymethyl methacrylate
|
| Optical cover/lens material | Polymethyl methacrylate
|
| Fixation material | Aluminum
|
| Mounting device | 60S
[ Side-entry for diameter 60 mm] |
| Optical cover/lens shape | Convex lens
|
| Optical cover/lens finish | Mask (anti-glare)
|
| Overall length | 735
mm
|
| Overall width | 628
mm
|
| Overall height | 106
mm
|
| Effective projected area | 0.029
m²
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK08
[ 5 J vandal-protected] |
| Initial luminous flux | 11882
lm
|
| Luminous flux tolerance | +/-10%
|
| Initial LED luminaire efficacy | 122
lm/W
|
| Init. Corr. colour temperature | 4000
K
|
| Init. colour rendering index | >70
|
| Initial chromaticity | (0.38,0.37) SDCM<5
|
| Initial input power | 97
W
|
| Power consumption tolerance | +/-10%
|
| Ambient temperature range | -40 to +50 °C
|
| Maximum dimming level | 20%
|
| Full product code | 871869661342900
|
| Order product name | BRP531 GRN145-/740 I DM FG CO GR D9 T35
|
| EAN/UPC – product | 8718696613429
|
| Order code | 61342900
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910505016882
|
| Net weight (piece) | 18.000
kg
|
