| Lamp family code | GRN60
[ LED GreenLine 6000 lm] |
| Light source colour | 830 warm white
|
| Light source colour 2 | -
|
| Light source replaceable | No
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSU
[ Power supply unit] |
| Driver included | Yes
|
| Optical cover/lens type | PC-UV
[ Polycarbonate bowl/cover UV-resistant] |
| Luminaire light beam spread | 148° x 148°
|
| Embedded control | CLO
[ Constant light output] |
| Light regulation | -
|
| Connection | CU3
[ Connection unit 3-pole] |
| Cable | Cable 1.8 m without plug
|
| Protection class IEC | Safety class I (I)
|
| Glow-wire test | 650/5
[ Temperature 650 °C, duration 5 s] |
| Flammability mark | F
[ For mounting on normally flammable surfaces] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 3 years
|
| Outdoor optic type | Distribution symmetrical
|
| Photocell | No
[ -] |
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | Yes
|
| Number of products on MCB | 9
|
| RoHS mark | RoHS mark
|
| LED engine type | LED
|

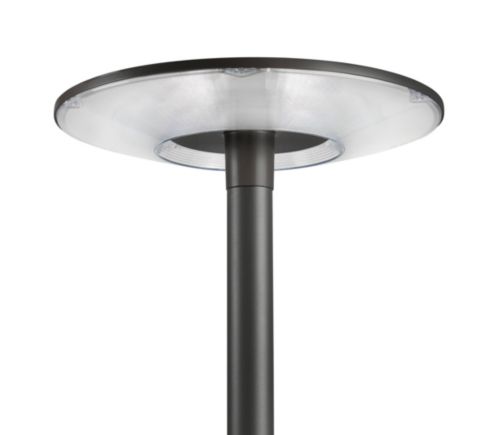

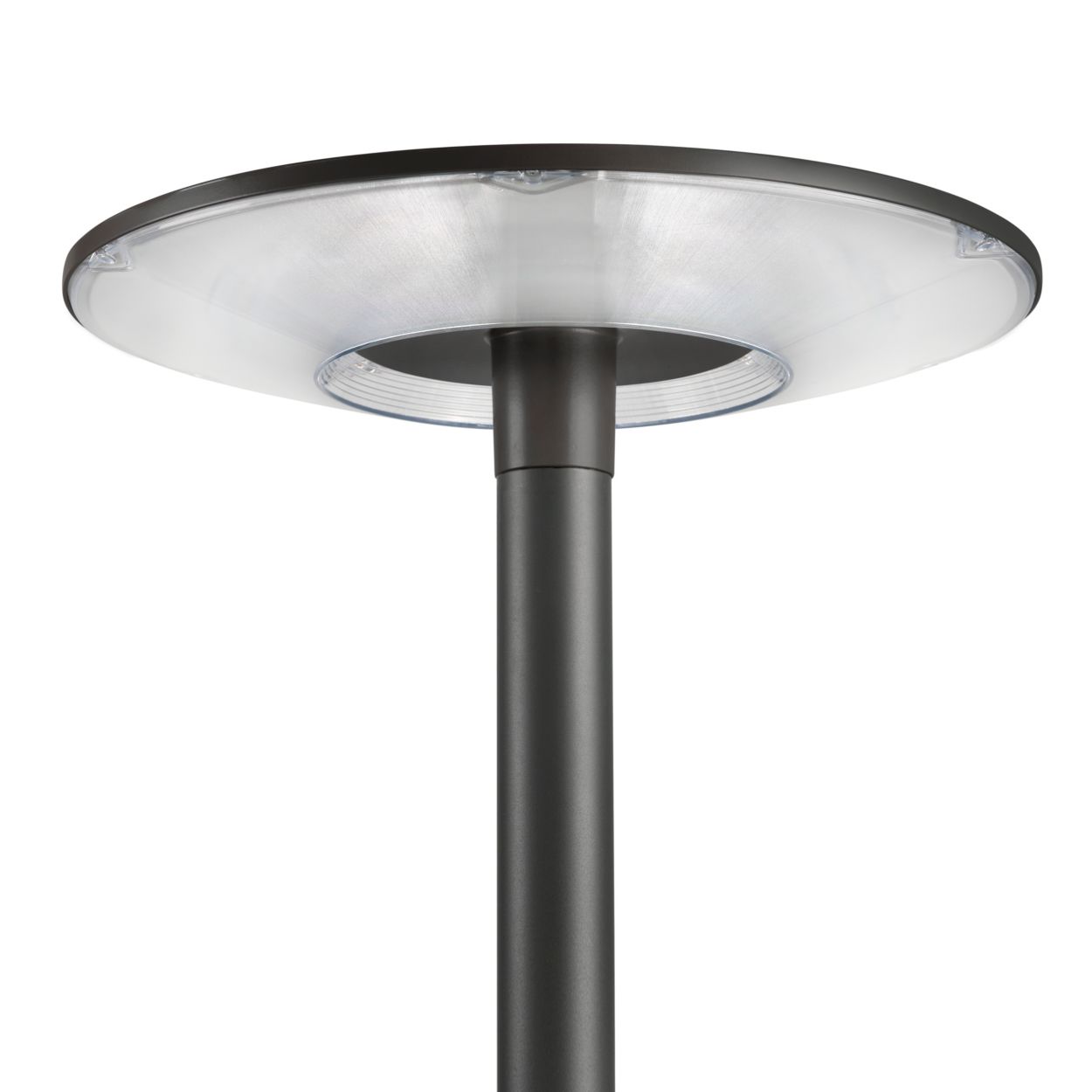

| Product Family Code | BDP780
[ CitySphere] |
| Upward light output ratio | 0.03
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Initial CLO power consumption | 44
W
|
| Average CLO power consumption | 49.5
W
|
| End CLO power consumption | 55
W
|
| Inrush current | 70
A
|
| Inrush time | 0.19
ms
|
| Power factor (min.) | 0.9
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | Polycarbonate
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Polycarbonate
|
| Fixation material | Aluminum
|
| Mounting device | 60P
[ Post-top for diameter 60 mm] |
| Optical cover/lens shape | Conical
|
| Optical cover/lens finish | Ribbed
|
| Overall height | 662
mm
|
| Overall diameter | 661
mm
|
| Effective projected area | 0.343
m²
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK10
[ 20 J vandal-resistant] |
| Surge protection (common/differential) | Philips standard surge protection level
kV
|
| Initial luminous flux | 4590
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 83
lm/W
|
| Init. Corr. colour temperature | 3000
K
|
| Init. colour rendering index | 80
|
| Initial chromaticity | (0.410, 0.390) SDCM <3
|
| Initial input power | 55
W
|
| Power consumption tolerance | +/-11%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L100
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Full product code | 871794317633500
|
| Order product name | BDP780 GRN60/830 PSU DS RB DGR CLO 60P
|
| EAN/UPC – product | 8717943176335
|
| Order code | 17633500
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 912300022679
|
| Net weight (piece) | 10.000
kg
|
