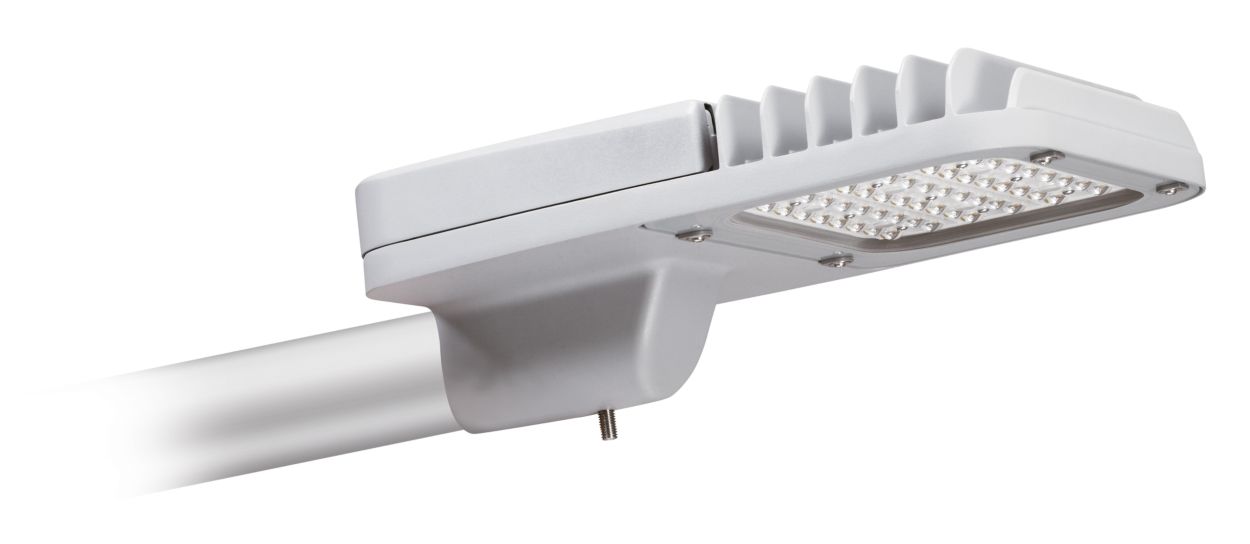

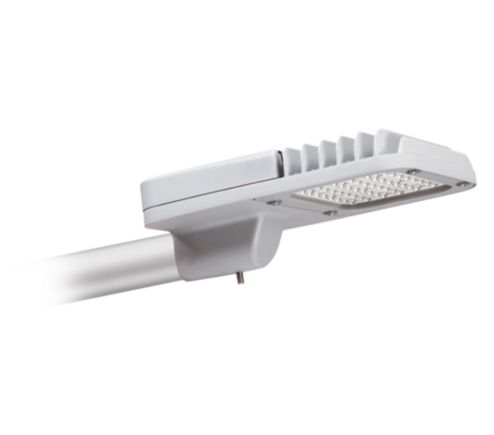

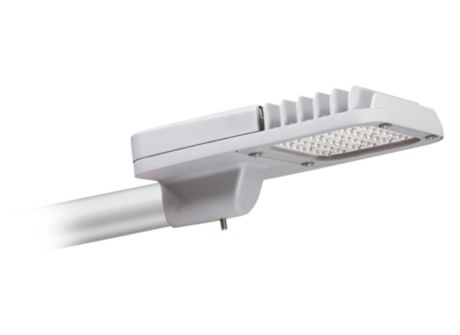

BRP371 LED126NW 110W 220-240V DM MP1 CT

Specifications Show all

General Information

Light source colour	740 neutral white
Driver/power unit/transformer	PSD  [ Power supply unit with DALI interface]
Driver included	Yes
Protection class IEC	Safety class I (I)
CE mark	CE mark
ENEC mark	-
UL mark	-
Constant light output	No

Operating and Electrical

Input voltage	220-240 V
Input frequency	50 to 60 Hz
Power factor (nom.)	0.95 (nominal power)

Controls and Dimming

Dimmable

Yes

Mechanical and Housing

Housing material	Aluminum
Optic material	Polycarbonate
Fixation material	Aluminum

Approval and Application

Ingress protection code	IP66  [ Dust penetration-protected, jet-proof]
Mech. impact protection code	IK08  [ 5 J vandal-protected]

Initial Performance (IEC Compliant)

Initial luminous flux	11600 lm
Initial LED luminaire efficacy	105.5 lm/W
Init. Corr. colour temperature	4000 K
Initial input power	110 W

Application Conditions

Ambient temperature range	-40 to +50 °C
Maximum dimming level	10%

Product Data

Full product code	911401694202
Order product name	BRP371 LED126NW 110W 220-240V DM MP1 CT
Order code	01694202
Numerator – quantity per pack	1
Numerator – packs per outer box	1
Material no. (12NC)	911401694202
Net weight (piece)	7.000 kg
