| Lamp family code | LED10
[ LED Module 1000 lm] |
| Light source colour | 740 neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSU
[ Power supply unit] |
| Driver included | Yes
|
| Optical cover/lens type | FG
[ Flat glass] |
| Luminaire light beam spread | 154°
|
| Control interface | -
|
| Connection | SI
[ Screw connection block] |
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Flammability mark | NO
[ -] |
| CE mark | -
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium 10
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB | 20
|
| RoHS mark | -
|
| LED engine type | LED
|

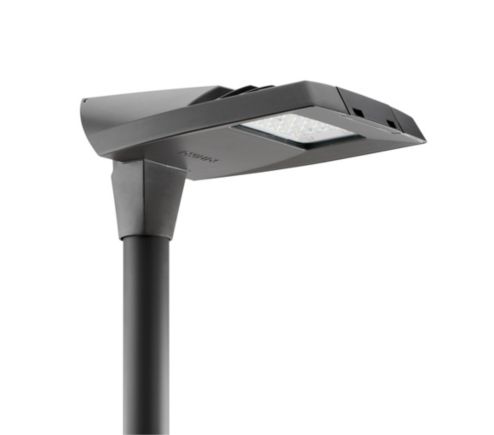

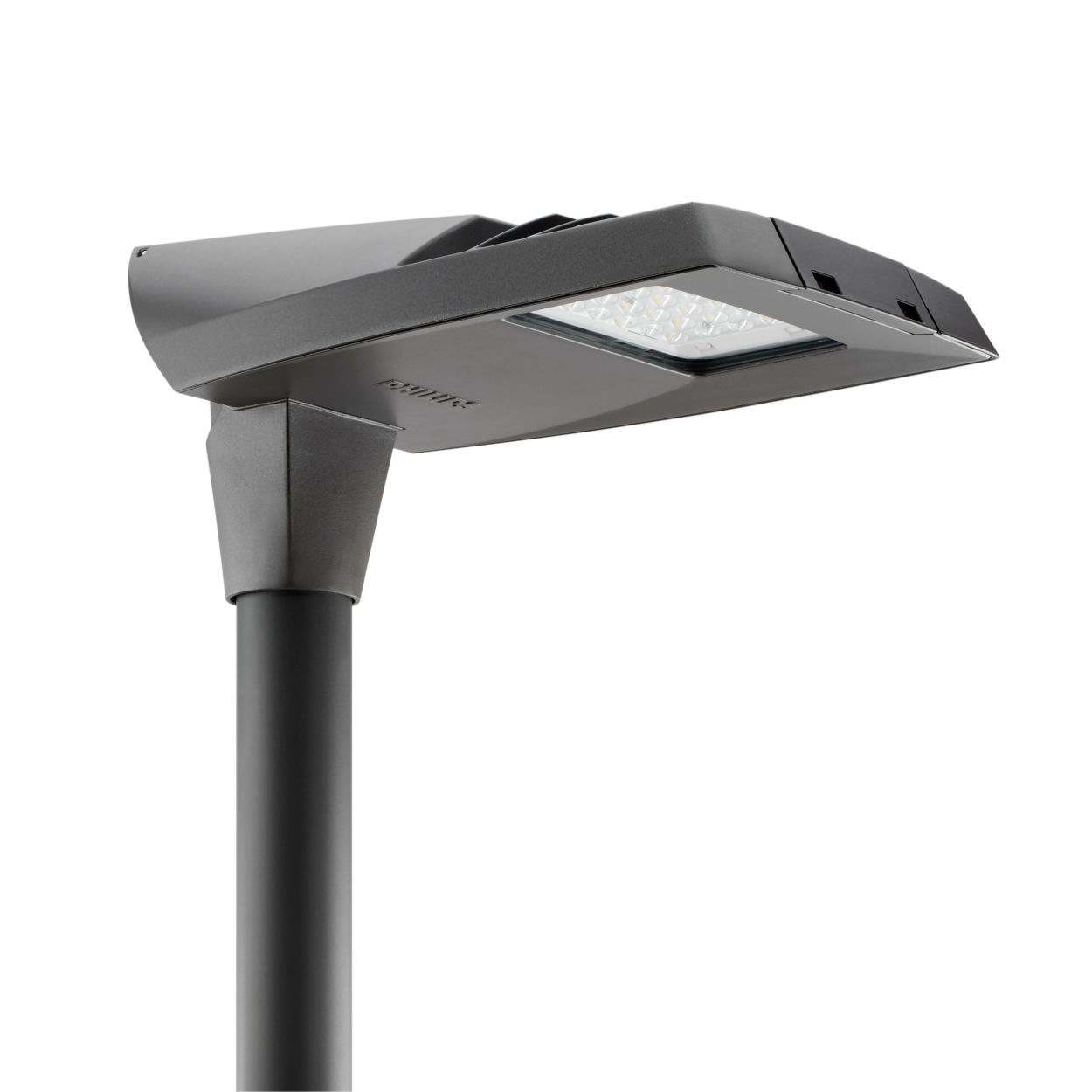

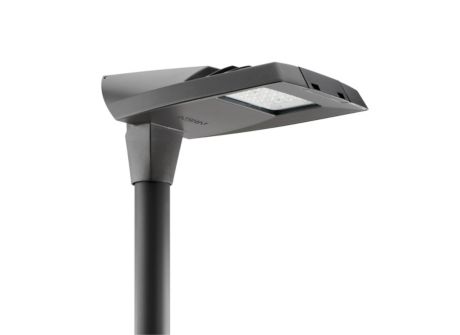

| Product Family Code | BGP615
[ LUMA MICRO] |
| Upward light output ratio | 0
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Initial CLO power consumption | -
W
|
| Average CLO power consumption | -
W
|
| End CLO power consumption | -
W
|
| Inrush current | 15
A
|
| Inrush time | 0.36
ms
|
| Power factor (min.) | 0.93
|
| Dimmable | No
|
| Housing material | Aluminum
|
| Reflector material | Polycarbonate
|
| Optic material | Polycarbonate
|
| Optical cover/lens material | Glass
|
| Fixation material | Aluminum
|
| Mounting device | 62
[ Spigot for diameter 62 mm] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Clear
|
| Overall length | 622
mm
|
| Overall width | 290
mm
|
| Overall height | 130
mm
|
| Effective projected area | 0.049
m²
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK09
[ 10 J] |
| Surge protection (common/differential) | Surge protection level until 10
kV
|
| Initial luminous flux | 900
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 125
lm/W
|
| Init. Corr. colour temperature | 4000
K
|
| Init. colour rendering index | 70
|
| Initial chromaticity | (0.381, 0.379) SDCM <5
|
| Initial input power | 7.2
W
|
| Power consumption tolerance | +/-11%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L96
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | Not applicable
|
| Full product code | 871869637253100
|
| Order product name | BGP615 LED10-4S/740 PSU I DM10 GR SRG10
|
| EAN/UPC – product | 8718696372531
|
| Order code | 37253100
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910925452126
|
| Net weight (piece) | 6.810
kg
|
