| Lamp family code | LED30
[ LED module 3000 lm] |
| Lamp version | 4S
[ 4th generation, screw fixation] |
| Light source colour | 830 warm white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSR
[ Power supply unit regulating] |
| Driver included | Yes
|
| Optical cover/lens type | FG
[ Flat glass] |
| Luminaire light beam spread | 30° - 5° x 153°
|
| Control interface | Analog
|
| Connection | Plug-in connector 3-pole Wieland/Adels compatible and 2x 2-pole control signal for light regulation
|
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium 50
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB | 11
|
| RoHS mark | RoHS mark
|
| LED engine type | LED
|

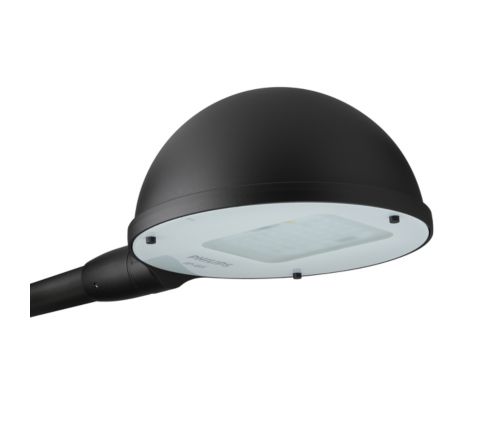

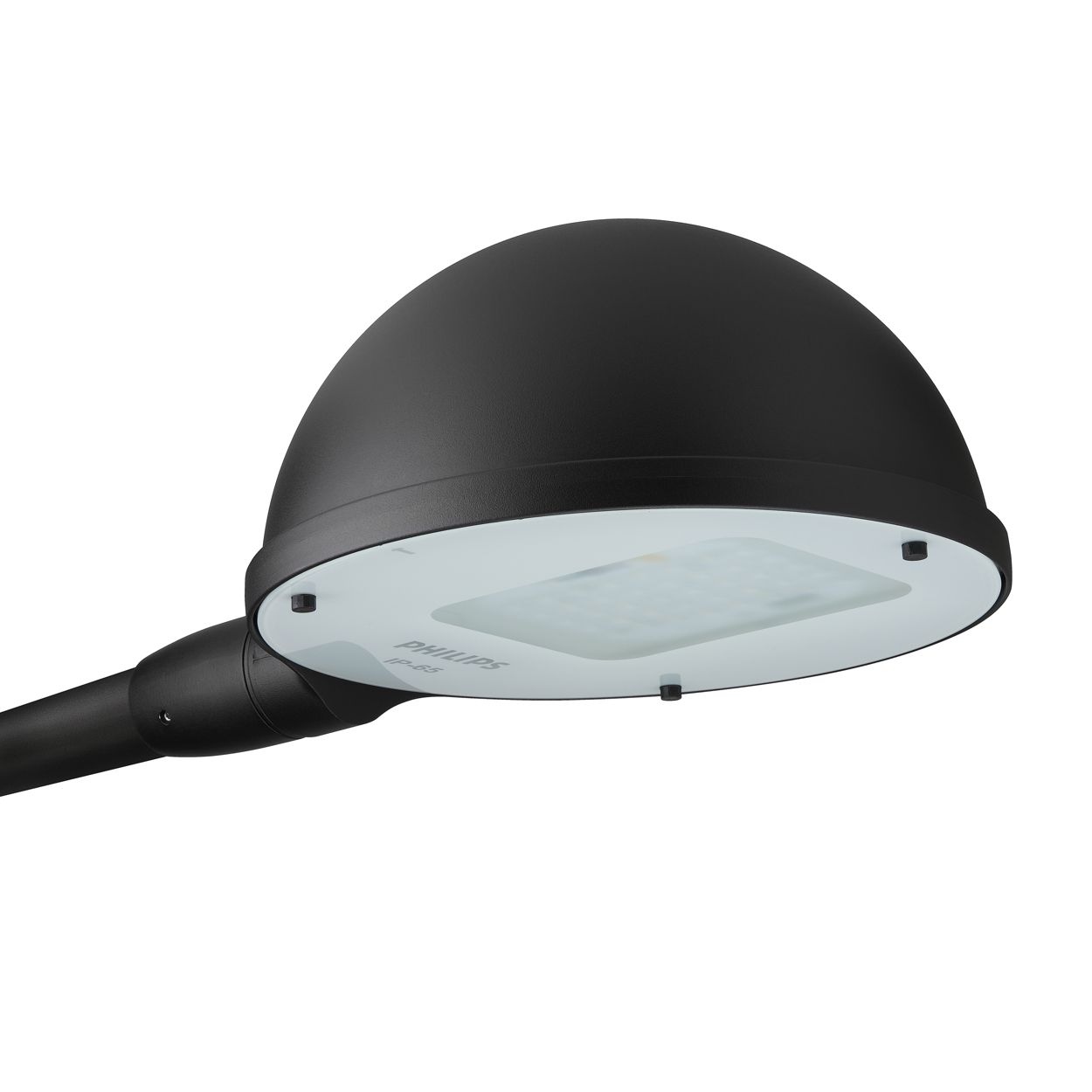

| Product Family Code | BRP776
[ QUEBEC LED] |
| Upward light output ratio | 0.03
|
| Standard tilt angle post-top | -
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Inrush current | 46
A
|
| Inrush time | 0.25
ms
|
| Power factor (min.) | 0.91
|
| Power factor (nom.) | 0.92
|
| Dimmable | Yes
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Polymethyl methacrylate
|
| Optical cover/lens material | Glass
|
| Fixation material | Aluminum
|
| Mounting device | No
[ -] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Frosted
|
| Overall height | 388
mm
|
| Overall diameter | 472
mm
|
| Effective projected area | 0.094
m²
|
| Ingress protection code | IP65
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK08
[ 5 J vandal-protected] |
| Surge protection (common/differential) | Philips standard surge protection level
kV
|
| Initial luminous flux | 2550
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 104
lm/W
|
| Init. Corr. colour temperature | 3000
K
|
| Init. colour rendering index | >80
|
| Initial chromaticity | (0.410, 0.390) SDCM <5
|
| Initial input power | 24.5
W
|
| Power consumption tolerance | +/-11%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L96
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Full product code | 871869908988700
|
| Order product name | BRP776 LED30-4S/830 PSR DM50 FR BK D11 5
|
| EAN/UPC – product | 8718699089887
|
| Order code | 08988700
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 912300023478
|
| Net weight (piece) | 6.175
kg
|
