| Number of light sources | 1
[ 1 pc] |
| Lamp family code | LED55
[ LED module 5500 lm] |
| Lamp version | 3S
[ 3rd generation, screw fixation] |
| Light source colour | 740 neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSR
[ Power supply unit regulating] |
| Driver included | Yes
|
| Optical cover/lens type | FG
[ Flat glass] |
| Luminaire light beam spread | 160°
|
| Embedded control | DDF3
[ DynaDimmer with fixed presets version 3] |
| Control interface | Analog
|
| Light regulation | -
|
| Connection | SI
[ Screw connection block] |
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Coating | -
|
| Glow-wire test | 960/5
[ Temperature 960 °C, duration 5 s] |
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium
|
| RAL colour | Light gray (7035)
|
| Photocell | No
[ -] |
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Number of products on MCB | 11
|
| RoHS mark | -
|
| WEEE mark | -
|
| LED engine type | LED
|

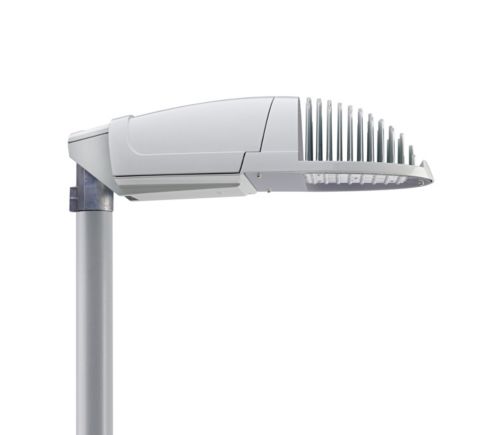

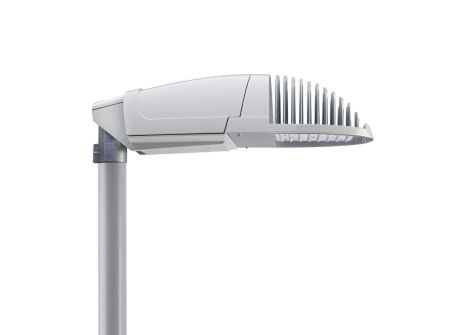

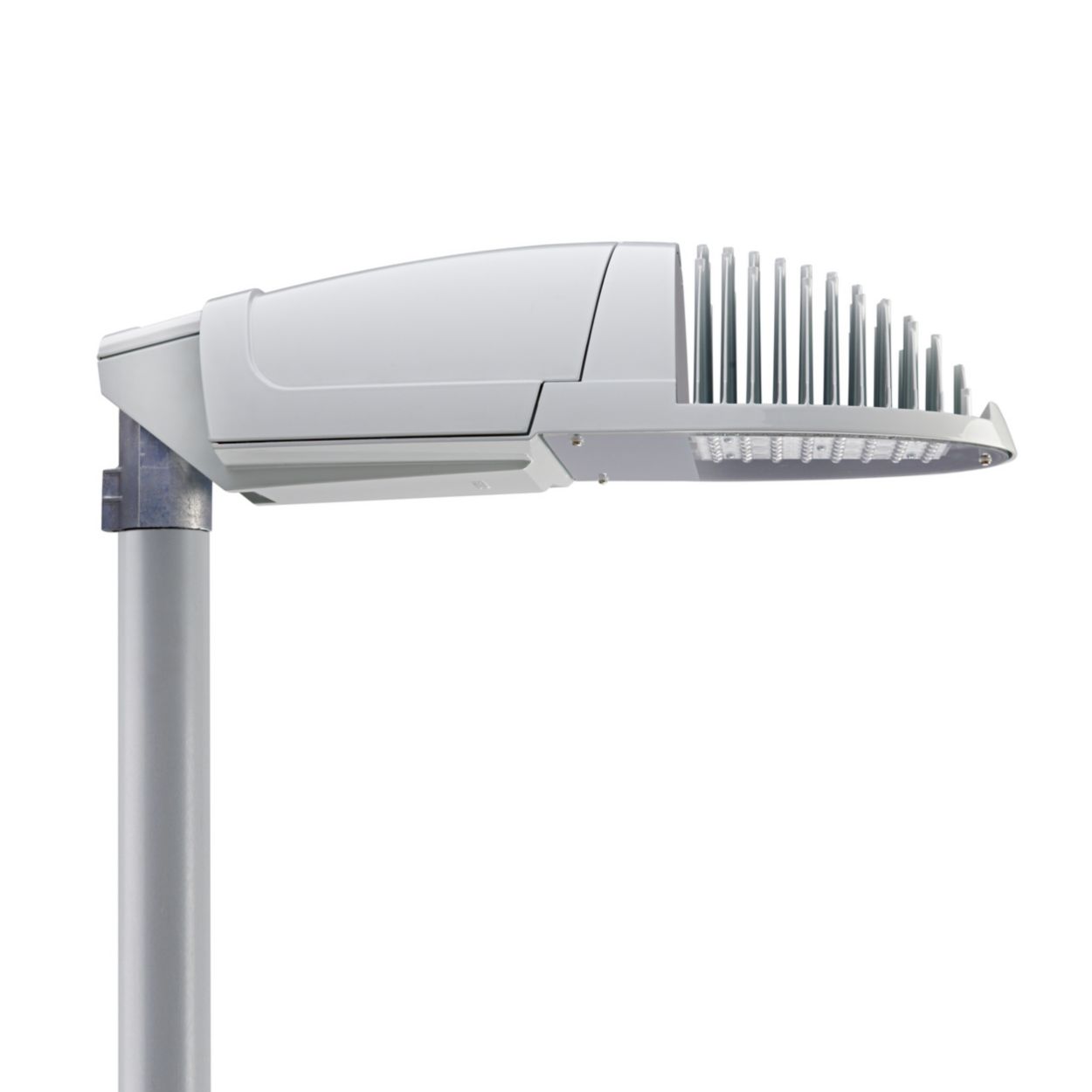

| Product Family Code | BGP340
[ Selenium LED] |
| Upward light output ratio | 0
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220-240
V
|
| Input frequency | 50 to 60
Hz
|
| Control signal voltage | 1-10 V DC
|
| Inrush current | 80
A
|
| Inrush time | 150
ms
|
| Power factor (min.) | 0.9
|
| Power factor (nom.) | 0.95
|
| Dimmable | Yes
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Glass
|
| Optical cover/lens material | Glass
|
| Fixation material | Stainless steel
|
| Mounting device | 48/60
[ Universal for diameter 48-60 mm] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Clear
|
| Torque | 15
|
| Overall length | 750
mm
|
| Overall width | 320
mm
|
| Overall height | 210
mm
|
| Effective projected area | 0.07
m²
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK08
[ 5 J vandal-protected] |
| Surge protection (common/differential) | 6/4
kV
|
| Initial luminous flux | 4792
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 109
lm/W
|
| Init. Corr. colour temperature | 4000
K
|
| Init. colour rendering index | ≥70
|
| Initial chromaticity | (0.380, 0.370) SDCM <3
|
| Initial input power | 44
W
|
| Power consumption tolerance | +/-11%
|
| Control gear failure rate at median useful life 75000 h | 7.5
%
|
| Lumen maintenance at median useful life* 75000 h | L80
|
| Ambient temperature range | -30 to +45 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | 10%
|
| Full product code | 871829106388900
|
| Order product name | BGP340 LED55--3S/740 PSR I DM DDF3 48/60
|
| EAN/UPC – product | 8718291063889
|
| Order code | 06388900
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910925438588
|
| Net weight (piece) | 12.000
kg
|
