| Number of light sources | 8
[ 8 pcs] |
| Lamp family code | LED60
[ LED module 6000 lm] |
| Light source colour | 830 warm white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSDD-CLO
[ Power supply unit with DynaDimmer and constant light output (integrated)] |
| Driver included | Yes
|
| Optical cover/lens type | PCC
[ Polycarbonate bowl/cover clear] |
| Luminaire light beam spread | 53° x 71°
|
| Embedded control | CLO-DDF2
[ Constant light output and DynaDimmer fixed presets version 2] |
| Control interface | -
|
| Light regulation | Dimming via DynaDimmer integrated in ballast or driver
|
| Cable | -
|
| Protection class IEC | Safety class II (II)
|
| Parts colour | All parts colored
|
| Coating | -
|
| Glow-wire test | 650/5
[ Temperature 650 °C, duration 5 s] |
| Flammability mark | NO
[ -] |
| Safety device | PCBC
[ PCB cover] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium
|
| Photocell | No
[ -] |
| Constant light output | Yes
|
| Number of products on MCB | 10
|
| RoHS mark | RoHS mark
|
| WEEE mark | -
|
| LED engine type | LED
|

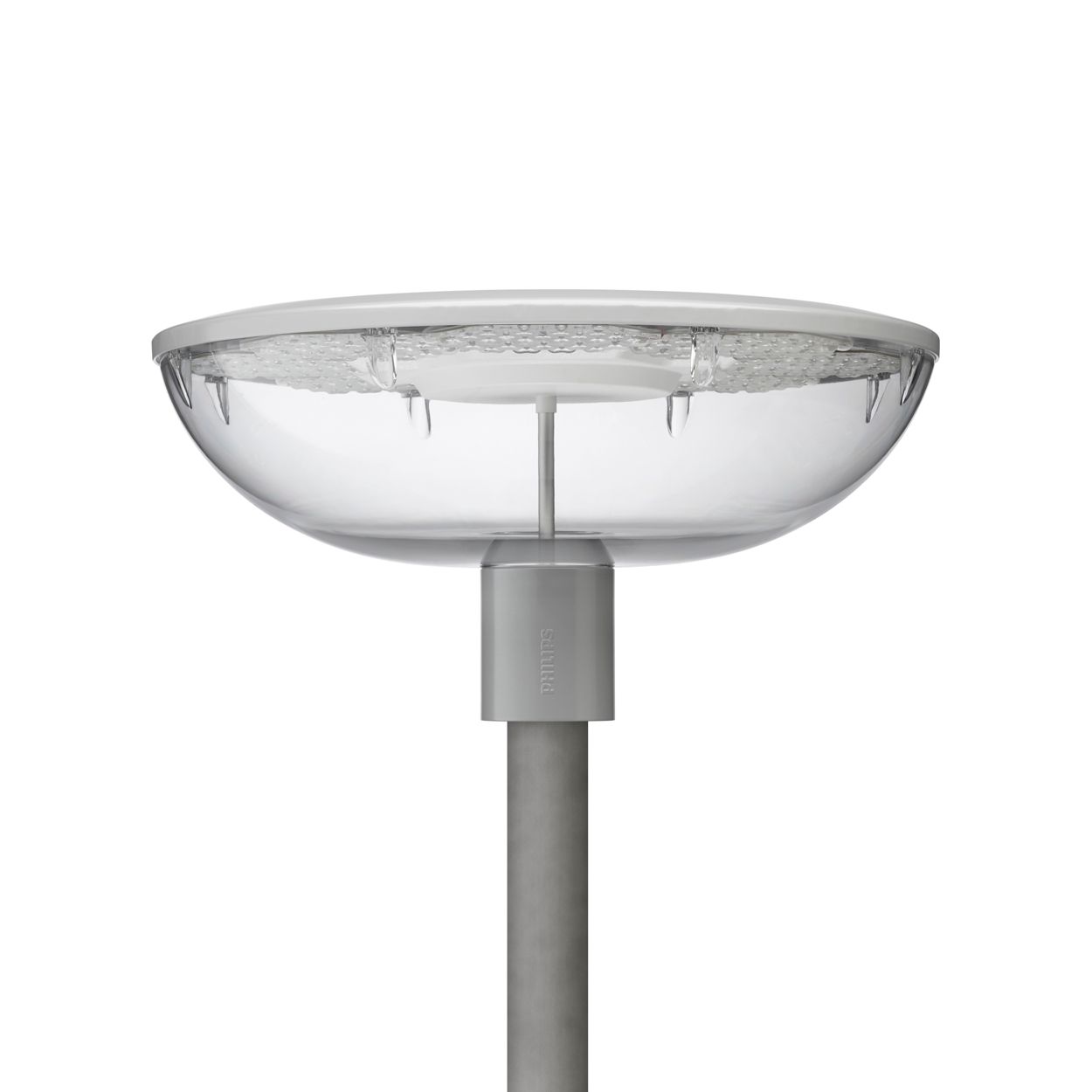

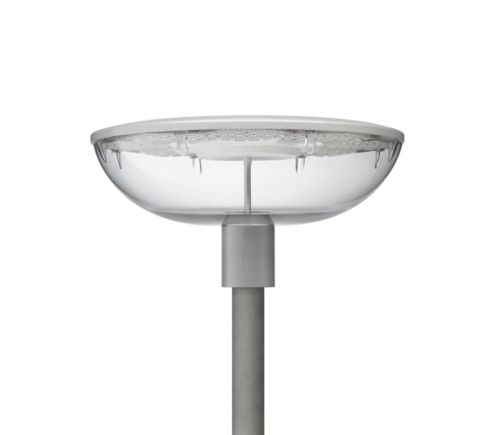

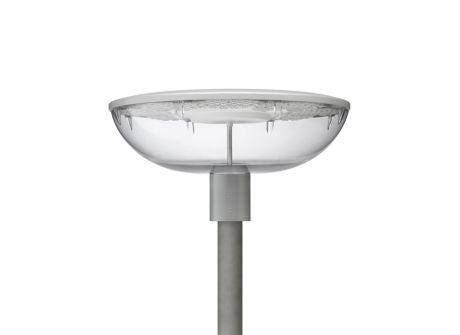

| Product Family Code | BDP101
[ TOWNGUIDE PERF BOWL] |
| Upward light output ratio | 3
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | -
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Initial CLO power consumption | 44
W
|
| Average CLO power consumption | 45.5
W
|
| End CLO power consumption | 46.5
W
|
| Inrush current | 45
A
|
| Inrush time | 0.285
ms
|
| Power factor (min.) | 0.97
|
| Power factor (nom.) | 0.88
|
| Dimmable | Yes
|
| Housing material | Aluminum
|
| Reflector material | -
|
| Optic material | Acrylate
|
| Optical cover/lens material | Polycarbonate
|
| Fixation material | Steel
|
| Mounting device | 62P
[ Post-top for diameter 62 mm] |
| Optical cover/lens shape | Hemispherical
|
| Optical cover/lens finish | Clear
|
| Torque | 15
|
| Overall height | 293
mm
|
| Overall diameter | 570
mm
|
| Effective projected area | 0.095
m²
|
| Ingress protection code | IP66
[ Dust penetration-protected, jet-proof] |
| Mech. impact protection code | IK10
[ 20 J vandal-resistant] |
| Initial luminous flux | 4536
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 103
lm/W
|
| Init. Corr. colour temperature | 3000
K
|
| Init. colour rendering index | 80
|
| Initial chromaticity | (0.43, 0.40) SDCM <5
|
| Initial input power | 47
W
|
| Power consumption tolerance | +/-11%
|
| Ambient temperature range | -40 to +35 °C
|
| Full product code | 871829190613100
|
| Order product name | BDP101 LED60/830 II DM PCC SI CLO-DDF2 6
|
| EAN/UPC – product | 8718291906131
|
| Order code | 90613100
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 910500991014
|
| Net weight (piece) | 7.310
kg
|
