| Number of light sources | 30
[ 30 pcs] |
| Lamp family code | LED74
[ LED module 7400 lm] |
| Lamp version | 4S
[ 4th generation, screw fixation] |
| Light source colour | 740 neutral white
|
| Light source replaceable | Yes
|
| Number of gear units | 1 unit
|
| Driver/power unit/transformer | PSD
[ Power supply unit with DALI interface] |
| Driver included | Yes
|
| Optical cover/lens type | GF
[ Glass frosted] |
| Luminaire light beam spread | 30° - 5° x 153°
|
| Control interface | DALI
|
| Light regulation | Dimming via external communication DALI
|
| Connection | SCREW
[ Screw connector] |
| Cable | -
|
| Protection class IEC | Safety class I (I)
|
| Flammability mark | NO
[ -] |
| CE mark | CE mark
|
| ENEC mark | ENEC mark
|
| UL mark | -
|
| Warranty period | 5 years
|
| Outdoor optic type | Distribution medium 50
|
| Remarks | *-Per Lighting Europe guidance paper “Evaluating performance of LED based luminaires - January 2018”: statistically there is no relevant difference in lumen maintenance between B50 and for example B10. Therefore the median useful life (B50) value also represents the B10 value.
|
| Constant light output | No
|
| Spare parts available | Yes
|
| Number of products on MCB | 11
|
| RoHS mark | RoHS mark
|
| WEEE mark | WEEE mark
|
| LED engine type | LED
|

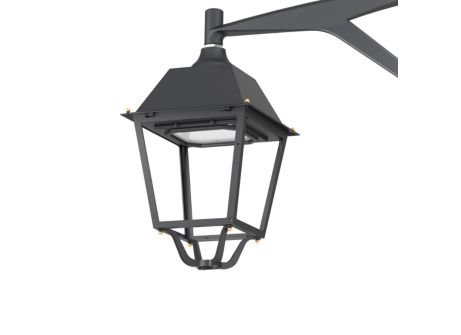

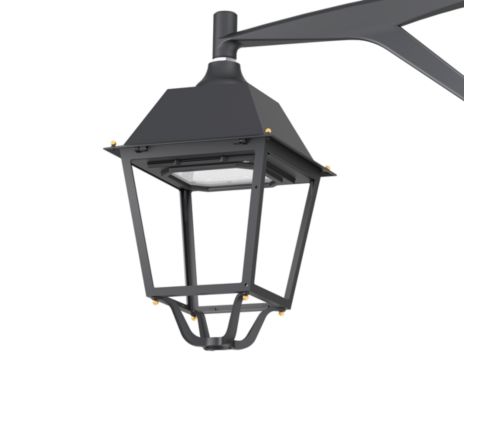

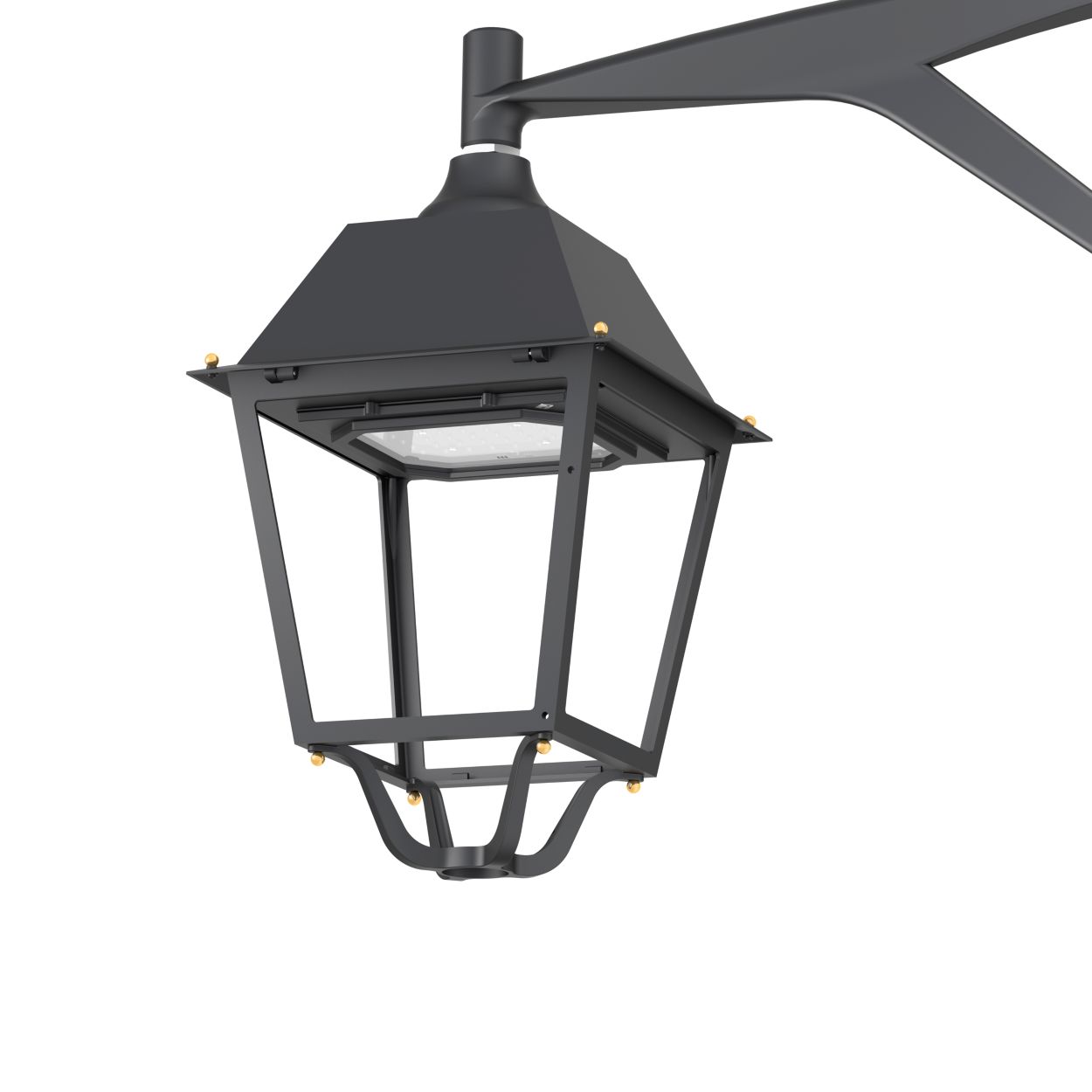

| Product Family Code | BDP765
[ VILLA LED] |
| Upward light output ratio | 0.03
|
| Standard tilt angle post-top | 0°
|
| Standard tilt angle side entry | 0°
|
| Input voltage | 220 to 240
V
|
| Input frequency | 50 to 60
Hz
|
| Inrush current | 46
A
|
| Inrush time | 0.25
ms
|
| Driver current | 563
mA
|
| Power factor (min.) | 0.78
|
| Power factor (nom.) | 0.96
|
| Dimmable | Yes
|
| Housing material | Aluminum
|
| Reflector material | Glass
|
| Optic material | Polymethyl methacrylate
|
| Optical cover/lens material | Glass
|
| Fixation material | Aluminum
|
| Mounting device | SMS
[ Suspension set simple, standard] |
| Optical cover/lens shape | Flat
|
| Optical cover/lens finish | Frosted
|
| Overall length | 440
mm
|
| Overall width | 440
mm
|
| Overall height | 771
mm
|
| Effective projected area | 0.26
m²
|
| Ingress protection code | IP44
[ Wire-protected, splash-proof] |
| Mech. impact protection code | IK09
[ 10 J] |
| Surge protection (common/differential) | Surge protection level until 10
kV
|
| Initial luminous flux | 5920
lm
|
| Luminous flux tolerance | +/-7%
|
| Initial LED luminaire efficacy | 123
lm/W
|
| Init. Corr. colour temperature | 4000
K
|
| Init. colour rendering index | ≥70
|
| Initial chromaticity | (0.381, 0.379) SDCM <5
|
| Initial input power | 48
W
|
| Power consumption tolerance | +/-11%
|
| Control gear failure rate at median useful life 100000 h | 10
%
|
| Lumen maintenance at median useful life* 100000 h | L92
|
| Ambient temperature range | -40 to +50 °C
|
| Performance ambient temperature Tq | 25 °C
|
| Maximum dimming level | 10%
|
| Full product code | 871869908982500
|
| Order product name | BSP765 LED74-4S/740 PSD DM50 GF BK D9
|
| EAN/UPC – product | 8718699089825
|
| Order code | 08982500
|
| Numerator – quantity per pack | 1
|
| Numerator – packs per outer box | 1
|
| Material no. (12NC) | 912300023472
|
| Net weight (piece) | 10.930
kg
|
