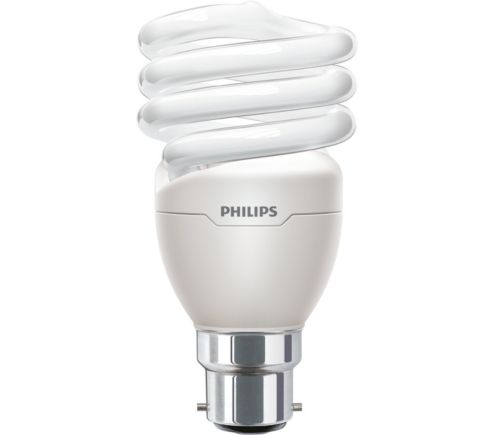

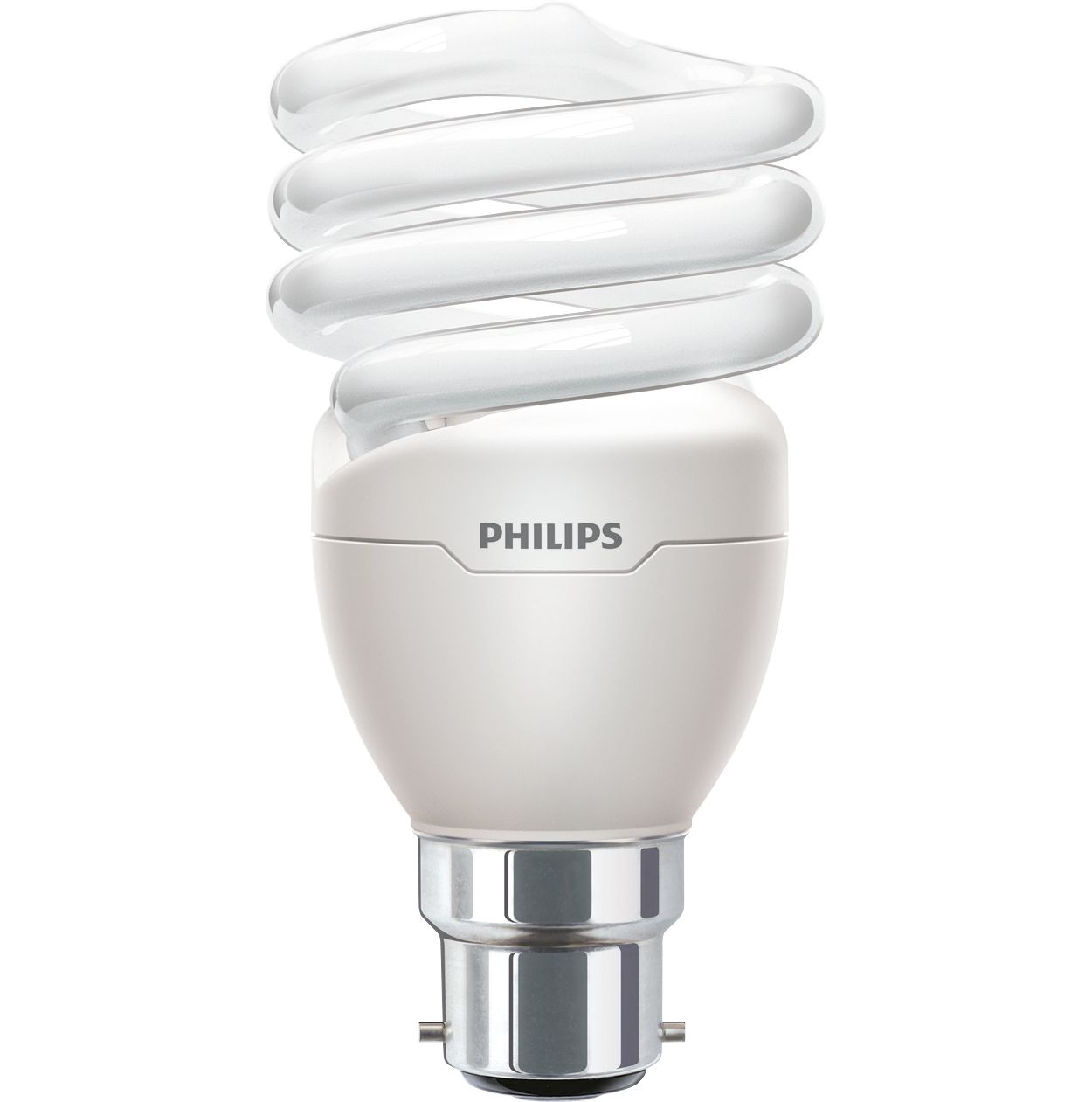

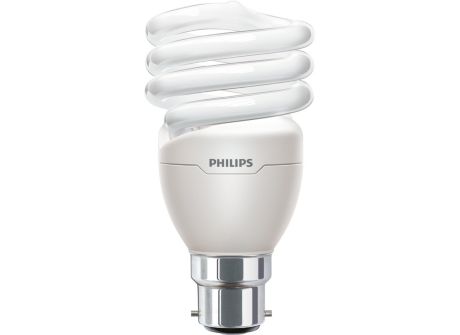

TornadoT2 8y 20W CDL B22 220-240V 1CT/12

Specifications Show all

General Information

Cap base	B22  [ B22]
Nominal lifetime (nom.)	8000 h
Switching cycle	5000X

Light Technical

Colour code	865  [ CCT of 6500K]
Luminous flux (nom.)	1200 lm
Luminous flux (rated) (nom.)	1200 lm
Colour designation	Cool Daylight
Lumen maintenance 2,000 hours (nom.)	85 %
Lumen maintenance 5,000 hours (nom.)	75 %
Chromaticity coordinate X (nom.)	313
Chromaticity coordinate Y (nom.)	337
Correlated colour temperature (nom.)	6500 K
Luminous efficacy (rated) (nom.)	61 lm/W
Color rendering index (nom.)	80
LLMF at end of nominal lifetime (nom.)	70 %

Operating and Electrical

Input frequency	50 or 60 Hz
Power (Rated) (Nom)	20 W
Lamp current (nom.)	150 mA
Wattage equivalent	88 W
Starting time (nom.)	0.3 s
Warm-up time to 60% light (min.)	5 s
Warm-up time to 60% light (max.)	60 s
Power factor (nom.)	0.6
Voltage (Nom)	220-240 V

Controls and Dimming

Dimmable

No

Approval and Application

Energy efficiency label (EEL)	A
Mercury (Hg) content (nom.)	1.5 mg
Energy Consumption kWh/1000 h	20 kWh

Product Data

Full product code	871869645050500
Order product name	TornadoT2 8y 20W CDL B22 220-240V 1CT/12
EAN/UPC – product	8718696450505
Order code	45050500
Numerator – quantity per pack	1
Numerator – packs per outer box	12
Material no. (12NC)	929689858406
Net weight (piece)	0.065 kg
